Temperature sensor Ts Te1 Tdef Tao THI THO Twi Two Tout2 Tai T-tank for Haier AQUA and SUPER AQUA Heat Pump 12m

Model: ACTii AC8612

EAN: 6931240086124 SKU: 861251826

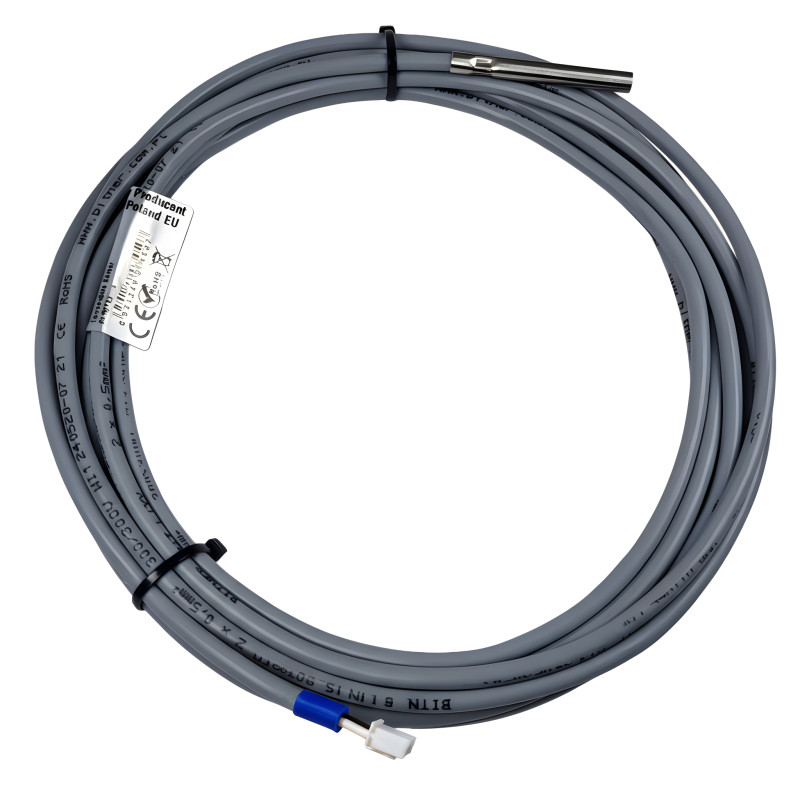

• High-quality precision temperature sensor
• Uses a specialized copper flexible control cable BiT LiYY 2x0.5mm, voltage: 300/300V, operating temperature: -40℃ to 80℃, compliant with EU standard: LVD 2014/35/EU
• Sensor housed in a sleeve with a diameter of 6mm and length of 50mm, made of stainless steel
• Each sensor is tested at 3 different temperatures to ensure measurement compliance with a reference sensor.
• Water protection - Sensor coated with high-temperature flexible silicone. Lack of airtightness is a common problem with temperature sensors, leading to damage from moisture.
• Our temperature sensors are characterized by higher quality. Unlike the competition, we use only 100% copper thick certified control cable produced in the EU with thick and flexible insulation. We use branded sensors. Each sensor is checked by us for measurement compliance with a reference sensor.
• Sensor finished with a connector that fits the socket on the mainboard of the heat pump. Connecting the sensor only requires plugging it into the appropriate place on the mainboard.

Description

Temperature sensor Ts, Te1, Tdef, Tao, THI, THO, Twi, Two, Tout2, Tai, T-tank, T-tank2, designed for Haier heat pumps

Sensor designed for all Haier AQUA and SUPER AQUA series heat pumps

Sensor finished with a connector that fits the socket on the mainboard of the heat pump. Connecting the sensor only requires plugging it into the appropriate place on the mainboard.

Lack of airtightness is a common problem with temperature sensors, leading to damage from moisture. Our sensors provide water protection - the sensor is coated with high-temperature flexible silicone.

Compatibility list:

Ts: Compressor suction temperature (operation monitoring)

Te1/ Tdef: Exchanger defrost temperature (defrost)

Tao: Ambient temperature (weather sensor)

THI : Refrigerant temperature at exchanger inlet

THO : Refrigerant temperature at exchanger outlet

Twi : Water temperature at exchanger inlet

Two : Water temperature at exchanger outlet

Tout2: Refrigerant gas line temperature

Tai: Refrigerant liquid line temperature

T-tank / T-tank2: Buffer/DHW tank temperature (top/bottom)

Specification

Sensor parameters

Sensor compatible with Haier AQUA and SUPER AQUA series

Purpose: Haier heat pumps

Compatibility list: Ts, Te1, Tdef, Tao, THI, THO, Twi, Two, Tout2, Tai, T-tank, T-tank2

Sensor measuring range: from -40 to +400 °C

Ingress protection: IP68

Sensor housed in a sleeve with a diameter: 6mm and length: 50mm, made of stainless steel

Cable termination: Plastic connector fitting the socket on the heat pump mainboard.

Cable length: 12m (472 inches)

Cable parameters

Cable type: Control / signaling cable

Operating voltage: 300/300V

Voltage test: ≤ 0.34mm2 1200 V , ≥ 0.5 mm2 1500 V

Insulation resistance: 20 MΩ x km

Capacitance: (at 800Hz): 0.14mm2 120pF/m, ≥0.25 mm2 150pF/m

Inductance: 0.65 mH/km

Min. bending radius flexible connection: 7.5 x Ø

Min. bending radius fixed connection: 4 x Ø

Operating temperature: Fixed installation: -40℃ to 80℃ , Flexible installations: -5℃ to 80℃

Laying conditions: Indoor cable, Min. laying temperature: -5℃

Environmental resistance: Flame retardant on a single cable

Certificates / Approvals: CPR - Certificates / DoP

Cable construction:

Conductor material: Copper conductors

Working core structure: Cl.5 (acc. to EN 60228, IEC 60228)

Core structure: multi-core cable

Application: Cables intended for control and signaling circuits in industrial applications, in measurement technology, and for data transmission via analog and digital signals in industrial electronics and automation installations. For fixed installation and for mobile devices. Suitable for use in indoor installations, in dry and damp rooms.

Other information

We offer temperature sensors with other cable lengths

Kit contents

Temperature sensor with a 12m long cable

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 50 x 200 x 200 mm (D x W x H)

Packaging dimensions: 100 x 200 x 50 mm (D x W x H)

Product weight: 250 g

Weight with packaging: 260 g
