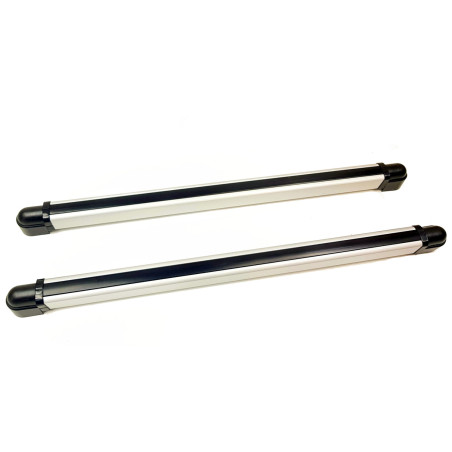

Outdoor Detector Photoelectric IR Barrier 4 Beams 30m ACTii AC1518
zł238.57
Tax included
Delivery within 3-4 days.
Four-beam photoelectric infrared barrier, designed for indoor and outdoor applications. It consists of a separate transmitter and receiver. The alarm is activated when the beam between the transmitter and receiver is interrupted.
The infrared barrier system is designed to trigger an alarm when an intruder intends to enter a room, while still remaining outside the facility.
The curtain consists of several active infrared barriers (paths) that create invisible grids in the window or door recess. Any attempt to violate this grid triggers an immediate alarm signal.
Infrared curtains are also used to protect controlled passages, gates, fences, valuable objects in open spaces, etc. In museums, infrared curtains successfully serve as a conflict-free, discreet fence separating the viewer from valuable exhibits.
Outdoor Detector Photoelectric IR Barrier 4 Beams 30m
Model: ACTii AC1518
EAN: 6931240015186 SKU: 151819046
- Four infrared beams.
- Tamper protection.
- Solid construction, aesthetic appearance
- Range 30m
Description
Four-beam photoelectric infrared barrier, designed for indoor and outdoor applications. It consists of a separate transmitter and receiver. The alarm is activated when the beam between the transmitter and receiver is interrupted.
The infrared barrier system is designed to trigger an alarm when an intruder intends to enter a room, while still remaining outside the facility.
The curtain consists of several active infrared barriers (paths) that create invisible grids in the window or door recess. Any attempt to violate this grid triggers an immediate alarm signal.
Infrared curtains are also used to protect controlled passages, gates, fences, valuable objects in open spaces, etc. In museums, infrared curtains successfully serve as a conflict-free, discreet fence separating the viewer from valuable exhibits.
Specification
Parameters
Protection type: Interruption of two infrared light beams
Light source: Infrared diodes
Response speed: <0.1sec
Synchronous and asynchronous operating mode
Beam
Beam direction: Vertical 90°, Horizontal 180°
Outdoor barrier range: 30m (10-30m)
Indoor barrier range: 60m (10-60m)
Number of infrared beams: 4
Stream characteristics: Transmission encoding
Interruption period (beam violation): 40 ... 1000 ms
Alarm output
Adjustable: normally open or closed (NO or NC)
Relay contact rating: AC DC 30V 0.5A max
Weather conditions
Frost or fog: Ultrasonic waves implemented in the device allow the device to operate correctly
Operating temp.: From -20° to +55°C
Tamper protection
YES, Transmitter and receiver have tamper protection; an alarm can be triggered when trying to remove the housing.
Power supply
Acceptable supply voltage: DC 10.5V~18V
Power consumption: 85mA
Set contents
Transmitter.
Receiver.
Mounting pins and screws.
User manual
Box.
Certificates and standards
CE, RoHS
Dimensions, Weight
Product dimensions: 45 x 710 x 45 mm (D x W x H)
Package dimensions: 70 x 800 x 50 mm (D x W x H)
Product weight: 550 g
Weight with packaging: 619 g
Zum Download
151819046
2 Items
Specific References
- EAN13
- 6931240015186
