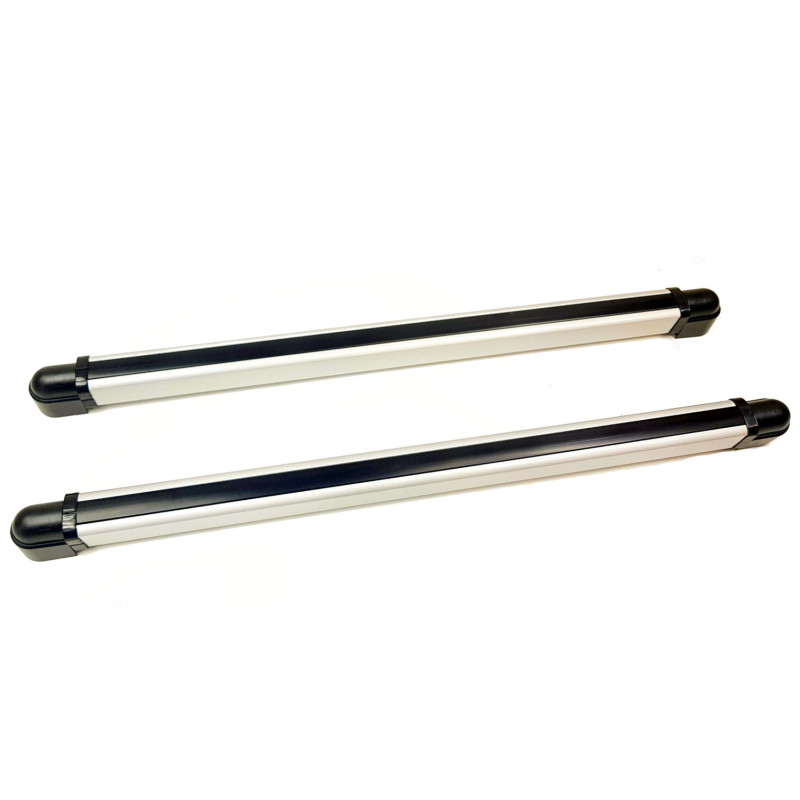

External Detector, Photoelectric IR Infrared Barrier, 4 beams, 30m ACTii AC1518
zł238.57
Tax included
Dostawa w ciągu 1-2 dni.
Four-beam photoelectric infrared barrier designed for indoor and outdoor use. It consists of a separate transmitter and receiver. The alarm is triggered when the beam between the transmitter and receiver is interrupted.
The system based on infrared barriers is designed to trigger an alarm when an intruder is about to enter the premises, while still being outside the facility.
The curtain consists of several active infrared barriers (tracks) that form an invisible grid in the window or door recess. Any attempt to breach this grid causes immediate activation of the alarm signaling.
Infrared curtains are also used to protect controlled passages, gates, fences, valuable objects in open spaces, etc. In museums, infrared curtains successfully serve as a non-intrusive, discreet barrier to keep viewers away from valuable exhibits.
External Detector, Photoelectric IR Infrared Barrier, 4 beams, 30m
Model: ACTii AC1518
EAN: 6931240015186 SKU: 151819046
- Four infrared beams.
- Tamper protection.
- Solid construction, aesthetic design
- Range 30m
Description
Four-beam photoelectric infrared barrier designed for indoor and outdoor use. It consists of a separate transmitter and receiver. The alarm is triggered when the beam between the transmitter and receiver is interrupted.
The system based on infrared barriers is designed to trigger an alarm when an intruder is about to enter the premises, while still being outside the facility.
The curtain consists of several active infrared barriers (tracks) that form an invisible grid in the window or door recess. Any attempt to breach this grid causes immediate activation of the alarm signaling.
Infrared curtains are also used to protect controlled passages, gates, fences, valuable objects in open spaces, etc. In museums, infrared curtains successfully serve as a non-intrusive, discreet barrier to keep viewers away from valuable exhibits.
Specification
Parameters
Type of protection: Interruption of two infrared light beams
Light source: Infrared diodes
Response speed: <0.1sec
Synchronous and asynchronous operation mode
Beam
Beam direction: Vertical 90°, Horizontal 180°
Outdoor barrier range: 30m (10-30m)
Indoor barrier range: 60m (10-60m)
Number of infrared beams: 4
Beam characteristics: Transmission encoding
Interruption period (beam breach): 40 ... 1000 ms
Alarm output
Adjustable: normally open or closed (NO or NC)
Switching contact rating: AC DC 30V 0.5A max
Weather conditions
Frost or fog: Ultrasonic waves implemented in the device allow it to operate correctly
Operating temp.: From -20° to +55°C
Tamper protection
YES, Transmitter and receiver have tamper protection; an alarm can be triggered upon attempt to remove the housing.
Power supply
Acceptable supply voltage: DC 10.5V~18V
Power consumption: 85mA
Set contents
Transmitter.
Receiver.
Mounting pins and screws.
User manual
Box.
Certificates and standards
CE, RoHS
Dimensions, Weight
Product dimensions: 45 x 710 x 45 mm (Depth x Width x Height)
Package dimensions: 70 x 800 x 50 mm (Depth x Width x Height)
Product weight: 550 g
Weight with packaging: 619 g
