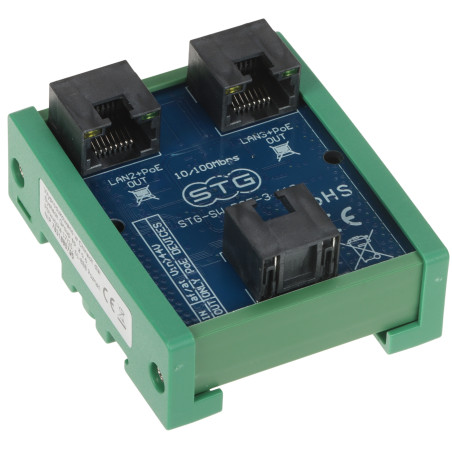

3-port PoE Switch Extender LAN and Power Signal Splitter 10/100 Mbps DIN Rail Mount STG STG-SW-POE-3-110
zł190.65
Tax included
STG-SW-POE-3-110 is an advanced network device that combines the functionality of a standard PoE switch and an efficient signal extender. It has been designed for professional IP monitoring systems and extensive local networks where the distance between the access point and the end device exceeds the standard 100 meters. Thanks to its innovative design, this switch is powered directly from a single input port (LAN+POE1), which eliminates the need for additional power cabling at the installation site.
The device allows power to be passed to the remaining two output ports, which in practice enables the connection of two independent IP cameras or other PoE receivers at a total distance of up to 200 meters. This is an ideal solution in situations where installing additional power outlets is difficult or costly. The extender regenerates the network signal, ensuring stable data transmission at 10/100 Mbps without quality loss.
The main advantages of the product are its versatility and compact dimensions. The housing made of durable plastic protects the electronics, and the well-thought-out mounting system allows for hanging the device or installing it on a standard DIN-35 mm rail. The product supports a wide range of standards, including IEEE 802.3af, IEEE 802.3at, and Passive PoE, making it compatible with most network devices available on the market. An additional advantage is the sequential PoE OUT startup function, which protects the system against sudden load spikes when starting devices.
By choosing the STG-SW-POE-3-110, you gain a reliable tool that significantly simplifies network architecture, reduces installation costs, and increases the flexibility of camera placement in CCTV systems. This is a professional solution for installers who value quality, efficiency, and time savings. The device is characterized by very low power consumption and high resistance to harsh operating conditions in a wide temperature range.
3-port PoE Switch Extender LAN and Power Signal Splitter 10/100 Mbps DIN Rail Mount
Model: STG STG-SW-POE-3-110
EAN: 6931240075197 SKU: 931075194
- Power supply from a single PoE port (LAN+POE1)
- LAN/PoE extender function increasing range up to 200m
- Support for IEEE 802.3af/at and Passive PoE standards
- Compact dimensions allowing installation in small boxes
- DIN-35 mm rail mounting capability
- Sequential PoE OUT startup for system protection
- Daisy-chaining capability
- 10/100 Mbps network signal regeneration
Description
STG-SW-POE-3-110 is an advanced network device that combines the functionality of a standard PoE switch and an efficient signal extender. It has been designed for professional IP monitoring systems and extensive local networks where the distance between the access point and the end device exceeds the standard 100 meters. Thanks to its innovative design, this switch is powered directly from a single input port (LAN+POE1), which eliminates the need for additional power cabling at the installation site.
The device allows power to be passed to the remaining two output ports, which in practice enables the connection of two independent IP cameras or other PoE receivers at a total distance of up to 200 meters. This is an ideal solution in situations where installing additional power outlets is difficult or costly. The extender regenerates the network signal, ensuring stable data transmission at 10/100 Mbps without quality loss.
The main advantages of the product are its versatility and compact dimensions. The housing made of durable plastic protects the electronics, and the well-thought-out mounting system allows for hanging the device or installing it on a standard DIN-35 mm rail. The product supports a wide range of standards, including IEEE 802.3af, IEEE 802.3at, and Passive PoE, making it compatible with most network devices available on the market. An additional advantage is the sequential PoE OUT startup function, which protects the system against sudden load spikes when starting devices.
By choosing the STG-SW-POE-3-110, you gain a reliable tool that significantly simplifies network architecture, reduces installation costs, and increases the flexibility of camera placement in CCTV systems. This is a professional solution for installers who value quality, efficiency, and time savings. The device is characterized by very low power consumption and high resistance to harsh operating conditions in a wide temperature range.
Specification
Device type
PoE Switch / LAN Extender
Number of ports
3 RJ45 ports
Port configuration
1 x LAN + PoE IN (Port 1), 2 x LAN + PoE OUT (Ports 2 and 3)
PoE standards
IEEE 802.3af, IEEE 802.3at, Passive PoE
Transmission speed
10 / 100 Mbps (Fast Ethernet)
Maximum output power
40 W @ Passive PoE on LAN2 and LAN3 ports
Maximum total power
40 W (total power budget)
Input power
35 V ... 56 V DC (Passive PoE @ LAN 1) or 44 V ... 56 V DC (PoE 802.3af/at @ LAN 1)
LED signaling
LED indicators for LAN status and PoE power
Selected technical features
Daisy-chaining capability, LAN and power extender function, output voltage equal to input, sequential output startup
Housing
Plastic, white color
Operating temperature
-25 °C ... 50 °C
Mounting
On DIN-35 mm rail (64mm spacing in housing, 44mm without housing) or wall mounting
Software and operating logic
Unmanaged device operating in Plug & Play mode. Built-in control logic automatically detects connected devices compliant with IEEE 802.3af/at and Passive PoE standards. The lack of software configuration makes the switch resistant to system errors and interface freezes. Advanced power management algorithms implement the sequential PoE OUT startup function, which prevents overloading the main power supply when starting cameras. The device transparently transmits data packets, regenerating the electrical signal, which allows for stable operation at a distance of up to 200 meters without the need for additional amplifiers.
Contents
1x PoE Switch STG-SW-POE-3-110
1x Protective plastic housing
Dimensions, Weight
Product dimensions: 30 x 71 x 56 mm (D x W x H)
Packaging dimensions: 40 x 90 x 65 mm (D x W x H)
Product weight: 34 g
Weight with packaging: 70 g
