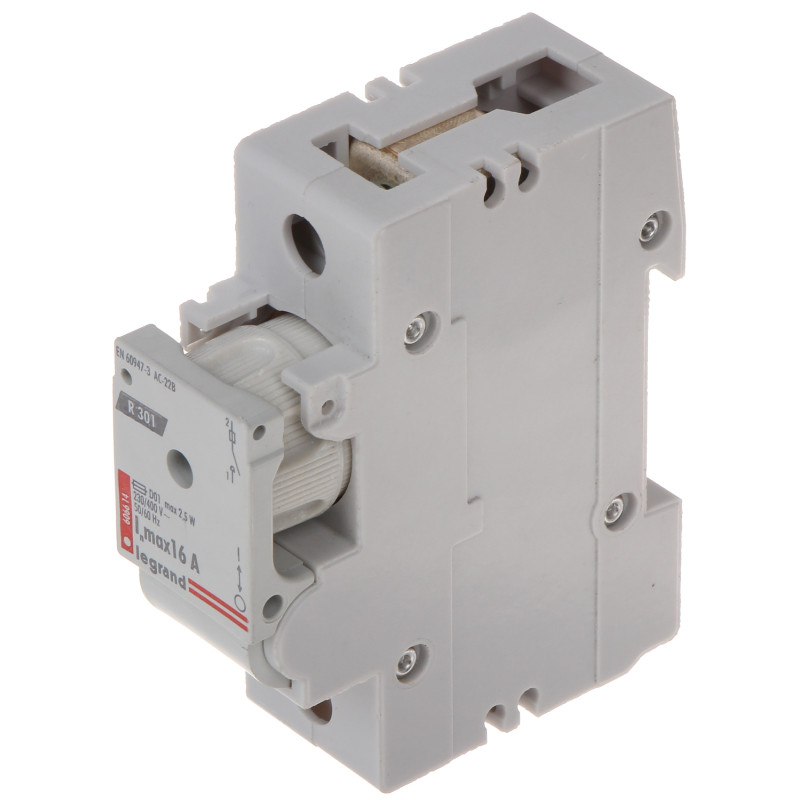

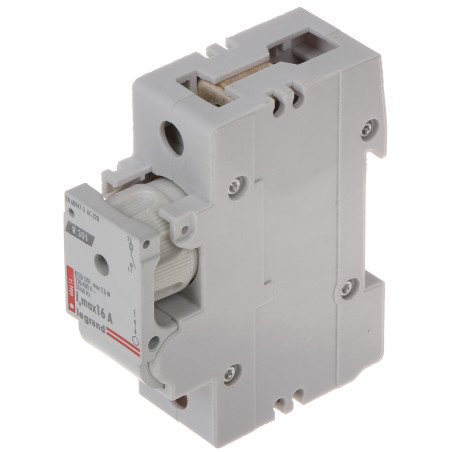

Single-phase fuse disconnector 16A D01 TH-35 rail insulating fuse LEGRAND LE-606614
zł192.41
Tax included
The LE-606614 fuse disconnector is an advanced electrical installation component, designed by the renowned manufacturer Legrand to ensure the highest level of safety in electrical installations. This device serves a dual role: it acts as an isolating switch and as a socket for D01 type fuse links. The main task of this module is to create a safe insulating gap in the circuit, which is crucial during service, maintenance, or emergency situations requiring immediate power disconnection. Thanks to its well-thought-out design, the disconnector allows for flexible selection of fuse links with a rated current adapted to the specifics of the protected circuit, with the maximum operating current for this model being 16A.
One of the key advantages of the product is its full compatibility with the standard TH-35 (DIN) mounting rail, which makes integration with modern electrical switchboards quick and trouble-free. The housing, made of high-quality, heat-resistant plastic, guarantees longevity and reliability even in difficult operating conditions. The device is factory-equipped with AD01 fuse link dummies, which protect the socket from dirt before the target fuses are installed. By choosing the LE-606614, you are investing in a product that meets rigorous safety standards, characterized by high short-circuit capacity and resistance to overvoltage, making it an ideal solution for single-family homes as well as industrial or office facilities.
Single-phase fuse disconnector 16A D01 TH-35 rail insulating fuse
Model: LEGRAND LE-606614
EAN: 6931240038734 SKU: 931038736
- Provides a safe insulating gap in electrical circuits
- Compatible with D01 type fuse links (up to 16A)
- Mounting on standard TH-35 (DIN) rail
- High rated short-circuit breaking capacity of 50,000 A
- Equipped with AD01 fuse link dummies for socket protection
- Wide operating temperature range from -26°C to +60°C
- Robust housing made of high-quality plastic
- Product from the renowned LEGRAND brand ensuring reliability
Description
The LE-606614 fuse disconnector is an advanced electrical installation component, designed by the renowned manufacturer Legrand to ensure the highest level of safety in electrical installations. This device serves a dual role: it acts as an isolating switch and as a socket for D01 type fuse links. The main task of this module is to create a safe insulating gap in the circuit, which is crucial during service, maintenance, or emergency situations requiring immediate power disconnection. Thanks to its well-thought-out design, the disconnector allows for flexible selection of fuse links with a rated current adapted to the specifics of the protected circuit, with the maximum operating current for this model being 16A.
One of the key advantages of the product is its full compatibility with the standard TH-35 (DIN) mounting rail, which makes integration with modern electrical switchboards quick and trouble-free. The housing, made of high-quality, heat-resistant plastic, guarantees longevity and reliability even in difficult operating conditions. The device is factory-equipped with AD01 fuse link dummies, which protect the socket from dirt before the target fuses are installed. By choosing the LE-606614, you are investing in a product that meets rigorous safety standards, characterized by high short-circuit capacity and resistance to overvoltage, making it an ideal solution for single-family homes as well as industrial or office facilities.
Specification
Device type
Single-phase insulating fuse disconnector
Rated current
16 A - maximum current load of the device
Number of poles
1-pole (1P) ensuring disconnection of one phase
Rated voltage
230 V / 400 V AC - alternating current at mains frequency
Rated insulation voltage
500 V - guarantees safety at high voltages
Rated impulse withstand voltage
6000 V - high resistance to atmospheric and switching overvoltages
Fuse type (size)
D01 - standard socket for fuse links
Rated short-circuit breaking capacity
50000 A AC - ability to safely interrupt short-circuit current
Connector type
Screw cable terminals with high clamping force
Conductor cross-section
Supports copper conductors with a cross-section from 2.5 mm² to 25 mm²
Environmental class
II - intended for operation in standard installation conditions
Housing and mounting
Self-extinguishing plastic, mounting on TH-35 bracket (DIN rail)
Width in modules
1.5 modules (standard 17.5 mm per module)
Operating temperature
Very wide range from -26 °C to 60 °C
Software
The device is fully mechanical and electrical; it does not have built-in software, a processor, or a digital interface. It operates on the principle of physical contact disconnection and fuse protection, which ensures the highest reliability without the risk of system errors or cyber threats. Operation is performed exclusively manually via a lever located on the front of the housing.
Contents
1x Fuse disconnector LE-606614
1x AD01 fuse link dummy
Dimensions, Weight
Product dimensions: 70 x 27 x 83 mm (D x W x H)
Packaging dimensions: 71 x 27 x 83 mm (D x W x H)
Product weight: 162 g
Weight with packaging: 162 g
