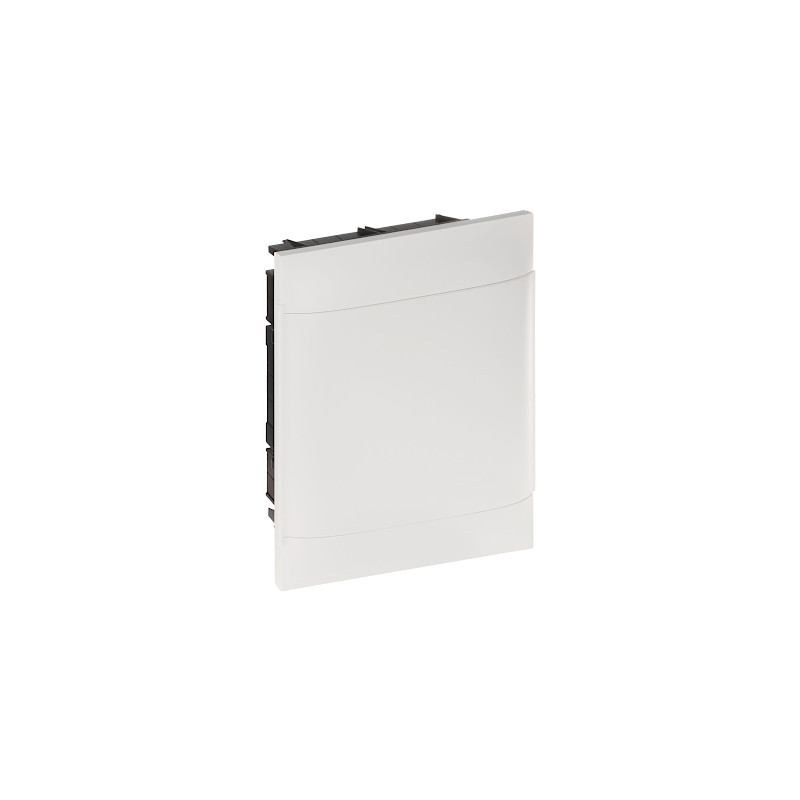

Flush mounted electrical distribution board 2-row 24-module IP40 white fuse box LEGRAND LE-135362
zł177.78
Tax included
The professional LEGRAND Practibox S electrical distribution board is an advanced solution designed for flush mounting in modern electrical installations. The product has been designed for maximum functionality and aesthetics, making it an ideal choice for both residential construction and commercial facilities. Thanks to its two-row design, the enclosure allows for the installation of up to 24 standard modules (12 in each row), ensuring clarity and ease of management for home automation or circuit protection.
One of the most important advantages of this model is the use of high-quality self-extinguishing plastic, which guarantees fire safety and structural durability. The innovative removable TH 35 rail system allows the installer to conveniently prepare all equipment outside the wall cavity, which significantly shortens working time and minimizes the risk of errors. Additionally, the distribution board features a reversible door, allowing it to be mounted to open to the left or right, adapting to the specific conditions of the installation site.
The white finish (RAL 9003) allows the distribution board to blend discreetly into the wall background without disrupting the interior decor. The IP40 protection rating effectively protects the interior from dust and access to hazardous parts, while the IK07 mechanical resistance class protects against accidental impacts. The set includes complete equipment, including terminal blocks, making the product ready for immediate use. By choosing the LEGRAND brand, you are investing in reliability confirmed by numerous certificates and European standards.
Flush mounted electrical distribution board 2-row 24-module IP40 white fuse box
Model: LEGRAND LE-135362
EAN: 6931240039427 SKU: 931039420
- Flush mounting for an aesthetic finish
- Capacity of 24 modules (2 rows of 12 modules)
- Removable TH 35 rail for easy equipment installation
- Reversible door (left/right opening)
- Made of safe self-extinguishing plastic
- High IP40 protection rating and IK07 impact resistance
- Set of terminal blocks included
- Compliance with rigorous IEC/EN standards
Description
The professional LEGRAND Practibox S electrical distribution board is an advanced solution designed for flush mounting in modern electrical installations. The product has been designed for maximum functionality and aesthetics, making it an ideal choice for both residential construction and commercial facilities. Thanks to its two-row design, the enclosure allows for the installation of up to 24 standard modules (12 in each row), ensuring clarity and ease of management for home automation or circuit protection.
One of the most important advantages of this model is the use of high-quality self-extinguishing plastic, which guarantees fire safety and structural durability. The innovative removable TH 35 rail system allows the installer to conveniently prepare all equipment outside the wall cavity, which significantly shortens working time and minimizes the risk of errors. Additionally, the distribution board features a reversible door, allowing it to be mounted to open to the left or right, adapting to the specific conditions of the installation site.
The white finish (RAL 9003) allows the distribution board to blend discreetly into the wall background without disrupting the interior decor. The IP40 protection rating effectively protects the interior from dust and access to hazardous parts, while the IK07 mechanical resistance class protects against accidental impacts. The set includes complete equipment, including terminal blocks, making the product ready for immediate use. By choosing the LEGRAND brand, you are investing in reliability confirmed by numerous certificates and European standards.
Specification
Mounting method
Flush mounted - designed for installation inside walls, allowing for complete concealment of the box and maintaining room aesthetics.
Number of mountable modules
24 modules (12 modules in each of the 2 rows), standard module width 17.5 mm.
Distance between TH 35 rails
150 mm - optimal space ensuring convenient cable routing between rows of equipment.
Door
Solid, white, opaque - made of durable plastic, providing protection and an aesthetic appearance.
TH 35 rail
Removable - a unique feature allowing the removal of mounting rails for easier equipment installation outside the enclosure.
Door opening direction
Reversible - the design allows for changing the door opening direction without the need to modify the enclosure.
Terminal blocks
Included - factory-supplied terminal blocks facilitating quick and safe connection of N and PE wires.
Detailed terminal equipment
1 piece: 9 x 16 mm² + 9 x 10 mm²; 2 pieces: 5 x 16 mm² + 5 x 10 mm² - wide range of cross-sections for various types of installations.
Material
Self-extinguishing plastic - material with increased fire resistance, non-flammable, increasing building safety.
Color scheme
White (RAL 9003) - universal color matching most modern interior finishes.
Ingress protection class
IP40 - provides protection against the ingress of solid objects larger than 1 mm, ideal for indoor applications.
Mechanical resistance class
IK07 - high resistance to mechanical impacts with energy up to 2 joules, protecting equipment from damage.
Compliance with standards
IEC/EN 60670-24, IEC/EN 62208, IEC/EN 61439-3 - full certification guaranteeing the highest electrical safety standards.
Operating temperature
Wide range from -10 °C to 60 °C, allowing for stable operation in various climatic conditions inside buildings.
Manufacturer warranty
2 years - full warranty protection provided by the renowned electrical equipment manufacturer LEGRAND.
Application
Low-voltage electrical installations, home automation systems, energy distribution in apartments and offices.
Contents
1x Flush mounted distribution board LE-135362
1x Set of terminal blocks (N/PE)
1x Set of mounting elements
1x User and installation manual
Dimensions, Weight
Product dimensions: 105 x 328 x 385 mm (D x W x H)
Packaging dimensions: 115 x 335 x 400 mm (D x W x H)
Product weight: 1340 g
Weight with packaging: 1810 g
