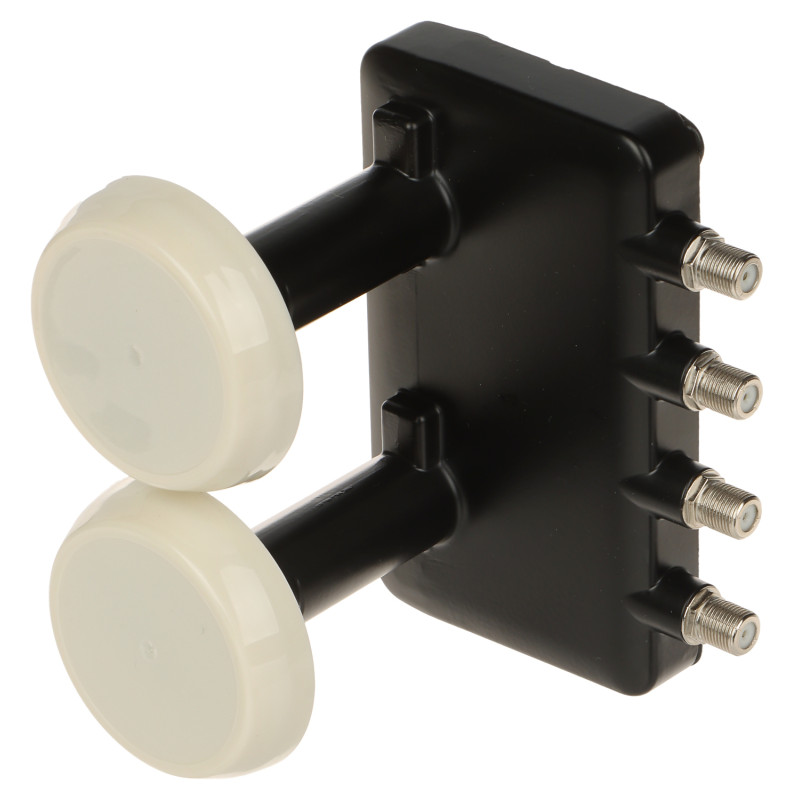

Monoblock Quad Satellite LNB 6 degrees 4 outputs Full HD 4K DiSEqC for 80cm antenna High Quality INVERTO KONW/MONOBLOCK-QUAD
zł284.68
Tax included
The INVERTO KONW/MONOBLOCK-QUAD satellite LNB is a professional solution for users seeking a reliable way to receive signals from the two most popular satellite positions in Europe: Hotbird 13°E and Astra 19.2°E. Thanks to the unique monoblock design with 6-degree spacing, installation becomes extremely simple – one device replaces two separate LNBs and an external switch, which significantly reduces costs and simplifies mounting on the antenna dish. This model is equipped with four independent outputs, allowing for the free connection of up to four satellite receivers or two Twin-type tuners (with PVR recording function). It is an ideal solution for single-family homes and apartments where the signal needs to reach several rooms simultaneously without loss of quality.
The greatest advantage of the Inverto LNB is its exceptional technical performance. A noise figure of just 0.2 dB guarantees that even during heavy rain or snowfall, the signal will remain stable and the image on the TV screen will not pixelate. The device is fully prepared to support the latest broadcasting standards, including 4K Ultra HD resolution and 3D technology, allowing you to enjoy the highest quality of detail and color depth. The built-in DiSEqC switch operates instantly and is compatible with almost every modern tuner available on the market.
The device's construction has been designed with the harsh weather conditions prevailing in Europe in mind. The hermetic housing and a special cover for F-type connectors effectively protect against moisture, preventing contact corrosion and extending the lifespan of the entire installation. Additionally, the high frequency stability of the oscillator means the LNB does not require frequent antenna adjustments. By choosing an Inverto brand product, you are opting for equipment from a renowned manufacturer that has been setting standards in satellite technology for years. It is an investment in peace of mind and the highest quality entertainment for the whole family for many years.
Monoblock Quad Satellite LNB 6 degrees 4 outputs Full HD 4K DiSEqC for 80cm antenna High Quality
Model: INVERTO KONW/MONOBLOCK-QUAD
EAN: 6931240074671 SKU: 931074673
- Monoblock Quad design for reception from two satellites (Astra + Hotbird)
- Four independent outputs for direct connection of 4 tuners
- Very low noise figure of 0.2 dB ensuring a stable signal
- Full support for Full HD and 4K Ultra HD standards
- Built-in DiSEqC switch for automatic satellite switching
- High frequency stability and high 55 dB gain
- Resistance to harsh weather conditions and hermetic housing
- Recommended for 80 cm diameter antennas
Description
The INVERTO KONW/MONOBLOCK-QUAD satellite LNB is a professional solution for users seeking a reliable way to receive signals from the two most popular satellite positions in Europe: Hotbird 13°E and Astra 19.2°E. Thanks to the unique monoblock design with 6-degree spacing, installation becomes extremely simple – one device replaces two separate LNBs and an external switch, which significantly reduces costs and simplifies mounting on the antenna dish. This model is equipped with four independent outputs, allowing for the free connection of up to four satellite receivers or two Twin-type tuners (with PVR recording function). It is an ideal solution for single-family homes and apartments where the signal needs to reach several rooms simultaneously without loss of quality.
The greatest advantage of the Inverto LNB is its exceptional technical performance. A noise figure of just 0.2 dB guarantees that even during heavy rain or snowfall, the signal will remain stable and the image on the TV screen will not pixelate. The device is fully prepared to support the latest broadcasting standards, including 4K Ultra HD resolution and 3D technology, allowing you to enjoy the highest quality of detail and color depth. The built-in DiSEqC switch operates instantly and is compatible with almost every modern tuner available on the market.
The device's construction has been designed with the harsh weather conditions prevailing in Europe in mind. The hermetic housing and a special cover for F-type connectors effectively protect against moisture, preventing contact corrosion and extending the lifespan of the entire installation. Additionally, the high frequency stability of the oscillator means the LNB does not require frequent antenna adjustments. By choosing an Inverto brand product, you are opting for equipment from a renowned manufacturer that has been setting standards in satellite technology for years. It is an investment in peace of mind and the highest quality entertainment for the whole family for many years.
Specification
Section 1: Input parameters
The input frequency range for the low band is from 10.7 GHz to 11.7 GHz, while for the high band it is from 11.7 GHz to 12.75 GHz. This allows for full coverage of the Ku band used in satellite transmissions.
Section 2: Output parameters
The output frequency (Intermediate Frequency) for the low band is in the range of 950 - 1950 MHz, and for the high band 1100 - 2150 MHz. The signal is delivered to the receiver using standard coaxial cables.
Section 3: Local oscillator
The LO oscillator frequency is 9.75 GHz for the low band and 10.6 GHz for the high band. High oscillator stability guarantees no signal drift and precise tuning.
Section 4: Noise characteristics
A noise figure of 0.2 dB (typical) is one of the best results on the market, allowing for the reception of weaker transponders without interference or digital transmission errors.
Section 5: Interfaces and connectors
The device has 4 independent F-type outputs with an impedance of 75 Ohm, which allows for the connection of four decoders or two dual-tuner PVRs.
Section 6: Control and switching
Uses the DiSEqC (Digital Satellite Equipment Control) protocol to switch between LNBs (satellites) and a 22 kHz signal to switch frequency bands.
Section 7: Gain parameters
The signal gain is 55 dB, which ensures an adequate signal level even with longer coaxial cable runs in a home installation.
Section 8: Power supply and current consumption
The LNB is powered by 13V (vertical polarization) or 18V (horizontal polarization) directly from the satellite tuner via the coaxial cable.
Section 9: Mechanical compatibility
The suggested dish size is 80 cm. The holder diameter is 23 mm, but the set includes an adapter allowing for mounting in 40 mm holders.
Section 10: Environmental conditions
The device operates in a wide temperature range from -30 °C to +60 °C, being fully resistant to frost, heat, and moisture thanks to its sealed housing.
Section 11: Supported standards
Full compliance with DVB-S, DVB-S2 broadcasting systems, Full HD images, and the latest Ultra HD 4K standard.
Section 12: Isolation and separation
High isolation between polarizations (minimum 22 dB) prevents signal overlap and guarantees stable reception of different transponders.
Section 13: Construction and housing
Solid, hermetic housing made of high-quality plastic with a sliding F-connector cover protects the connectors from corrosion and water.
Section 14: Certification and warranty
Product of the renowned INVERTO brand, covered by a full 2-year manufacturer's warranty (24 months).
Contents
1x Monoblock Quad LNB INVERTO
1x 40mm holder adapter
Dimensions, Weight
Product dimensions: 120 x 100 x 135 mm (D x W x H)
Packaging dimensions: 100 x 130 x 110 mm (D x W x H)
Product weight: 516 g
Weight with packaging: 650 g
