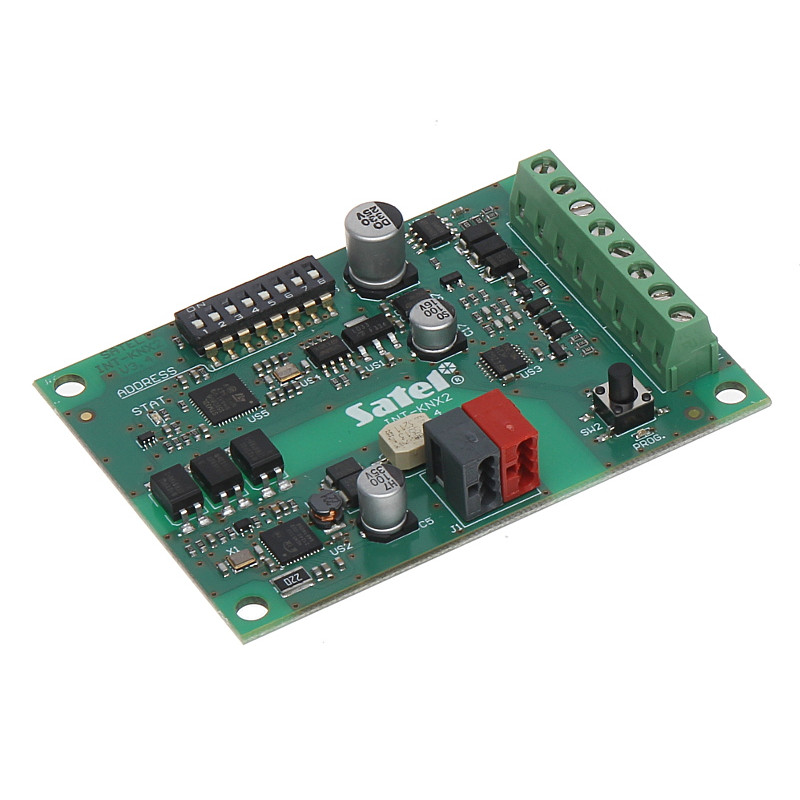

KNX communication interface for Integra Plus alarm control panels automation integration module SATEL INT-KNX-2
zł1,430.49
Tax included
The INT-KNX-2 communication interface is an advanced device dedicated to INTEGRA and INTEGRA Plus series alarm systems, enabling full and professional integration with building automation systems based on the global KNX standard. Thanks to this module, the SATEL alarm system ceases to be merely a property protection tool, becoming a central point for smart home management.
The main advantage of the device is the possibility of bidirectional communication. This means that events registered in the alarm system, such as detector violation, zone arming, or fault detection, can automatically trigger specific actions in the KNX system, for example, turning on lights, raising blinds, or changing heating parameters. On the other hand, KNX buttons, sensors, and touch panels can be used to conveniently control alarm system functions, which significantly increases the comfort of daily use.
The use of the INT-KNX-2 module allows for significant optimization of the entire installation costs, eliminating the need to duplicate motion detectors or window magnetic contacts. Information about the status of the control panel inputs is sent directly to the KNX bus, which allows them to be used by other devices in the network. The module is characterized by high reliability and simplicity of installation directly on the control panel communication bus. The device supports INTEGRA control panel software versions from 1.13 upwards, which ensures compatibility with modern installations. By choosing the INT-KNX-2, you are investing in a stable and future-proof system that combines the highest level of security with modern building automation.
KNX communication interface for Integra Plus alarm control panels automation integration module
Model: SATEL INT-KNX-2
EAN: 6931240020517 SKU: 931020511
- Cooperation with INTEGRA and INTEGRA Plus series control panels
- Bidirectional communication between the alarm system and the KNX bus
- Possibility to control the KNX system using INTEGRA keypads
- Transmission of information about the status of inputs and zones to the KNX system
- Support for a wide range of KNX communication objects
- Simple configuration using DLOADX software
- Support for the ETS engineering standard
- High energy efficiency and compact dimensions
Description
The INT-KNX-2 communication interface is an advanced device dedicated to INTEGRA and INTEGRA Plus series alarm systems, enabling full and professional integration with building automation systems based on the global KNX standard. Thanks to this module, the SATEL alarm system ceases to be merely a property protection tool, becoming a central point for smart home management.
The main advantage of the device is the possibility of bidirectional communication. This means that events registered in the alarm system, such as detector violation, zone arming, or fault detection, can automatically trigger specific actions in the KNX system, for example, turning on lights, raising blinds, or changing heating parameters. On the other hand, KNX buttons, sensors, and touch panels can be used to conveniently control alarm system functions, which significantly increases the comfort of daily use.
The use of the INT-KNX-2 module allows for significant optimization of the entire installation costs, eliminating the need to duplicate motion detectors or window magnetic contacts. Information about the status of the control panel inputs is sent directly to the KNX bus, which allows them to be used by other devices in the network. The module is characterized by high reliability and simplicity of installation directly on the control panel communication bus. The device supports INTEGRA control panel software versions from 1.13 upwards, which ensures compatibility with modern installations. By choosing the INT-KNX-2, you are investing in a stable and future-proof system that combines the highest level of security with modern building automation.
Specification
Device type
KNX communication interface
System compatibility
SATEL INTEGRA and INTEGRA Plus alarm control panels (software version v1.13 or newer required)
Communication characteristics
Full bidirectional data exchange between the alarm system and the KNX building automation bus
Supply voltage
12 V DC +/- 15% (powered from the control panel communication bus)
Current consumption
Typical current consumption is 40 mA, while maximum current consumption does not exceed 50 mA
Operating conditions
Ambient temperature from -10 °C to +55 °C; maximum air humidity 93% +/- 3% without condensation
Environmental class
Class II according to EN50130-5 standard
Electronics dimensions
Printed circuit board with dimensions 80 x 57 mm
Device weight
Net weight of the module is 30 grams
Supported KNX functions
Switching, dimming, blind control, temperature value transmission, scene calling, logic control
Integration with keypads
Possibility to control KNX devices directly from system keypads and the INTEGRA CONTROL mobile application
Mounting method
Connection to the alarm control panel communication bus using a dedicated cable
Manufacturer warranty
2 years (24 months)
Software
The module works with professional DLOADX configuration software and the ETS engineering standard. DLOADX software allows for precise mapping of inputs, outputs, and alarm system zone statuses to KNX communication objects. Thanks to this, the installer can easily define which alarm events should affect building automation. In the ETS environment, the module is visible as a standard bus device, which allows for full freedom in designing logical connections with other smart home elements, such as switching actuators, dimmers, or air conditioning controllers. The system ensures stability and security of data transmission.
Contents
1x INT-KNX-2 interface module
1x Bus connection cable
1x Installation and user manual
Dimensions, Weight
Product dimensions: 20 x 80 x 57 mm (D x W x H)
Packaging dimensions: 35 x 100 x 70 mm (D x W x H)
Product weight: 30 g
Weight with packaging: 70 g
