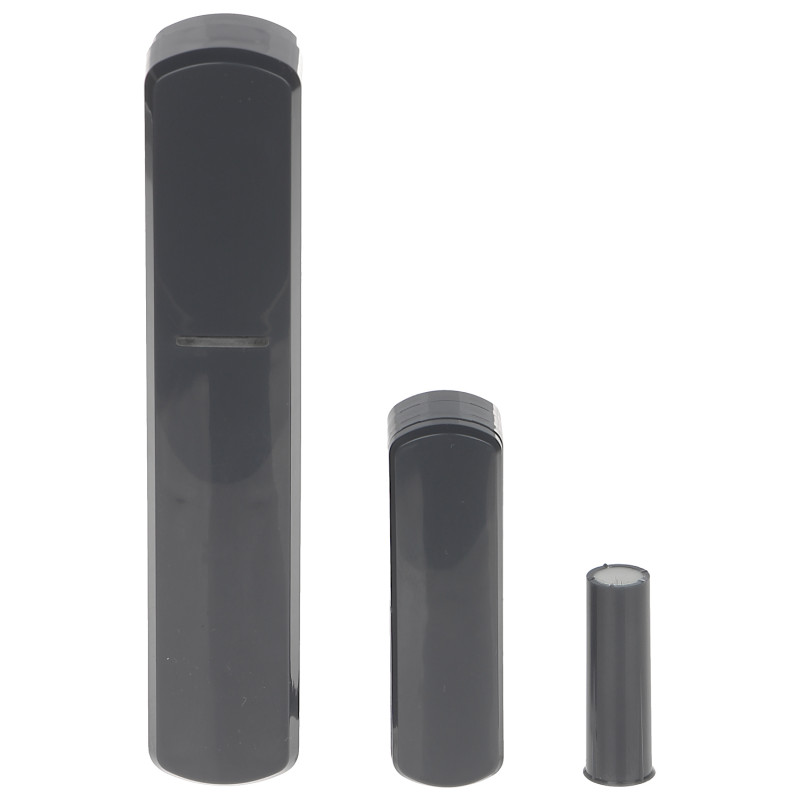

Wired universal magnetic shock and flood detector Grade 2 alarm graphite SATEL XD-2-DG
zł171.35
Tax included
The wired universal detector XD-2-DG by SATEL is an advanced device designed for maximum flexibility in security systems. Its unique design allows it to operate in one of four modes, making it an ideal solution for installers looking for versatile components. The device can act as a magnetic detector, a shock detector, a combined shock and reed switch detector, or a flood detector (when an optional FPX-1 probe is connected).
The product's advantages are numerous. First and foremost, compliance with the EN 50131 Grade 2 standard guarantees a high level of security, suitable for homes, offices, and commercial facilities. The compact housing in an elegant dark graphite color blends discreetly into modern interiors. The device is characterized by low power consumption (maximum 14 mA) and a wide operating temperature range from -10°C to +55°C. An additional benefit is the built-in LED for alarm signaling and advanced tamper protection, which reacts to the opening of the housing or the detachment of the device from the surface.
The XD-2-DG works with any alarm control panel, making it a universal element for retrofitting existing systems. The set includes two magnets – for surface and flush mounting, which facilitates adaptation to the specifics of door and window joinery. By choosing a SATEL brand product, you receive a guarantee of reliability and Polish technical expertise in the field of alarm systems. This 4-in-1 device allows you to reduce inventory costs and simplify installation planning while providing comprehensive perimeter and technical protection.
Wired universal magnetic shock and flood detector Grade 2 alarm graphite
Model: SATEL XD-2-DG
EAN: 6931240025734 SKU: 931025736
- 4 operating modes: magnetic, shock, magnetic-shock, flood
- Compliance with EN 50131 Grade 2 standard
- Compatible with any alarm control panel
- Built-in LED for alarm signaling
- Advanced tamper protection (opening and detachment)
- Low power consumption - maximum 14 mA
- Includes two magnets: surface-mounted and flush-mounted
- Wide operating temperature range from -10°C to +55°C
- Possibility to connect an external FPX-1 flood probe
- Elegant dark graphite housing
Description
The wired universal detector XD-2-DG by SATEL is an advanced device designed for maximum flexibility in security systems. Its unique design allows it to operate in one of four modes, making it an ideal solution for installers looking for versatile components. The device can act as a magnetic detector, a shock detector, a combined shock and reed switch detector, or a flood detector (when an optional FPX-1 probe is connected).
The product's advantages are numerous. First and foremost, compliance with the EN 50131 Grade 2 standard guarantees a high level of security, suitable for homes, offices, and commercial facilities. The compact housing in an elegant dark graphite color blends discreetly into modern interiors. The device is characterized by low power consumption (maximum 14 mA) and a wide operating temperature range from -10°C to +55°C. An additional benefit is the built-in LED for alarm signaling and advanced tamper protection, which reacts to the opening of the housing or the detachment of the device from the surface.
The XD-2-DG works with any alarm control panel, making it a universal element for retrofitting existing systems. The set includes two magnets – for surface and flush mounting, which facilitates adaptation to the specifics of door and window joinery. By choosing a SATEL brand product, you receive a guarantee of reliability and Polish technical expertise in the field of alarm systems. This 4-in-1 device allows you to reduce inventory costs and simplify installation planning while providing comprehensive perimeter and technical protection.
Specification
Device type
Wired universal detector
Mode 1 - Magnetic
Detection of door or window opening, NC input for an additional wired detector, 1 alarm output
Mode 2 - Shock
Detection of vibrations associated with forced entry attempts, range up to 3 m, NC input, 1 alarm output
Mode 3 - Magnetic-shock
Simultaneous detection of shocks and opening, NC input, 2 independent alarm outputs
Mode 4 - Flood
External FPX-1 probe required (available separately), water presence detection, 1 alarm output
Security grade
Grade 2 (according to EN 50131-2-6 standard)
Environmental class
II (according to EN 50130-5 standard)
Power supply
12 V DC (±15%)
Current consumption
Typical: 12 mA, Maximum: 14 mA
Alarm outputs
Relay NC, load capacity 40 mA / 24 V DC
Tamper protection
Tamper contact reacting to housing opening and detachment from the surface
Visual signaling
Red LED
Operating conditions
Temperature: -10 °C ... 55 °C, Humidity: up to 93 ±3%
Design and installation
Dark graphite color, sensor dimensions 20 x 102 x 23 mm, flush magnet Ø 10 x 28 mm
Software and logic
The device uses advanced digital signal processing algorithms for the piezoelectric sensor, which allows for effective filtering of accidental vibrations from actual burglary attempts. The operating mode configuration is done hardware-wise using jumpers on the electronics board, which guarantees setting stability without the risk of software errors. The built-in supply voltage monitoring mechanism constantly monitors input parameters, ensuring stable operation of the detector within the entire alarm system. No need for external software simplifies the installation process.
Contents
1x XD-2-DG detector
1x Surface-mount magnet
1x Flush-mount magnet
1x User manual
Dimensions, Weight
Product dimensions: 23 x 20 x 102 mm (D x W x H)
Package dimensions: 118 x 50 x 40 mm (D x W x H)
Product weight: 23 g
Weight with packaging: 62 g
