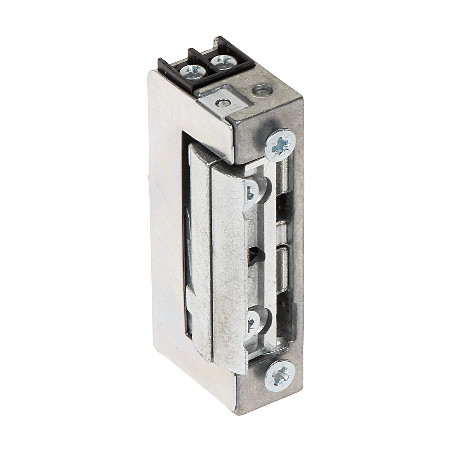

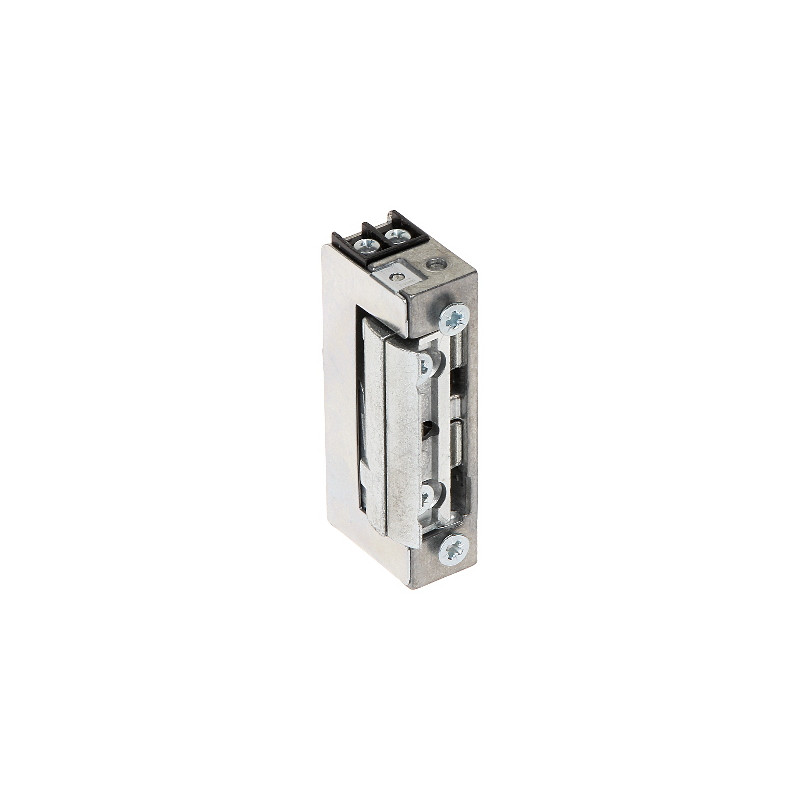

Fail-safe electric strike 24V DC narrow door and gate bolt with adjustable latch universal R5-24.13
zł168.53
Tax included
The professional electric strike model R5-24.13 is an advanced solution dedicated to access control, intercom, and video intercom systems. The device is characterized by operation in fail-safe mode, which means that in the absence of supply voltage, the bolt remains in the open position. This is a key feature in safety systems, ensuring free exit from the building in emergency situations or during power failures.
The design of the strike has been optimized for installation in narrow profiles and metal sections, making it an ideal choice for modern gates and office doors. Thanks to its symmetrical construction, the product is fully universal – it can be mounted in both left and right doors, which significantly facilitates the installation planning process. An additional advantage is the latch clearance adjustment function, allowing for precise fitting of the mechanism to the lock tongue, which eliminates the problem of doors not closing properly or excessive clearance.
The device exhibits high mechanical resistance to pressure of up to 3000N (approximately 300 kg), which guarantees solid protection against forced entry attempts. The strike is adapted for continuous operation under voltage, which allows for its integration with time control systems without the risk of coil overheating. Low energy consumption (maximum 175mA at 24V DC) makes it a component friendly to buffer power supplies and uninterruptible power systems. By choosing the R5-24.13 model, you are investing in reliability, safety, and durability confirmed by the manufacturer's many years of experience in the technical security industry.
Fail-safe electric strike 24V DC narrow door and gate bolt with adjustable latch universal
Model: R5-24.13
EAN: 6931240037218 SKU: 931037215
- Operation in fail-safe mode - open when de-energized (fire safety)
- Universal design allowing installation in left and right doors
- Built-in latch clearance adjustment within a range of several millimeters
- High mechanical resistance to pressure up to 3000 N (300 kg)
- Possibility of unlimited operation under voltage (continuous duty)
- Low power consumption of maximum 175 mA
- Designed for use with latch and latch-bolt locks
- Compact dimensions allowing installation in narrow metal profiles
Description
The professional electric strike model R5-24.13 is an advanced solution dedicated to access control, intercom, and video intercom systems. The device is characterized by operation in fail-safe mode, which means that in the absence of supply voltage, the bolt remains in the open position. This is a key feature in safety systems, ensuring free exit from the building in emergency situations or during power failures.
The design of the strike has been optimized for installation in narrow profiles and metal sections, making it an ideal choice for modern gates and office doors. Thanks to its symmetrical construction, the product is fully universal – it can be mounted in both left and right doors, which significantly facilitates the installation planning process. An additional advantage is the latch clearance adjustment function, allowing for precise fitting of the mechanism to the lock tongue, which eliminates the problem of doors not closing properly or excessive clearance.
The device exhibits high mechanical resistance to pressure of up to 3000N (approximately 300 kg), which guarantees solid protection against forced entry attempts. The strike is adapted for continuous operation under voltage, which allows for its integration with time control systems without the risk of coil overheating. Low energy consumption (maximum 175mA at 24V DC) makes it a component friendly to buffer power supplies and uninterruptible power systems. By choosing the R5-24.13 model, you are investing in reliability, safety, and durability confirmed by the manufacturer's many years of experience in the technical security industry.
Specification
Device type
Fail-safe electric strike. The device remains open when the power is disconnected, which is required in many evacuation systems.
Rated voltage
24V DC ± 2V. Requires stabilized DC power supply. Voltage tolerance allows for stable operation even with minor fluctuations in power grid parameters.
Current consumption
150 mA ... 175 mA DC. Energy-efficient coil allows for long-term operation without excessive heating of the strike housing.
Application
Universal: right door / left door. Symmetrical housing facilitates installation in any direction of door leaf opening.
Mechanical strength
Permissible door load acting on the strike is 3000 N (approx. 300 kg). This ensures high resistance to burglary attempts.
Pressure during release
Permissible pressure on the door when releasing the latch is 30 N. This allows for correct operation even with slight tension of the door leaf.
Latch adjustment
Yes, the strike has the ability to adjust clearance, which allows for perfect alignment with the mechanical lock tongue after installation.
Operating time
Unlimited. The device can operate under voltage for any length of time without the risk of thermal damage.
Latch lock
None. The fail-safe model does not have a mechanical latch lock (switch).
Memory function
None. The strike reacts immediately to a change in power status; it does not have an internal pulse memory mechanism.
Material
High-quality metal alloys resistant to corrosion and mechanical wear, which guarantees long service life in difficult conditions.
Installation purpose
Doors and gates made of metal sections, aluminum, or PVC. Ideal for access control systems in office buildings.
Compatibility
Works with most standard mortise latch and latch-bolt locks available on the market.
Warranty
2 years (24 months) from the date of purchase, implemented on the basis of proof of purchase.
Contents
1x Electric strike R5-24.13
1x Installation and operating manual
Dimensions, Weight
Product dimensions: 29 x 17 x 68 mm (D x W x H)
Package dimensions: 75 x 35 x 25 mm (D x W x H)
Product weight: 128 g
Weight with packaging: 138 g
