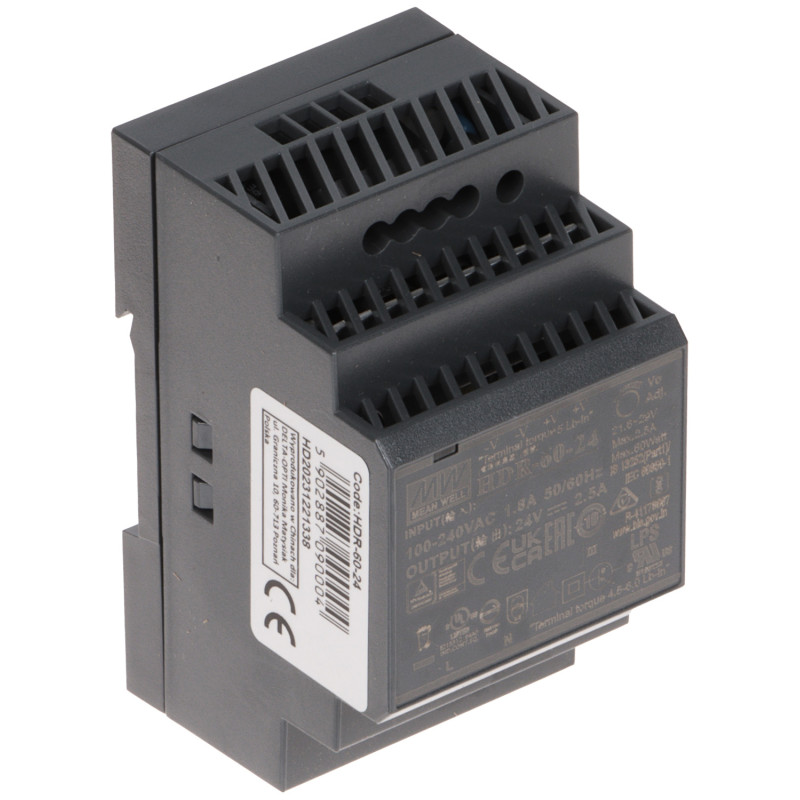

Industrial DIN rail switching power supply 24V DC 2.5A 60W MEAN WELL HDR-60-24
zł136.26
Tax included
The HDR-60-24 switching power supply is a professional and highly efficient power solution from the global leader Mean Well, designed specifically for mounting on a standard DIN rail (TS35/7.5 or 15). This device stands out for its extremely compact design with a width of only 52.5 mm, which allows for optimal use of space in control cabinets and electrical switchboards.
One of the most important advantages of this model is its high energy efficiency reaching up to 90%, which translates into lower energy losses and reduced heat emission. The power supply is adapted to operate in a very wide temperature range from -30°C to +70°C, ensuring reliability even in demanding industrial environments.
The product offers a stable 24V DC output voltage, which can be precisely adjusted using the built-in potentiometer in the range from 21.6V to 29V DC. This is a key feature allowing for the compensation of voltage drops on long power lines. The safety of connected receivers is ensured by an advanced system of short-circuit, overload, and overvoltage protections.
The HDR-60-24 power supply has Class II isolation, which means it does not require protective grounding, simplifying the installation process. Thanks to the universal AC and DC input voltage range, the device is versatile and can be used in building automation systems, CCTV monitoring, and alarm systems worldwide. The solid housing and 3-year manufacturer's warranty confirm the highest quality of this component.
Industrial DIN rail switching power supply 24V DC 2.5A 60W
Model: MEAN WELL HDR-60-24
EAN: 6931240040041 SKU: 931040049
- Mounting on DIN rail TS-35/7.5 or 15
- Wide AC and DC input voltage range
- High efficiency up to 90%
- Output voltage adjustable (21.6 ... 29V)
- Protections: short circuit, overload, overvoltage
- Cooling by free air convection
- Class II isolation (no grounding pin)
- Very narrow housing (3SU - 52.5mm)
- Wide operating temperature range from -30°C to +70°C
- Low no-load power consumption <0.3W
Description
The HDR-60-24 switching power supply is a professional and highly efficient power solution from the global leader Mean Well, designed specifically for mounting on a standard DIN rail (TS35/7.5 or 15). This device stands out for its extremely compact design with a width of only 52.5 mm, which allows for optimal use of space in control cabinets and electrical switchboards.
One of the most important advantages of this model is its high energy efficiency reaching up to 90%, which translates into lower energy losses and reduced heat emission. The power supply is adapted to operate in a very wide temperature range from -30°C to +70°C, ensuring reliability even in demanding industrial environments.
The product offers a stable 24V DC output voltage, which can be precisely adjusted using the built-in potentiometer in the range from 21.6V to 29V DC. This is a key feature allowing for the compensation of voltage drops on long power lines. The safety of connected receivers is ensured by an advanced system of short-circuit, overload, and overvoltage protections.
The HDR-60-24 power supply has Class II isolation, which means it does not require protective grounding, simplifying the installation process. Thanks to the universal AC and DC input voltage range, the device is versatile and can be used in building automation systems, CCTV monitoring, and alarm systems worldwide. The solid housing and 3-year manufacturer's warranty confirm the highest quality of this component.
Specification
Power supply type
Switching - modern design based on high-frequency technology, ensuring stable output parameters and high power density.
AC input voltage
Wide range from 85 V to 264 V AC (47-63Hz), enabling operation in various power grid standards without additional adapters.
DC input voltage
Possibility of DC power supply in the range from 120 V to 370 V DC, which allows for integration with buffer power systems.
Output voltage
Nominal 24 V DC - stabilized DC voltage with low ripple, ideal for sensitive electronic components.
Output voltage adjustment
Smooth adjustment via potentiometer in the range from 21.6 V to 29 V DC, allowing for precise tuning to receiver requirements.
Power supply current efficiency
Maximum output current is 2.5 A, which provides sufficient power reserve for most standard automation devices.
Power supply power
Rated output power 60 W, offering an excellent balance between performance and compact device dimensions.
Number of outputs
1 output section equipped with duplicated screw terminals (+V, -V) for easier power distribution to several lines.
Efficiency
High energy efficiency at the 90% level, minimizing operating costs and switchboard heating.
Housing type
Modular DIN rail housing (3SU width), made of flame-retardant plastic with high mechanical strength.
Protections
Comprehensive protection: short-circuit (hiccup mode), overload (constant current limiting), and overvoltage (output voltage shutdown).
Operating temperature / humidity
Operation in the range from -30 °C to 70 °C (with permissible power derating above 45°C) and relative humidity 20% - 90% RH.
Compliance with standards
Compliance with safety standards UL62368-1, TUV EN62368-1 and EMC emission standards EN55032 and immunity EN61000-4.
Warranty
Long-term manufacturer protection of 3 years, confirming the high reliability and quality of Mean Well components.
Contents
1x HDR-60-24 switching power supply
1x Installation and operating manual
Dimensions, Weight
Product dimensions: 58 x 53 x 93 mm (D x W x H)
Package dimensions: 55 x 65 x 95 mm (D x W x H)
Product weight: 190 g
Weight with packaging: 206 g
