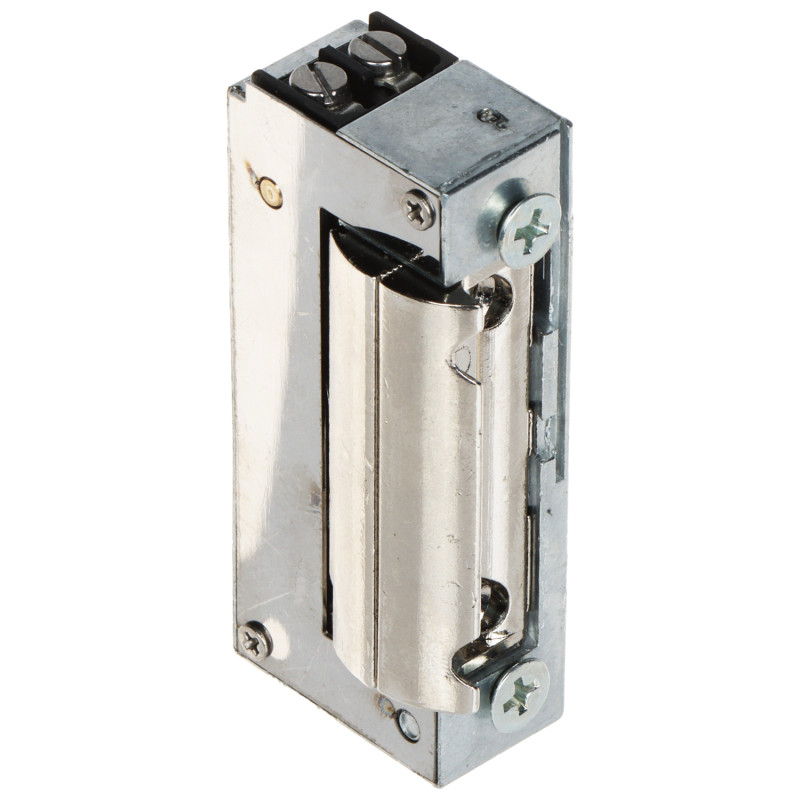

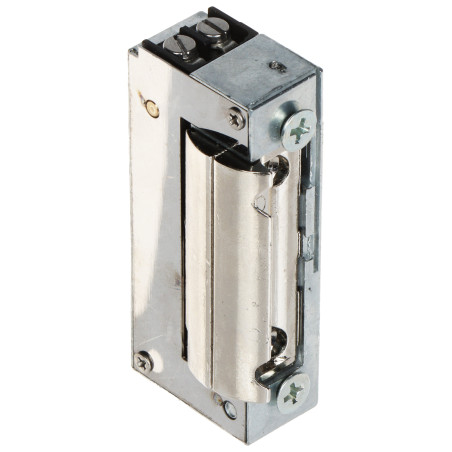

Narrow Reversible Electric Strike 16.2mm Symmetrical Radial NO 12V DC Access Control Accessories BIRA XS12R
zł194.08
Tax included
The professional electric strike from the Hartte XS series is a high-class device designed for access control and door security systems. It is characterized by an extremely narrow design with a width of only 16.2 mm, which allows for trouble-free installation in modern, narrow aluminum profiles, PVC, and wooden door frames.
One of the key advantages of the product is its reversible operating mode (NO - normally open), which means that in the event of a power failure, the strike remains open. This is a solution particularly desired in systems requiring a high level of security and compliance with fire safety regulations, where free exit in emergency situations is a priority.
The strike features an innovative, radial latch shape, which ensures that the element does not protrude beyond the outline of the electric strike during opening. This solution significantly facilitates installation, as it requires less cutting of the door frame, which shortens installation time and improves the aesthetics of the finish. The design is fully symmetrical, making it universal for both left and right doors.
Solid construction guarantees resistance to pressure up to 3000N (approximately 300 kg), which ensures a high level of mechanical protection. Additionally, the mechanism has been tested for 200,000 operating cycles, which confirms its longevity and reliability in high-traffic areas, such as office buildings, public utility facilities, or stairwells.
Narrow Reversible Electric Strike 16.2mm Symmetrical Radial NO 12V DC Access Control Accessories
Model: BIRA XS12R
EAN: 6931240042090 SKU: 931042091
- Narrow housing with a width of only 16.2 mm
- Reversible operation - open when de-energized (NO)
- Fully symmetrical design for left and right doors
- Radial strike shape preventing protrusion beyond the frame
- Clearance adjustment in the range of 3.5 mm
- Mechanical pressure resistance up to 3000 N
- Tested durability of 200,000 opening cycles
- Permissible unlimited continuous operation under voltage
Description
The professional electric strike from the Hartte XS series is a high-class device designed for access control and door security systems. It is characterized by an extremely narrow design with a width of only 16.2 mm, which allows for trouble-free installation in modern, narrow aluminum profiles, PVC, and wooden door frames.
One of the key advantages of the product is its reversible operating mode (NO - normally open), which means that in the event of a power failure, the strike remains open. This is a solution particularly desired in systems requiring a high level of security and compliance with fire safety regulations, where free exit in emergency situations is a priority.
The strike features an innovative, radial latch shape, which ensures that the element does not protrude beyond the outline of the electric strike during opening. This solution significantly facilitates installation, as it requires less cutting of the door frame, which shortens installation time and improves the aesthetics of the finish. The design is fully symmetrical, making it universal for both left and right doors.
Solid construction guarantees resistance to pressure up to 3000N (approximately 300 kg), which ensures a high level of mechanical protection. Additionally, the mechanism has been tested for 200,000 operating cycles, which confirms its longevity and reliability in high-traffic areas, such as office buildings, public utility facilities, or stairwells.
Specification
Power supply and voltage
Rated voltage: 10 ... 14 V DC. Direct Current ensures stable operation and a constant direction of charge flow.
Current consumption and efficiency
Current consumption is 200 mA at 12 V DC power supply. The device is characterized by low energy demand.
Operating characteristics
Operating mode: Reversible (NO - Normally Open). In the de-energized state, the door is open; applying voltage causes it to lock.
Construction and housing
Symmetrical housing, made of high-quality materials resistant to mechanical wear.
Technical dimensions
Width: 16.2 mm, Depth: 28 mm, Height: 67 mm. Narrow profile ideal for modern joinery systems.
Adjustment system
The strike has a clearance adjustment in the range of 3.5 mm, which allows for precise fitting to the latch of the handle lock.
Mechanical parameters and strength
Permissible load acting on the strike: 3000 N (approx. 300 kg). This provides a solid barrier against forced entry attempts.
Durability and operating cycles
Device designed for a minimum of 200,000 opening and closing cycles without loss of technical parameters.
Compliance and installation
Universal application: fits right-hand and left-hand doors. Possibility of vertical mounting.
Innovative radial design
The radial shape ensures that the latch rotates inside the mechanism during operation, not requiring a large cutout in the frame profile.
Functionality and modes
No latch lock and no memory function, which is typical for reversible electric strikes dedicated to safety.
Operating conditions and continuity
Permissible continuous operation time: unlimited. The device can remain under voltage for any length of time.
Electrical parameters (resistance)
Coil resistance is 60 Ω, which translates into the stability of electrical parameters during operation.
Origin and brand
Manufacturer: BIRA. Product series: Hartte XS. The product is covered by a 2-year manufacturer's warranty.
Contents
1x XS12R Electric Strike
1x Installation manual
Dimensions, Weight
Product dimensions: 28 x 16 x 67 mm (Depth x Width x Height)
Package dimensions: 28 x 97 x 35 mm (Depth x Width x Height)
Product weight: 136 g
Weight with packaging: 140 g
