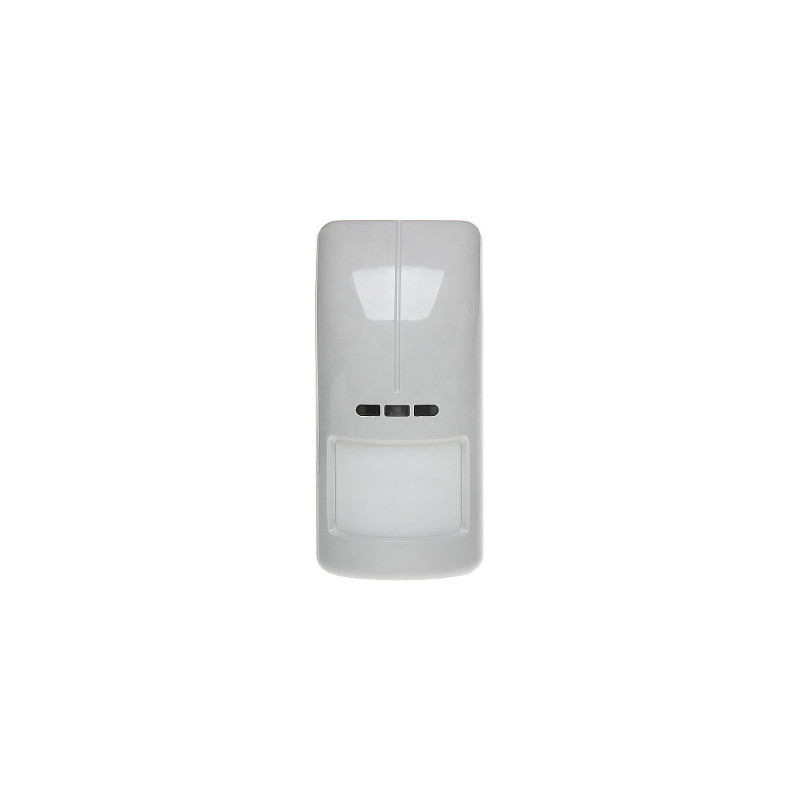

Outdoor dual motion detector PIR and microwave 15m range pet immunity IP54 creep zone protection SATEL OPAL-GY
zł485.74
Tax included
OPAL-GY is a professional outdoor dual motion detector that combines passive infrared (PIR) and microwave (MW) technologies, ensuring the highest level of perimeter protection. The device is designed to operate in the harshest outdoor conditions, offering reliability while minimizing false alarms.
The most important advantage of the detector is its ability to ignore the movement of small animals weighing up to 20 kg, making it an ideal solution for property owners with pets. Thanks to the use of a digital detection algorithm and active temperature compensation, the detector maintains constant effectiveness regardless of the season and ambient temperature, operating stably in the range from -40°C to +55°C.
System security is enhanced by an advanced anti-masking function that detects attempts to cover or paint over the detector lens, protecting against sabotage. Additionally, the device monitors the so-called creep zone, which eliminates the blind spot directly under the detector, preventing an intruder from approaching the device itself without triggering an alarm.
The housing construction, made using two-component injection technology, provides an IP54 ingress protection rating, shielding the electronics from rain, dust, and sun. The aesthetic gray color of the housing allows for discreet installation on building facades. Detector parameters are set using convenient configuration buttons, and the device status is signaled by three colored LEDs, which significantly facilitates system testing and maintenance.
Outdoor dual motion detector PIR and microwave 15m range pet immunity IP54 creep zone protection
Model: SATEL OPAL-GY
EAN: 6931240071106 SKU: 931071105
- Dual technology: PIR + Microwave (24 GHz)
- Detection range up to 15 meters at a 100-degree angle
- Immunity to small animals weighing up to 20 kg
- Anti-masking function in the IR path protecting against obstruction
- Creep zone control eliminating blind spots
- IP54 ingress protection rating for outdoor installation
- Digital temperature compensation for stable operation in all conditions
- Compliance with EN 50131-2-2 Grade 2 standard
- 16-level sensitivity adjustment for detection paths via buttons
- Full tamper protection against opening and removal from the mounting surface
Description
OPAL-GY is a professional outdoor dual motion detector that combines passive infrared (PIR) and microwave (MW) technologies, ensuring the highest level of perimeter protection. The device is designed to operate in the harshest outdoor conditions, offering reliability while minimizing false alarms.
The most important advantage of the detector is its ability to ignore the movement of small animals weighing up to 20 kg, making it an ideal solution for property owners with pets. Thanks to the use of a digital detection algorithm and active temperature compensation, the detector maintains constant effectiveness regardless of the season and ambient temperature, operating stably in the range from -40°C to +55°C.
System security is enhanced by an advanced anti-masking function that detects attempts to cover or paint over the detector lens, protecting against sabotage. Additionally, the device monitors the so-called creep zone, which eliminates the blind spot directly under the detector, preventing an intruder from approaching the device itself without triggering an alarm.
The housing construction, made using two-component injection technology, provides an IP54 ingress protection rating, shielding the electronics from rain, dust, and sun. The aesthetic gray color of the housing allows for discreet installation on building facades. Detector parameters are set using convenient configuration buttons, and the device status is signaled by three colored LEDs, which significantly facilitates system testing and maintenance.
Specification
Application
Outdoor / Indoor
Detection technology
Dual: Passive Infrared (PIR) + Microwave (MW)
Detection range and angle
Maximum 12 x 15 meters, 100° viewing angle
Security classification
EN 50131-2-2 Grade 2
Ingress protection and environmental class
IP54, Environmental class according to EN 50130-5: IIIa
Pet immunity
Yes, up to 20 kg body weight
Power supply
12 V DC (±15%), Current consumption: 20 mA
Alarm outputs
Alarm (NC): 40 mA / 16 V DC, Tamper (NC): 40 mA / 16 V DC
Microwave frequency
24 GHz
Sensitivity adjustment
16-level, independent control via buttons on the board
LED signaling
Green (Microwave), Yellow (PIR), Red (Alarm) - signaling time 2s
Operating temperature
-40 °C ... 55 °C
Detectable movement speed
0.3 ... 3 m/s
Software and logic
The device uses an advanced digital detection algorithm based on fuzzy logic, which analyzes signals from both sensors simultaneously. The detector firmware is responsible for active temperature compensation, which allows for automatic sensitivity adjustment to the ambient temperature. Additionally, the built-in anti-masking algorithm constantly monitors the infrared path, detecting attempts to blind the sensor. The system allows for 16-level sensitivity adjustment of the detection paths using physical buttons located on the electronics board, which eliminates the need for jumpers and allows for precise tuning to environmental conditions.
Dimensions and weight
139 x 65 x 58 mm, Net weight: 174 g
Contents
1x OPAL-GY dual detector
1x Set of mounting screws
1x User and installation manual
Dimensions, Weight
Product dimensions: 58 x 65 x 139 mm (D x W x H)
Packaging dimensions: 65 x 70 x 155 mm (D x W x H)
Product weight: 174 g
Weight with packaging: 225 g
