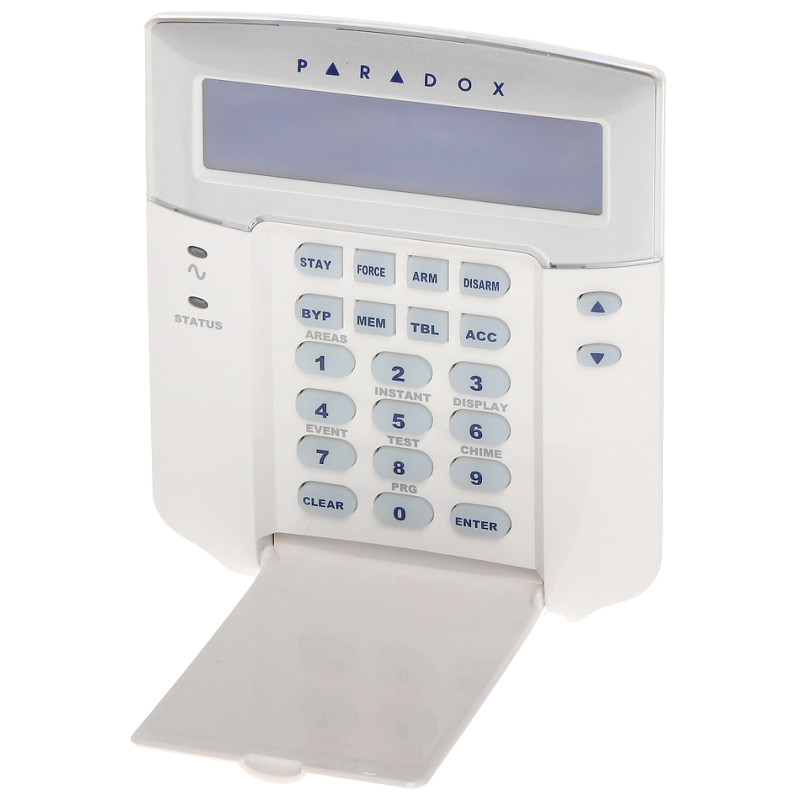

LCD Keypad for Digiplex EVO Alarm System Blue Screen Wired

Model: PARADOX K641+-W2W

EAN: 6931240067741 SKU: 931067745

• Compatibility with advanced PARADOX Digiplex EVO control panels
• Clear 2x16 character alphanumeric LCD display with blue backlight
• Quick access buttons for frequently used system functions
• Ability to trigger special alarms (Panic, Fire, Medical) directly from the keypad
• Support for one or multiple system partitions
• Built-in input for an additional alarm zone
• Independent settings for chime zones
• Integrated programmable PGM output for controlling external devices
• Full adjustment of display parameters: backlight, contrast, scroll speed
• Compliance with European EN safety standards

Description

The K641+-W2W keypad is an advanced control device designed specifically for use with modern PARADOX Digiplex EVO series alarm control panels. Equipped with a clear 2x16 character alphanumeric LCD display, it offers the user full control over the security system in an extremely intuitive and comfortable way.

One of the main advantages of this model is the blue backlight, which not only gives the device a modern look but, above all, ensures excellent readability of messages in all lighting conditions. Thanks to text-based information, the user does not need to remember complicated blinking LED codes – all events, errors, and system states are described directly on the screen.

The keypad offers a range of features to increase security, including dedicated buttons for triggering immediate alarms: PANIC, FIRE, and MEDICAL ASSISTANCE. The device allows for independent management of multiple partitions, which is crucial in large office buildings or multi-family homes. Additionally, the built-in programmable PGM output allows for integration with other home automation systems, and the ability to connect one alarm zone directly to the keypad simplifies wiring installation in the system.

Solid construction, precise workmanship, and an aesthetic white-silver housing make the keypad blend perfectly with any interior. The ability to adjust backlight intensity and contrast allows for matching display parameters to individual user preferences, making it one of the most user-friendly elements of the alarm system.

Specification

Cooperation and Compatibility

The device is designed to work within professional PARADOX alarm systems. Full compatibility includes Digiplex EVO series control panels, allowing for the use of all advanced bus functions.

Display and Interface

An LCD display with a format of 2 lines of 16 characters each is used. It is characterized by high contrast and blue backlighting. The interface is alphanumeric, which means it displays full text messages in Polish.

Alarm Functions

The keypad allows for immediate calls for help via a key combination. Three types of alarms are available: PANIC (Silent/Audible), FIRE, and ASSISTANCE (Medical). Each can be configured regarding reporting methods.

Zone Management

The device supports multi-partition logic. The user can arm and disarm individual zones (partitions) of the system independently, according to the permissions granted in the EVO system.

Zones and Outputs

The keypad has 1 physical input for an alarm zone, which saves on wiring to the control panel. Additionally, it is equipped with 1 programmable PGM output, which can be activated by system events.

Communication Bus

Connection is made via a standard 4-wire Paradox communication bus, ensuring stable data exchange over long distances.

Sound Signaling

A built-in piezoelectric transducer signals entry, exit, delay times, and chime zone violations with sound. It is possible to independently define sounds for different events.

Personalization

The user has the ability to smoothly adjust the brightness of the LEDs and screen, display contrast, and the speed at which text messages scroll on the screen.

Standards and Certificates

Compliance with rigorous safety and electromagnetic compatibility standards: EN 50130-4, EN 61000-6-3, EN 60950-1, and the environmental standard EN 50581.

Power Supply

The operating voltage range is from 9 V to 16 V DC (direct current). Current consumption at maximum load (full backlight and signaling) does not exceed 150 mA.

Operating Environment

The device is intended for indoor use. The operating temperature ranges from -10 °C to 55 °C, with an allowable relative humidity of 5% to 93% (non-condensing).

Physical Parameters

Housing made of high-quality ABS plastic in White / Silver color. External dimensions are 126 x 150 x 27 mm. The net weight of the device is 0.23 kg.

Location

The device originates from Canada (country of origin of the manufacturer Paradox), which guarantees the highest quality of technology and safety standards. Supported menu language: Polish.

Warranty

The product is covered by a standard 2-year manufacturer's warranty, which ensures technical support and long-term system reliability.

Software and User Interface

The keypad's internal software allows full access to the installer and user menu of the Digiplex EVO system. The software interface allows for intuitive navigation through the menu structure thanks to clear text labels. The software supports advanced features for monitoring zone status, viewing the event log (up to 2048 events in EVO systems), and testing the system. Thanks to built-in logic, the keypad automatically displays fault statuses, which significantly shortens system diagnostics time. The software also allows for assigning custom names to zones and lines, which personalizes the system for a specific client.

Contents

1x LCD Keypad

1x Mounting accessories (plugs, screws)

1x End-of-line resistor

1x Quick start guide

Dimensions, Weight

Product dimensions: 27 x 150 x 126 mm (D x W x H)

Package dimensions: 35 x 130 x 150 mm (D x W x H)

Product weight: 230 g

Weight with packaging: 250 g
