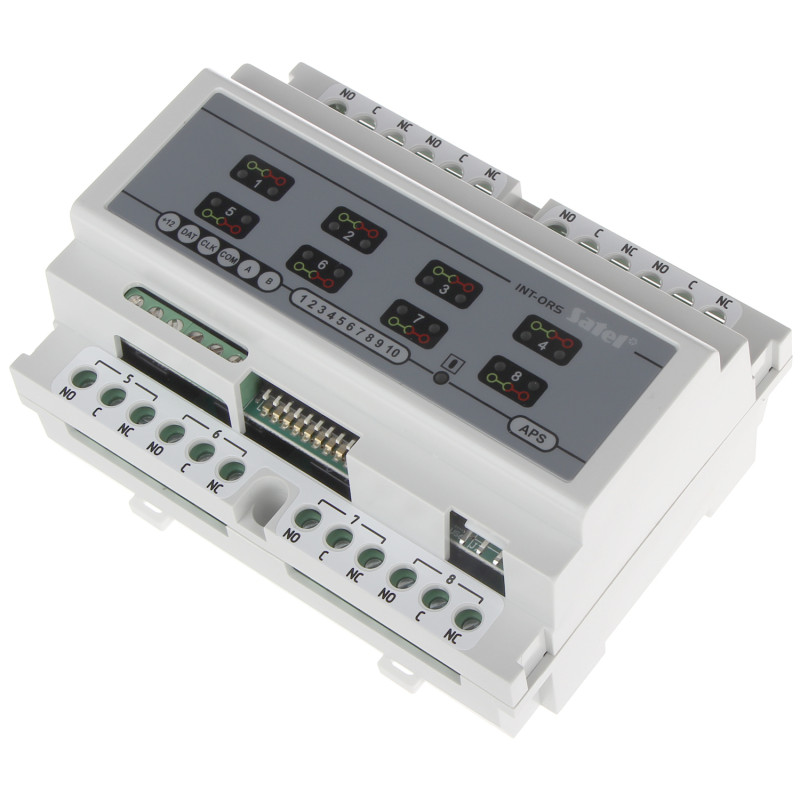

8 Relay Output Expander 16A for Alarm Control Panels DIN Rail Module Home Automation SATEL INT-ORS
zł527.41
Tax included
SATEL INT-ORS is a professional output expansion module designed for the most demanding intrusion and robbery alarm systems. It allows for fast and efficient expansion of hardware resources for INTEGRA, INTEGRA Plus, VERSA, PERFECTA, and CA-64 alarm control panels with 8 additional relay outputs. Due to its versatility, the module is used not only in security systems but also as a key element of home automation.
One of the most important advantages of the expander is the use of high-class relays that allow for the control of devices with significant power consumption – the switched current is as high as 16 A at a voltage of up to 250 V AC. Thanks to this, the installer can directly manage the operation of lighting, roller shutters, garage doors, or irrigation systems from the alarm control panel, eliminating the need for external contactors in many applications. The device is designed for mounting in distribution cabinets on a standard 35 mm DIN rail, which ensures neat cabling and an aesthetic appearance of the entire installation.
The INT-ORS module is characterized by exceptional operational stability and low power consumption at a maximum level of 280 mA. The device is fully compatible with the ACCO-NT access control system, which expands its capabilities with advanced functions for controlling passages and building infrastructure. Solid construction, Polish production, and a 2-year manufacturer's warranty make it a reliable solution that will work in any modern smart building.
The use of this module is an investment in scalability. Each of the eight outputs can be programmed individually, which provides enormous possibilities for system personalization. The user gains full control over the environment, being able to create complex automation scenarios that increase comfort and the safety level of the household members.
8 Relay Output Expander 16A for Alarm Control Panels DIN Rail Module Home Automation
Model: SATEL INT-ORS
EAN: 6931240056141 SKU: 931056140
- System expansion with 8 additional relay outputs
- Compatibility with INTEGRA, VERSA, PERFECTA, CA-64 control panels
- Compatibility with ACCO-NT access control system
- High-power relays with load capacity up to 16 A / 250 V AC
- Mounting on standard 35 mm DIN rail
- Low power consumption by the module (max. 280 mA)
- Direct control of 230V devices
- Product of the renowned Polish brand SATEL
Description
SATEL INT-ORS is a professional output expansion module designed for the most demanding intrusion and robbery alarm systems. It allows for fast and efficient expansion of hardware resources for INTEGRA, INTEGRA Plus, VERSA, PERFECTA, and CA-64 alarm control panels with 8 additional relay outputs. Due to its versatility, the module is used not only in security systems but also as a key element of home automation.
One of the most important advantages of the expander is the use of high-class relays that allow for the control of devices with significant power consumption – the switched current is as high as 16 A at a voltage of up to 250 V AC. Thanks to this, the installer can directly manage the operation of lighting, roller shutters, garage doors, or irrigation systems from the alarm control panel, eliminating the need for external contactors in many applications. The device is designed for mounting in distribution cabinets on a standard 35 mm DIN rail, which ensures neat cabling and an aesthetic appearance of the entire installation.
The INT-ORS module is characterized by exceptional operational stability and low power consumption at a maximum level of 280 mA. The device is fully compatible with the ACCO-NT access control system, which expands its capabilities with advanced functions for controlling passages and building infrastructure. Solid construction, Polish production, and a 2-year manufacturer's warranty make it a reliable solution that will work in any modern smart building.
The use of this module is an investment in scalability. Each of the eight outputs can be programmed individually, which provides enormous possibilities for system personalization. The user gains full control over the environment, being able to create complex automation scenarios that increase comfort and the safety level of the household members.
Specification
System cooperation
The device is fully compatible with a wide range of SATEL alarm control panels, including models from the INTEGRA, INTEGRA Plus, CA-64, VERSA, PERFECTA series, and the advanced ACCO-NT access control system.
Number of outputs
The module offers 8 independent, fully programmable outputs that can perform various logic functions defined in the alarm system.
Type of executive outputs
High-durability relay outputs, providing galvanic isolation of control circuits from the load.
Relay switching capacity
The maximum current switched by each of the relays is 16 A, which allows for the operation of even very power-hungry energy receivers.
Switched voltage
The relays are adapted to work with voltages up to 250 V AC, which enables direct control of devices powered by the power grid.
Power supply parameters
The module requires a stabilized 12 V DC power supply, typical for alarm systems.
Maximum current consumption
When all eight relays are engaged, the power consumption does not exceed 280 mA.
Ambient temperature during operation
The device has been tested for stability in a wide temperature range from -10 °C to 55 °C.
Mounting method
The module housing is adapted to snap onto a standard 35 mm wide DIN mounting rail.
Tamper output
This model does not have a dedicated tamper output on the electronics board.
Environmental class
Compliance with the EN 50130-5 standard - Class II, which means suitability for indoor use under typical conditions.
Warranty
The manufacturer provides a full 2-year warranty on the device from the date of purchase.
Physical dimensions
Width 122 mm, height 92 mm, depth 58 mm.
Control software
Dedicated software allows for advanced output configuration, assigning unique names, setting timers, and monitoring relay status in real-time. The program provides a clear view of the system architecture and facilitates integration with smart building systems via the control panel's communication bus. The user can easily assign outputs to time schedules, which allows for automatic control of lighting or heating without human intervention. The program also offers diagnostic tools to check the correctness of communication and the power status of the expansion module.
Contents
1x SATEL INT-ORS Expander
1x User manual in Polish
Dimensions, Weight
Product dimensions: 58 x 122 x 92 mm (D x W x H)
Packaging dimensions: 65 x 145 x 100 mm (D x W x H)
Product weight: 280 g
Weight with packaging: 340 g
