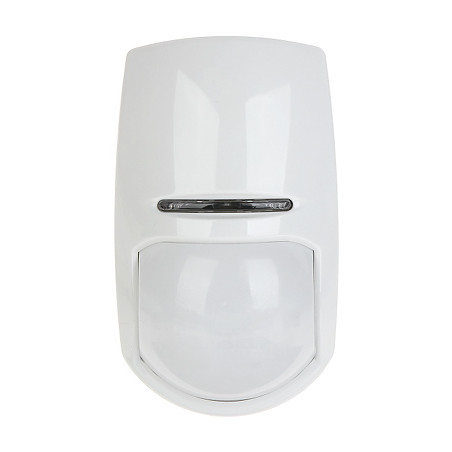

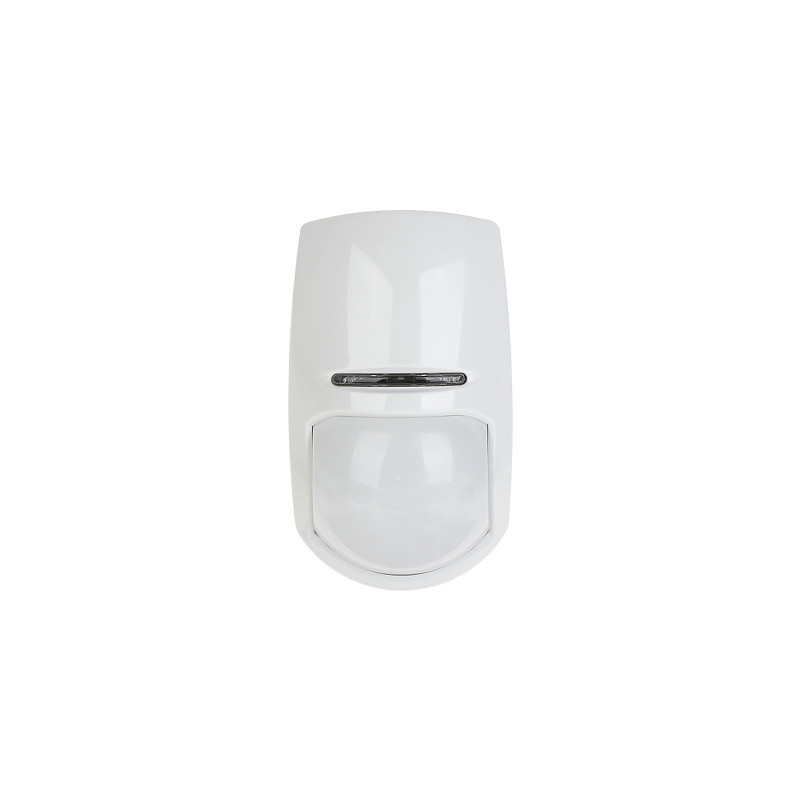

Wired Dual Technology PIR and MW Indoor Motion Sensor 15m Range Grade 2 PYRONIX FPKX15DT1
zł223.86
Tax included
The Pyronix dual sensor is a professional solution designed for the highest level of indoor security. The device combines two independent detection technologies: passive infrared (PIR) and microwave (MW). Thanks to this combination, the sensor is characterized by exceptional immunity to false alarms that could be caused by sudden temperature changes or air mass movements. It is an ideal choice for rooms with challenging environmental conditions, such as garages or kitchens.
One of the key advantages of the device is the Blue Wave technology, which, combined with digital temperature compensation, allows for precise sensitivity adjustment to the prevailing conditions. The IFT (Independent Floating Thresholds) system automatically regulates alarm trigger thresholds, eliminating electrical noise. The sensor meets the rigorous Grade 2 safety standards, meaning it is designed to protect homes, offices, and shops with low to medium burglary risk.
The product was designed with attention to technical detail and ease of installation. The set includes dedicated wall and ceiling brackets that enable optimal viewing angle settings. The aesthetic, white housing discreetly blends into modern interiors. An additional benefit is the 5-year manufacturer warranty, which confirms the high quality and reliability of electronic components. By choosing this device, you are investing in proven British security technology that effectively protects property for many years.
Wired Dual Technology PIR and MW Indoor Motion Sensor 15m Range Grade 2
Model: PYRONIX FPKX15DT1
EAN: 6931240051207 SKU: 931051203
- Dual detection technology: PIR + Microwave (MW)
- Compliance with EN 50131-1 Grade 2 standard
- Detection range up to 15 meters for both paths
- IFT technology eliminating electrical noise
- Digital temperature compensation
- Operating status signaling via colored LEDs
- Wall and ceiling mount brackets included
- Very wide operating temperature range from -30°C to +70°C
- Tamper protection against opening and wall removal
- 5-year manufacturer warranty
Description
The Pyronix dual sensor is a professional solution designed for the highest level of indoor security. The device combines two independent detection technologies: passive infrared (PIR) and microwave (MW). Thanks to this combination, the sensor is characterized by exceptional immunity to false alarms that could be caused by sudden temperature changes or air mass movements. It is an ideal choice for rooms with challenging environmental conditions, such as garages or kitchens.
One of the key advantages of the device is the Blue Wave technology, which, combined with digital temperature compensation, allows for precise sensitivity adjustment to the prevailing conditions. The IFT (Independent Floating Thresholds) system automatically regulates alarm trigger thresholds, eliminating electrical noise. The sensor meets the rigorous Grade 2 safety standards, meaning it is designed to protect homes, offices, and shops with low to medium burglary risk.
The product was designed with attention to technical detail and ease of installation. The set includes dedicated wall and ceiling brackets that enable optimal viewing angle settings. The aesthetic, white housing discreetly blends into modern interiors. An additional benefit is the 5-year manufacturer warranty, which confirms the high quality and reliability of electronic components. By choosing this device, you are investing in proven British security technology that effectively protects property for many years.
Specification
Purpose and Type
Indoor device, wired dual-tech sensor
Detection Systems
Passive infrared (PIR) - dual pyroelement and microwave (MW) channel 9.89 GHz
Detection Area
Maximum range 15 meters, 85-degree viewing angle, creep zone protection
Signal Analysis
Digital temperature compensation, Blue Wave technology, IFT (Independent Floating Thresholds) algorithm
Status Signaling
Three LEDs: Orange (MW), Green (PIR), Blue (Alarm)
Tamper Protection
NC contact, protection against casing opening and removal from the surface
Security Standards
Grade 2 (EN 50131-1, EN 50131-2-4:2008, PD6662:2010)
Output Parameters
NC / DEOL alarm output, max load 50 mA / 60 V DC, 42 V AC - RMS
Power Supply and Power Consumption
Voltage 9 V ... 16 V DC, maximum power consumption 30 mA at 12 V
Environmental Conditions
Operating temperature from -30 °C to 70 °C, Environmental Class II
Construction Features
Plastic housing, white color, mounting height 1.8 - 2.4 m
Adjustment and Configuration
Automatic sensitivity adjustment, smooth microwave range control, 'and/or' operating mode
Movement Dynamics
Detectable object speed from 0.3 m/s to 3.0 m/s
Identification and Warranty
Manufacturer: PYRONIX, SAP Code: 361301740, Warranty period: 5 years
Contents
1x Dual sensor
1x Wall bracket
1x Ceiling bracket
1x Set of mounting screws
1x Installation manual
Dimensions, Weight
Product dimensions: 50 x 69 x 117 mm (Depth x Width x Height)
Packaging dimensions: 60 x 70 x 165 mm (Depth x Width x Height)
Product weight: 110 g
Weight with packaging: 184 g
