- New

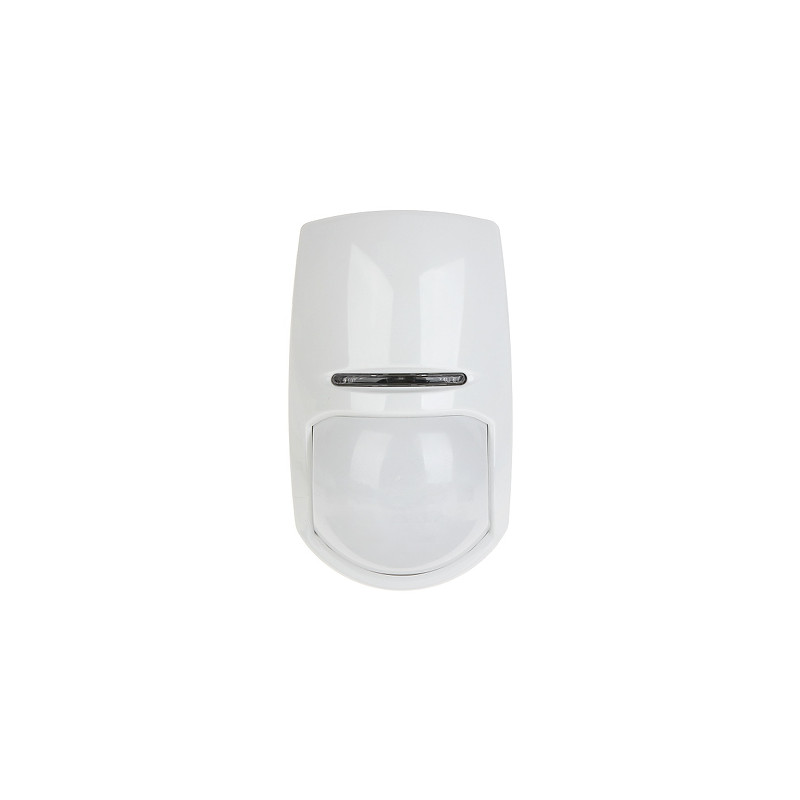

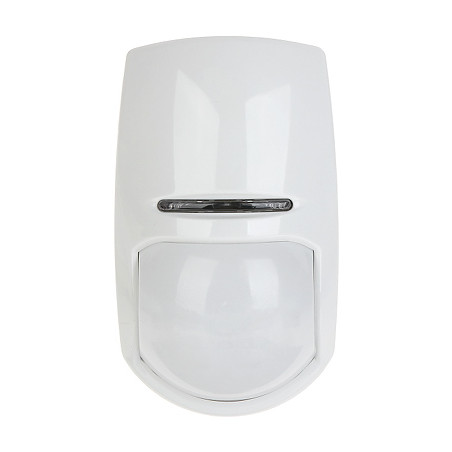

Dual PIR and MW motion sensor 15m range internal wired Grade 2 for alarm systems PYRONIX FPKX15DT1
zł223.86
Tax included
The Pyronix dual detector is a professional solution designed for the highest level of security inside buildings. The device combines two independent detection technologies: passive infrared (PIR) and microwave (MW). Thanks to this combination, the detector is characterized by exceptional resistance to false alarms that could be caused by sudden temperature changes or air currents. It is an ideal choice for rooms with difficult environmental conditions, such as garages or kitchens.
One of the key advantages of the device is Blue Wave technology, which, combined with digital temperature compensation, allows for precise sensitivity adjustment to prevailing conditions. The IFT (Independent Floating Thresholds) system automatically adjusts alarm trigger thresholds, eliminating electrical interference. The detector meets rigorous Grade 2 security standards, meaning it is dedicated to protecting homes, offices, and shops with low to medium burglary risk levels.
The product was designed with attention to technical details and ease of installation. Dedicated wall and ceiling brackets are included, which allow for optimal viewing angle adjustment. The aesthetic, white casing discreetly blends into modern interiors. An additional advantage is the 5-year manufacturer warranty, which confirms the high quality of workmanship and reliability of electronic components. By choosing this device, you are investing in proven British security technology that effectively protects property for many years.
Dual PIR and MW motion sensor 15m range internal wired Grade 2 for alarm systems
Model: PYRONIX FPKX15DT1
EAN: 6931240051207 SKU: 931051203
- Dual detection technology: PIR + Microwave (MW)
- Compliance with EN 50131-1 Grade 2 standard
- Detection range up to 15 meters for both paths
- IFT technology eliminating electrical interference
- Digital temperature compensation
- Operating status signaling via colored LEDs
- Wall and ceiling mount brackets included
- Very wide operating temperature range from -30°C to +70°C
- Tamper protection against opening and wall removal
- 5-year manufacturer warranty
Description
The Pyronix dual detector is a professional solution designed for the highest level of security inside buildings. The device combines two independent detection technologies: passive infrared (PIR) and microwave (MW). Thanks to this combination, the detector is characterized by exceptional resistance to false alarms that could be caused by sudden temperature changes or air currents. It is an ideal choice for rooms with difficult environmental conditions, such as garages or kitchens.
One of the key advantages of the device is Blue Wave technology, which, combined with digital temperature compensation, allows for precise sensitivity adjustment to prevailing conditions. The IFT (Independent Floating Thresholds) system automatically adjusts alarm trigger thresholds, eliminating electrical interference. The detector meets rigorous Grade 2 security standards, meaning it is dedicated to protecting homes, offices, and shops with low to medium burglary risk levels.
The product was designed with attention to technical details and ease of installation. Dedicated wall and ceiling brackets are included, which allow for optimal viewing angle adjustment. The aesthetic, white casing discreetly blends into modern interiors. An additional advantage is the 5-year manufacturer warranty, which confirms the high quality of workmanship and reliability of electronic components. By choosing this device, you are investing in proven British security technology that effectively protects property for many years.
Specification
Purpose and Type
Internal device, wired dual-tech detector
Detection Systems
Passive infrared (PIR) - dual pyroelement and microwave (MW) path 9.89 GHz
Detection Area
Maximum range 15 meters, viewing angle 85 degrees, creep zone control
Signal Analysis
Digital temperature compensation, Blue Wave technology, IFT (Independent Floating Thresholds) algorithm
Status Signaling
Three LEDs: Orange (MW), Green (PIR), Blue (Alarm)
Tamper Protection
NC contact, protection against casing opening and removal from the surface
Security Standards
Grade 2 (EN 50131-1, EN 50131-2-4:2008, PD6662:2010)
Output Parameters
NC / DEOL alarm output, max load 50 mA / 60 V DC, 42 V AC - RMS
Power Supply and Current Consumption
Voltage 9 V ... 16 V DC, current consumption maximum 30 mA at 12 V
Environmental Conditions
Operating temperature from -30 °C to 70 °C, Environmental Class II
Construction Features
Plastic housing, white color, mounting height 1.8 - 2.4 m
Adjustment and Configuration
Automatic sensitivity adjustment, smooth microwave range control, 'AND/OR' operation mode
Movement Dynamics
Detectable object speed from 0.3 m/s to 3.0 m/s
Identification and Warranty
Manufacturer: PYRONIX, SAP Code: 361301740, Warranty period: 5 years
Contents
1x Dual detector
1x Wall bracket
1x Ceiling bracket
1x Set of mounting screws
1x Installation manual
Dimensions, Weight
Product dimensions: 50 x 69 x 117 mm (D x W x H)
Package dimensions: 60 x 70 x 165 mm (D x W x H)
Product weight: 110 g
Weight with packaging: 184 g
