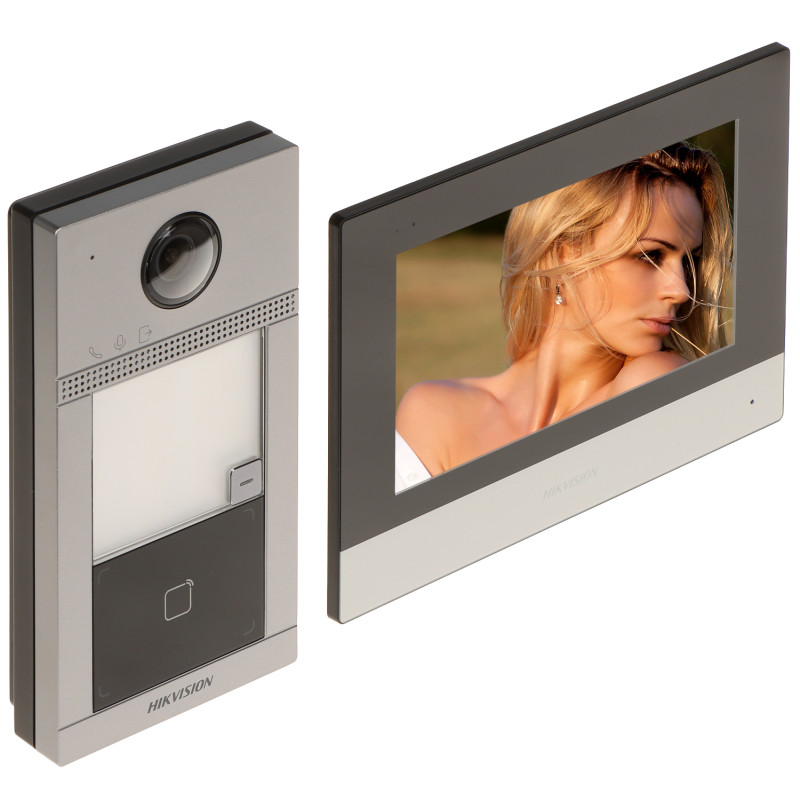

IP WiFi Video Intercom Set 7 inch monitor Full HD door station PoE complete access control system

Model: Hikvision DS-KIS604-S(C)

EAN: 6931240054499 SKU: 931054497

• Complete system ready for installation with 7-inch monitor and door station
• High-resolution Full HD 1080p camera with 124° wide viewing angle
• Remote operation via smartphone using Hik-Connect application (opening, preview, calling)
• PoE power supply standard (802.3af) - data transmission and power over a single cable
• Vandal-proof door station (IK08) with IP65 ingress protection
• Two-way voice communication with echo and noise reduction
• Built-in Mifare proximity card reader (13.56 MHz)
• Integration capability with alarm systems and Hikvision IP CCTV monitoring
• Includes dedicated PoE switch and 16GB memory card

Description

The complete Hikvision IP video intercom set is a modern solution for those seeking the highest level of security and comfort. The heart of the system is an elegant indoor panel with a 7-inch, high-resolution 1024x600 px capacitive touchscreen that provides crystal-clear images and intuitive operation. The outdoor station features a Full HD 1080p camera with an exceptionally wide 124-degree viewing angle, allowing for precise identification of visitors before entry.

The main advantages of the set are its full mobility thanks to the Hik-Connect application. You can receive calls, talk to visitors, and open the gate from anywhere in the world. The durable door station housing with IP65 ingress protection and IK08 mechanical resistance ensures fault-free operation in harsh weather conditions and protects against vandalism. PoE power supply simplifies installation to a single network cable, eliminating unnecessary wiring. The set also includes a PoE switch and a 16GB card, making it ready for use immediately after installation.

Specification

Section 1: Door Station - Image Parameters

Sensor: 2 Mpx CMOS; Resolution: 1920 x 1080 (1080p); Viewing angle: 124° horizontal; Video compression: H.264; Image enhancement functions: True WDR (Wide Dynamic Range), BLC (Backlight Compensation), DNR (Digital Noise Reduction); IR illuminator: Yes (automatic).

Section 2: Door Station - Interfaces

Proximity reader: 13.56 MHz S50 (Mifare); Buttons: 1 physical doorbell button; Alarm inputs: 4 pcs; Relay outputs: 2 x NO/NC; Communication: RS-485; Network: RJ45 10/100 Mbps, Wi-Fi IEEE 802.11b/g/n.

Section 3: Door Station - Construction

Housing: Aluminum + Plastic; Protection rating: IP65; Vandal resistance: IK08; Mounting: Surface; Dimensions: 174 x 91 x 30 mm; Weight: 0.34 kg; Operating temperature: -40 °C ... 53 °C.

Section 4: Indoor Panel - Display

Screen: 7 inches, capacitive touch; Resolution: 1024 x 600 px; Operation: Graphical touch menu; RAM/ROM memory: 128 MB built-in.

Section 5: Indoor Panel - Functionality

Two-way communication: Built-in microphone and speakers; Functions: Recording photos and voice messages when absent, microSD card support (up to 32 GB), IP camera preview, intercom between panels; Configuration: iVMS-4200, mobile app.

Section 6: Indoor Panel - Connectors and Network

Alarm inputs: 8; Alarm outputs: 2; Network: Wi-Fi IEEE 802.11 b/g/n, Ethernet; SD slot: Yes (16GB card included).

Section 7: Indoor Panel - Physical Data

Power supply: PoE (802.3af) or 12V DC; Power consumption: max 6W; Color: Black + Silver; Dimensions: 200 x 140 x 25 mm; Weight: 0.33 kg.

Section 8: PoE Switch - Parameters

Ports: 4 x 10/100 Base-T (PoE), 1 x RJ45 Uplink; Standards: IEEE 802.3af/at; Power: 30W per port, 35W total; Extend mode: Range up to 300m (10 Mbps).

Section 9: PoE Switch - Physical Data

Power supply: 48V DC / 800 mA (power adapter included); LED indicators: Power, PoE Max, Link/Act; Dimensions: 105 x 86 x 28 mm; Weight: 0.2 kg.

Section 10: Mounting Housing

Application: Mounting the door station; Number of modules: 1; Material: Plastic; Dimensions: 174 x 91 x 19 mm; Weight: 0.03 kg.

Section 11: Audio and Communication

Audio standard: G.711; Sound quality: Noise suppression and echo cancellation; Network protocols: TCP/IP, RTSP (allows video stream preview in other systems).

Section 12: Security

Tamper detection: Yes (detachment from surface); Passwords: Administrator password setup required upon first boot; Zone management: Support for alarm inputs for detector systems.

Section 13: Software and Management

The free Hik-Connect mobile application (Android/iOS) allows for remote call reception, door opening, and constant live preview from the camera. The system is fully configurable via the professional iVMS-4200 software dedicated to Windows and Mac systems, which offers advanced user, log, and event logic management.

Section 14: General Data

Supported languages: Polish, English, German, French, Spanish, Italian, and others; Warranty: 3 years; SAP Code: 305303907.

Section 15: Contents

1x Outdoor panel DS-KV8113-WME1

1x Indoor monitor DS-KH6320-WTE1

1x PoE switch DS-3E0105P-E/M

1x MicroSD memory card 16GB

1x Switch power adapter

1x Surface housing

Mounting accessories

Dimensions, Weight

Product dimensions: 25 x 200 x 140 mm (D x W x H)

Package dimensions: 120 x 320 x 210 mm (D x W x H)

Product weight: 900 g

Weight with packaging: 1650 g
