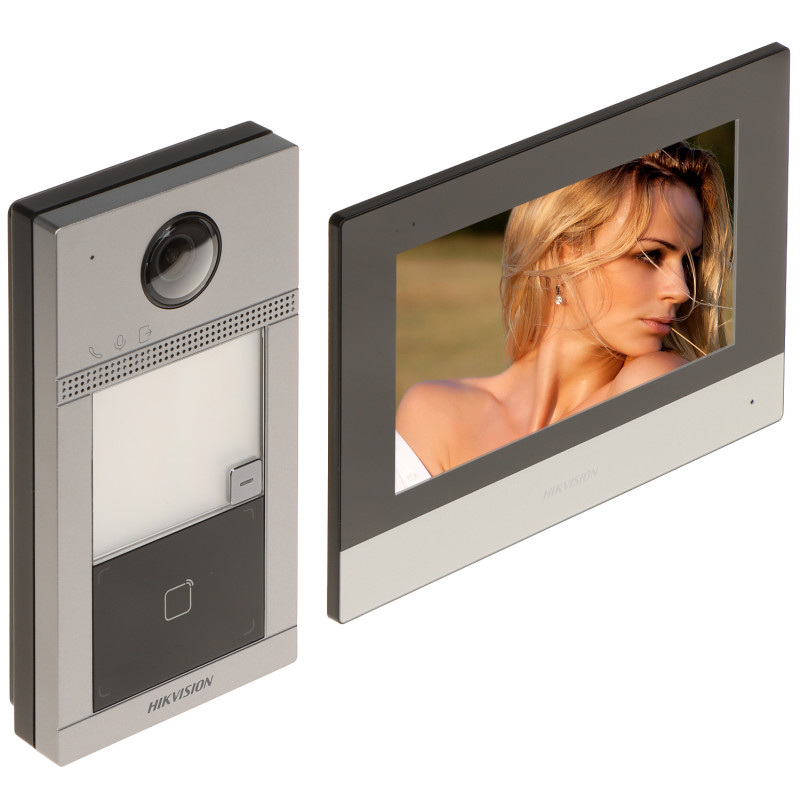

7-inch IP WiFi Video Intercom Set Full HD Door Station PoE Complete Access Control System

Model: Hikvision DS-KIS604-S(C)

EAN: 6931240054499 SKU: 931054497

• Complete system ready for installation with a 7-inch monitor and door station
• High-resolution Full HD 1080p camera with a wide 124° viewing angle
• Remote operation via smartphone using the Hik-Connect app (opening, live view, calling)
• PoE power supply standard (802.3af) - data transmission and power over a single cable
• Vandal-proof door station (IK08) with IP65 ingress protection rating
• Two-way voice communication with echo and noise cancellation
• Built-in Mifare proximity card reader (13.56 MHz)
• Integration capability with alarm systems and Hikvision IP CCTV monitoring
• Includes dedicated PoE switch and 16GB memory card

Description

The complete Hikvision IP video intercom set is a modern solution for those seeking the highest level of security and comfort. The heart of the system is an elegant indoor panel with a 7-inch capacitive high-resolution 1024x600 px touchscreen, which provides a crystal-clear image and intuitive operation. The outdoor station features a Full HD 1080p camera with an exceptionally wide 124-degree viewing angle, allowing for precise identification of individuals before entry.

The advantages of this set include full mobility thanks to the Hik-Connect app. You can answer calls, talk to guests, and open the gate from anywhere in the world. The durable door station housing with an IP65 protection rating and IK08 mechanical resistance ensures trouble-free operation in harsh weather conditions and protects against vandalism. PoE power supply simplifies installation to a single network cable, eliminating unnecessary wiring. The set also includes a PoE switch and a 16GB card, making it ready for operation immediately after installation.

Specification

Section 1: Door Station - Image Parameters

Sensor: 2 Mpx CMOS; Resolution: 1920 x 1080 (1080p); Viewing angle: 124° horizontal; Video compression: H.264; Image enhancement functions: True WDR (Wide Dynamic Range), BLC (Backlight Compensation), DNR (Digital Noise Reduction); IR illuminator: Yes (automatic).

Section 2: Door Station - Interfaces

Proximity reader: 13.56 MHz S50 (Mifare); Buttons: 1 physical doorbell button; Alarm inputs: 4 units; Relay outputs: 2 x NO/NC; Communication: RS-485; Network: RJ45 10/100 Mbps, Wi-Fi IEEE 802.11b/g/n.

Section 3: Door Station - Construction

Housing: Aluminum + Plastic; Protection rating: IP65; Vandal resistance: IK08; Installation: Surface-mounted; Dimensions: 174 x 91 x 30 mm; Weight: 0.34 kg; Operating temperature: -40 °C ... 53 °C.

Section 4: Indoor Panel - Display

Screen: 7-inch, capacitive touch; Resolution: 1024 x 600 px; Operation: Graphical touch menu; RAM/ROM memory: 128 MB built-in.

Section 5: Indoor Panel - Functionality

Two-way communication: Built-in microphone and speakers; Functions: Snapshot and voice message recording while away, support for microSD cards (up to 32 GB), IP camera preview, intercom between panels; Configuration: iVMS-4200, mobile application.

Section 6: Indoor Panel - Connectors and Network

Alarm inputs: 8; Alarm outputs: 2; Network: Wi-Fi IEEE 802.11 b/g/n, Ethernet; SD slot: Yes (16GB card included).

Section 7: Indoor Panel - Physical Data

Power supply: PoE (802.3af) or 12V DC; Power consumption: max 6W; Color: Black + Silver; Dimensions: 200 x 140 x 25 mm; Weight: 0.33 kg.

Section 8: PoE Switch - Parameters

Ports: 4 x 10/100 Base-T (PoE), 1 x RJ45 Uplink; Standards: IEEE 802.3af/at; Power: 30W per port, 35W total; Extend mode: Range up to 300m (10 Mbps).

Section 9: PoE Switch - Physical Data

Power supply: 48V DC / 800 mA (power adapter included); LED indicators: Power, PoE Max, Link/Act; Dimensions: 105 x 86 x 28 mm; Weight: 0.2 kg.

Section 10: Mounting Housing

Purpose: Door station mounting; Number of modules: 1; Material: Plastic; Dimensions: 174 x 91 x 19 mm; Weight: 0.03 kg.

Section 11: Audio and Communication

Audio standard: G.711; Sound quality: Noise suppression and echo cancellation; Network protocols: TCP/IP, RTSP (enables video stream preview in other systems).

Section 12: Security

Tamper detection: Yes (detachment from the surface); Passwords: Administrator password setup required at first launch; Zone management: Support for alarm inputs for detector systems.

Section 13: Software and Management

The free mobile app Hik-Connect (Android/iOS) allows for remote call reception, door opening, and constant live view from the camera. The system is fully configurable via professional iVMS-4200 software dedicated to Windows and Mac systems, which offers advanced management of users, logs, and event logic.

Section 14: General Data

Supported languages: Polish, English, German, French, Spanish, Italian, and others; Warranty: 3 years; SAP Code: 305303907.

Section 15: Content

1x Outdoor panel DS-KV8113-WME1

1x Indoor monitor DS-KH6320-WTE1

1x PoE switch DS-3E0105P-E/M

1x MicroSD memory card 16GB

1x Switch power adapter

1x Surface-mount housing

Mounting accessories

Dimensions, Weight

Product dimensions: 25 x 200 x 140 mm (Depth x Width x Height)

Package dimensions: 120 x 320 x 210 mm (Depth x Width x Height)

Product weight: 900 g

Weight with package: 1650 g
