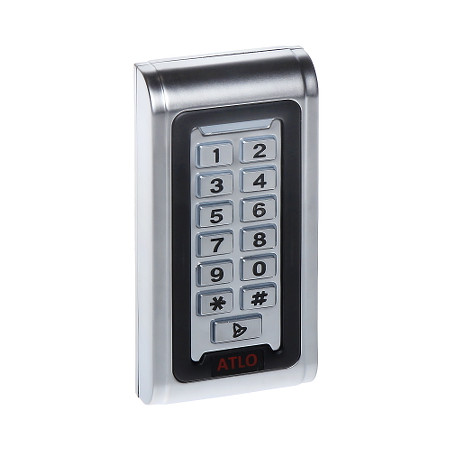

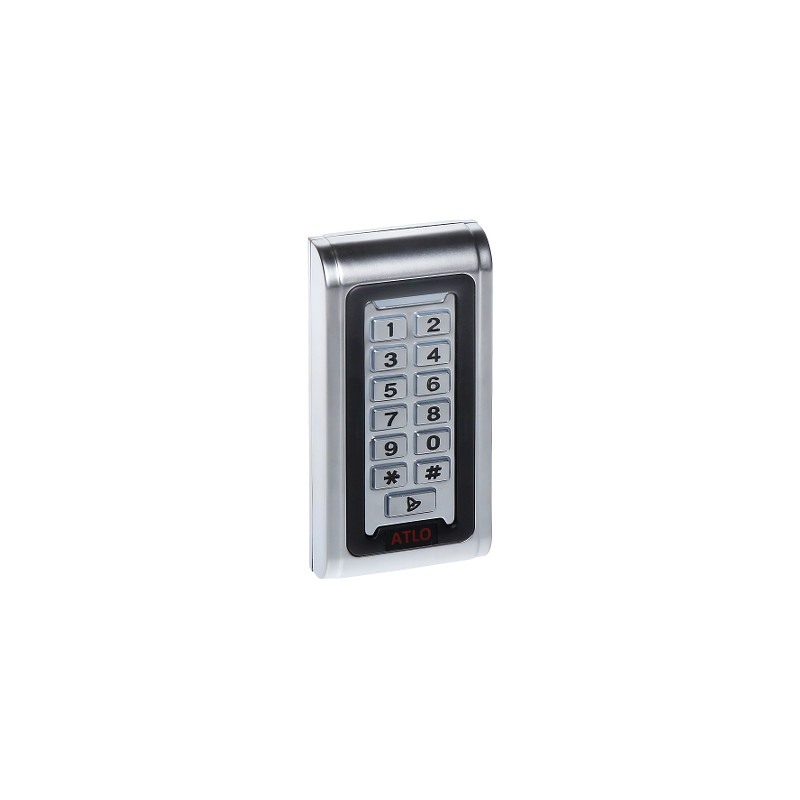

Autonomous Keypad RFID 125kHz Reader IP68 Slim Metal Outdoor Lock ATLO ATLO-KRM-821
zł269.62
Tax included
The outdoor, autonomous ATLO-KRM-821 keypad lock is a professional access control solution that combines modern design with top-tier functionality. The device is designed to operate in harsh weather conditions, as confirmed by its high IP68 ingress protection rating. Its solid, slim-profile metal housing allows for installation in spaces with limited room, such as fence posts or narrow door frames.
The main advantage of this device is its autonomy – the lock does not require an external controller for proper operation, which significantly simplifies installation and reduces system costs. Users can choose from three identification methods: via 125kHz Unique RFID proximity card, by entering an individual PIN code, or a combination of both methods, which greatly increases the security level of the protected site.
The lock offers a rich set of additional features, such as blue keypad backlighting for easier operation after dark, a built-in doorbell button, and acoustic and visual operating status indicators. The system can store up to 2000 users, making it an ideal solution for single-family homes, as well as small offices or industrial facilities. The device also supports advanced alarm functions, including an open door alarm, which prevents unauthorized access through ajar entrances. Thanks to the support for an exit button and a door contact sensor, the ATLO-KRM-821 provides a complete access control point.
Autonomous Keypad RFID 125kHz Reader IP68 Slim Metal Outdoor Lock
Model: ATLO ATLO-KRM-821
EAN: 6931240084199 SKU: 931084190
- Autonomous operation without the need for an external controller
- Support for up to 2000 indexed users
- Three identification modes: Card, PIN, Card + PIN
- High IP68 ingress protection rating for outdoor installation
- Solid metal housing with an aesthetic, slim profile
- Blue button backlight for easy operation at night
- Compatible with door sensors and exit buttons
- Ability to connect an additional ATLO-R series reader (dual-sided control)
- Integrated doorbell button
- Wide operating temperature range from -45°C to 60°C
Description
The outdoor, autonomous ATLO-KRM-821 keypad lock is a professional access control solution that combines modern design with top-tier functionality. The device is designed to operate in harsh weather conditions, as confirmed by its high IP68 ingress protection rating. Its solid, slim-profile metal housing allows for installation in spaces with limited room, such as fence posts or narrow door frames.
The main advantage of this device is its autonomy – the lock does not require an external controller for proper operation, which significantly simplifies installation and reduces system costs. Users can choose from three identification methods: via 125kHz Unique RFID proximity card, by entering an individual PIN code, or a combination of both methods, which greatly increases the security level of the protected site.
The lock offers a rich set of additional features, such as blue keypad backlighting for easier operation after dark, a built-in doorbell button, and acoustic and visual operating status indicators. The system can store up to 2000 users, making it an ideal solution for single-family homes, as well as small offices or industrial facilities. The device also supports advanced alarm functions, including an open door alarm, which prevents unauthorized access through ajar entrances. Thanks to the support for an exit button and a door contact sensor, the ATLO-KRM-821 provides a complete access control point.
Specification
Card support standard
Unique EM 125kHz - standard RFID technology allowing data reading via radio waves at a carrier frequency of 125 kHz without the need for line-of-sight.
Card read range
Maximum up to 6 cm (depending on the transponder used).
Autonomous operation
Yes - the device has built-in memory and control logic; it does not require a computer or external controllers.
System capacity
Support for up to 2000 users (each assigned with a unique code or card).
User interface
Built-in numerical keypad with blue LED backlight; doorbell button.
Signaling
Audible (buzzer) and visual (LED status indicators).
Power supply
12 V DC ± 10% (stabilized DC power supply required).
Power consumption
Maximum 85 mA in operating mode.
Control outputs
NO/NC relay output with 3 A / 24 V DC contact rating.
Administrator functions
Full programming from the keypad level; adding and deleting individual cards and PINs; changing user PINs; setting lock release time (door open time); resetting to default settings.
Software and configuration
The device features a built-in programming interface operated directly from the device's keypad. The device's operating system allows for precise management of the 2000-user database via indexing. The administrator can configure relay operating modes, bolt hold time, and define access rules (card only, code only, or both simultaneously). The system also supports a 'tamper' function that reacts to unauthorized housing opening and allows for integration with an alarm system by signaling a door left ajar. The device logic also enables the connection of an external Wiegand reader for dual-sided control.
Security and environment
IP68 ingress protection class (fully dustproof and protected against the effects of continuous immersion in water); Tamper output: None in this model.
Operating conditions
Temperature: -45 °C ... 60 °C; Humidity: 10 ... 90 % (non-condensing).
Housing and Color
Metal - Slim profile; Color Silver / Black.
Content
1x ATLO-KRM-821 keypad lock
1x Set of mounting screws
1x Housing key
1x User manual
Dimensions, Weight
Product dimensions: 22 x 58 x 120 mm (D x W x H)
Package dimensions: 60 x 190 x 125 mm (D x W x H)
Product weight: 360 g
Weight with packaging: 480 g
