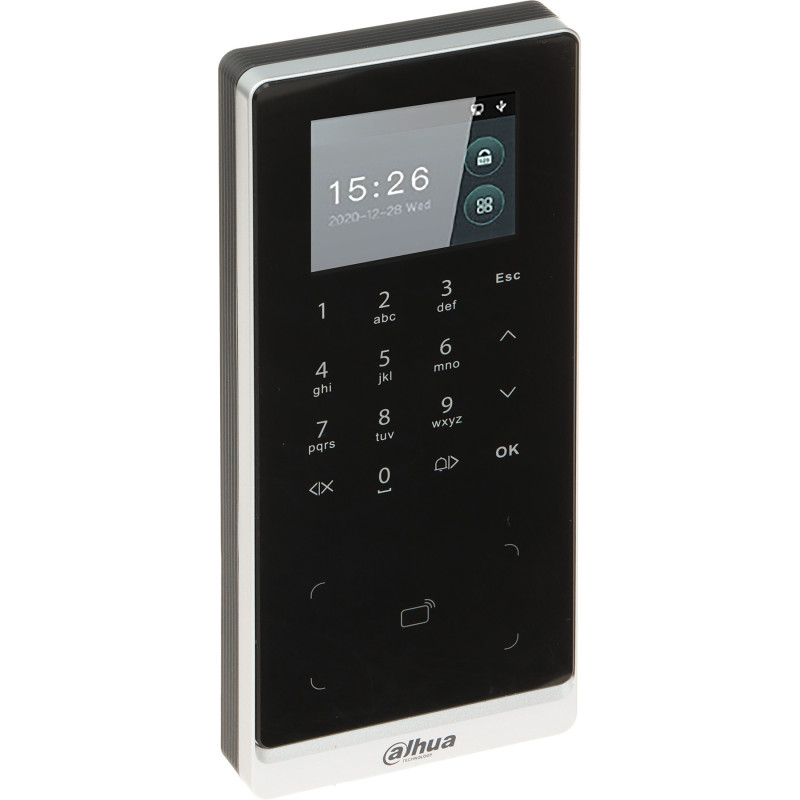

Standalone Wi-Fi Mifare 13.56MHz Access Controller with LCD Touch Keyboard LAN NFC DAHUA ASI2201H-W
zł1,961.85
Tax included
The technologically advanced standalone DAHUA ASI2201H-W access controller is a professional solution designed for the security and comfort of restricted area management. The device integrates a 13.56 MHz Mifare proximity card reader, a precise touch keypad, and a Wi-Fi wireless module, allowing for easy installation even in areas with challenging structural cabling.
The controller features a modern design, combining a silver finish with elegant black and acrylic glass, making it blend perfectly with modern office interiors. Equipped with a 2.4-inch color LCD display, it offers a clear interface for both users and administrators. The device enables single or dual-sided access control (using an external ASR series reader) and can support up to 30,000 users and store up to 150,000 events.
A significant advantage of the device is its broad support for modern technologies, including NFC capability and the ability to be programmed via mobile devices. Thanks to its IP65 rating, the controller exhibits high resistance to dust and water (when properly sealed), enabling operation in various conditions. Integration with alarm systems, support for whitelists and blacklists, and Anti-passback functions guarantee the highest level of protection. It is an ideal choice for companies looking for a reliable and scalable access control system.
Standalone Wi-Fi Mifare 13.56MHz Access Controller with LCD Touch Keyboard LAN NFC
Model: DAHUA ASI2201H-W
EAN: 6931240081464 SKU: 931081462
- Standalone or networked operation with full management via Wi-Fi and LAN
- Built-in 13.56 MHz Mifare proximity card reader and NFC support
- Memory capacity for 30,000 users and 150,000 events
- 2.4-inch color LCD display with 320 x 240 px resolution
- Touch-sensitive keyboard designed for intensive use
- Expandable with external reader (ASR series) for dual-side control
- IP65 ingress protection rating ensuring environmental resistance
- Support for whitelist and blacklist, and advanced schedules (128 types)
- Integration with alarm systems via binary inputs and outputs
- English voice prompts for enhanced user interaction
Description
The technologically advanced standalone DAHUA ASI2201H-W access controller is a professional solution designed for the security and comfort of restricted area management. The device integrates a 13.56 MHz Mifare proximity card reader, a precise touch keypad, and a Wi-Fi wireless module, allowing for easy installation even in areas with challenging structural cabling.
The controller features a modern design, combining a silver finish with elegant black and acrylic glass, making it blend perfectly with modern office interiors. Equipped with a 2.4-inch color LCD display, it offers a clear interface for both users and administrators. The device enables single or dual-sided access control (using an external ASR series reader) and can support up to 30,000 users and store up to 150,000 events.
A significant advantage of the device is its broad support for modern technologies, including NFC capability and the ability to be programmed via mobile devices. Thanks to its IP65 rating, the controller exhibits high resistance to dust and water (when properly sealed), enabling operation in various conditions. Integration with alarm systems, support for whitelists and blacklists, and Anti-passback functions guarantee the highest level of protection. It is an ideal choice for companies looking for a reliable and scalable access control system.
Specification
Identification Standards
Support for 13.56 MHz S50 (Mifare) proximity cards, Reading range up to 5 cm, Support for NFC devices
User Interface
2.4" color LCD display (320 x 240 px), Touch control buttons (keypad), Voice prompts
System Capacity
30,000 indexed users, 30,000 RFID card memory, 30,000 password memory, 150,000 event history, 50 administrator accounts
Communication and Network
LAN 10/100 Base-T (RJ-45) network interface, Built-in Wi-Fi module, RS-485, Wiegand, RS-232
Inputs and Outputs
3 input lines (cooperation with door sensor, exit button), 3 output lines (lock control, doorbell connector), Alarm Inputs/Outputs: 2 / 1
Logic and Schedules
128 time schedules, 128 time zones, Holiday settings, 6 access groups, Anti-passback
Security
Tamper detection (removal from mounting surface), Forced entry alarm, Door unclosed alarm, Whitelist / Blacklist
Control Software
Support for SmartPSS AC and DSS Pro platforms. The dedicated SmartPSS AC software is a professional application for comprehensive access control management. It enables remote configuration of controller parameters, creation of advanced permission structures, management of thousands of users and their credentials such as RFID cards or PIN codes. The system allows real-time log viewing, access report generation, and full alarm event handling. The DSS Pro platform is a server-based solution for large facilities, offering centralization, CCTV integration, and occupancy analytics.
Remote Management
Access from mobile phone, Remote programming from PC, Firmware updates via network or USB 2.0 port
Factory Configuration
Default administrator login: none, Default administrator password: 88888888
Power Supply and Consumption
Power supply: 12 V DC (direct current), Maximum power consumption: 1 A
Environmental Parameters
Operating temperature: -30 °C ... 65 °C, Permissible humidity: 10 % ... 95 % (non-condensing)
Housing and Build
Material: Plastic (PC + ABS) + Acrylic glass (plexiglass), Color: Black + Silver, Protection rating: IP65 (additional silicone sealing required during installation)
Interface Languages
English
Contents
1x Access Controller ASI2201H-W
1x Mounting accessory kit
1x Wiring harness
Dimensions, Weight
Product dimensions: 25 x 80 x 183 mm (D x W x H)
Package dimensions: 65 x 145 x 250 mm (D x W x H)
Product weight: 260 g
Weight with package: 514 g
