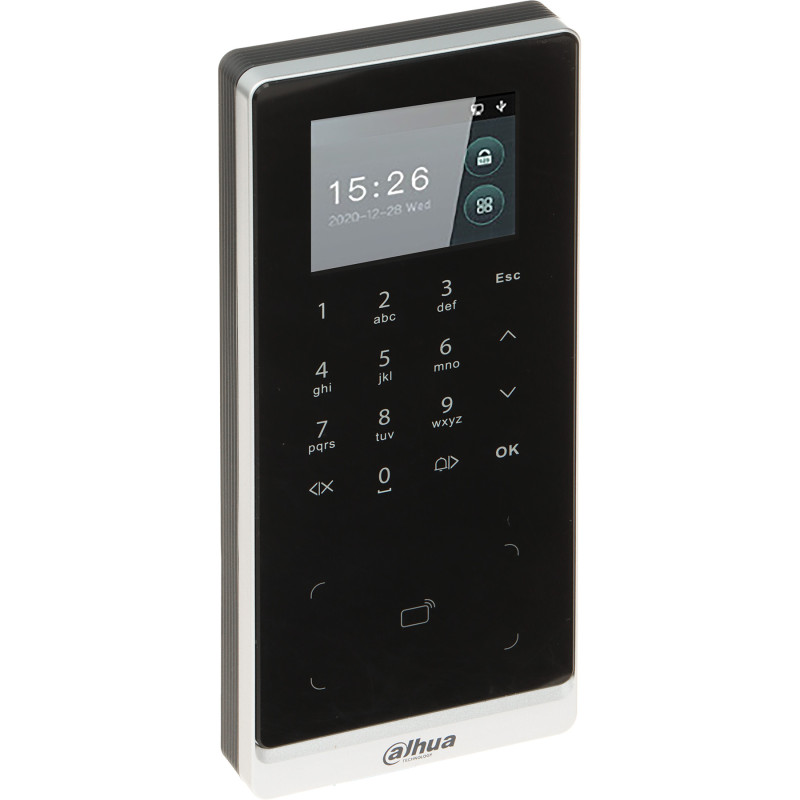

Autonomous Access Controller Wi-Fi Mifare 13.56MHz Touch Keypad LCD LAN NFC DAHUA ASI2201H-W
zł 1 961,85
Tax included
The technologically advanced autonomous DAHUA ASI2201H-W access controller is a professional solution designed for the security and comfort of managing restricted zones. The device integrates a 13.56 MHz Mifare proximity card reader, a precise touch keypad, and a Wi-Fi wireless communication module, allowing for easy installation even in locations with difficult structured cabling.
The controller features a modern design, combining a silver finish with elegant black and acrylic glass, making it blend perfectly into modern office interiors. Equipped with a 2.4-inch color LCD display, it offers a clear interface for the user and administrator. The device enables single-sided or double-sided passage control (using an external ASR series reader) and can handle up to 30,000 users and store up to 150,000 events.
An advantage of the device is its broad support for modern technologies, including NFC support and the ability to program via mobile devices. Thanks to its IP65 ingress protection rating, the controller shows high resistance to dust and water (when properly sealed), which enables its operation in diverse conditions. Integration with an alarm system, support for white and black lists, and Anti-passback functions guarantee the highest level of protection. It is an ideal choice for companies looking for a reliable and scalable access control system.
Autonomous Access Controller Wi-Fi Mifare 13.56MHz Touch Keypad LCD LAN NFC
Model: DAHUA ASI2201H-W
EAN: 6931240081464 SKU: 931081462
- Autonomous or network operation with full management via Wi-Fi and LAN
- Built-in 13.56 MHz Mifare proximity card reader and NFC support
- Memory capacity for 30,000 users and 150,000 events
- 2.4-inch color LCD display with 320 x 240 px resolution
- Touch keypad resistant to intensive use
- Expandable with an external reader (ASR series) for dual-sided control
- IP65 ingress protection rating providing resistance to outdoor conditions
- Support for white and black lists and advanced schedules (128 types)
- Integration with alarm systems via binary inputs and outputs
- English voice prompts to facilitate interaction
Description
The technologically advanced autonomous DAHUA ASI2201H-W access controller is a professional solution designed for the security and comfort of managing restricted zones. The device integrates a 13.56 MHz Mifare proximity card reader, a precise touch keypad, and a Wi-Fi wireless communication module, allowing for easy installation even in locations with difficult structured cabling.
The controller features a modern design, combining a silver finish with elegant black and acrylic glass, making it blend perfectly into modern office interiors. Equipped with a 2.4-inch color LCD display, it offers a clear interface for the user and administrator. The device enables single-sided or double-sided passage control (using an external ASR series reader) and can handle up to 30,000 users and store up to 150,000 events.
An advantage of the device is its broad support for modern technologies, including NFC support and the ability to program via mobile devices. Thanks to its IP65 ingress protection rating, the controller shows high resistance to dust and water (when properly sealed), which enables its operation in diverse conditions. Integration with an alarm system, support for white and black lists, and Anti-passback functions guarantee the highest level of protection. It is an ideal choice for companies looking for a reliable and scalable access control system.
Specification
Identification standards
Support for 13.56 MHz S50 (Mifare) proximity cards, Reading range up to 5 cm, Support for NFC devices
User interface
2.4" color LCD display (320 x 240 px), Touch control buttons (keypad), Voice prompts
System capacity
30,000 indexed users, 30,000 RFID card memory, 30,000 password memory, 150,000 event history, 50 administrator accounts
Communication and network
LAN 10/100 Base-T interface (RJ-45), Built-in Wi-Fi module, RS-485, Wiegand, RS-232
Inputs and Outputs
3 input lines (cooperation with door sensor, exit button), 3 output lines (lock control, doorbell connector), Alarm Inputs/Outputs: 2 / 1
Logic and Schedules
128 time schedules, 128 time zones, Holiday settings, 6 access groups, Anti-passback
Security
Tamper detection (detachment from the surface), Forced entry signaling, Door not closed alarm, White list / Black list
Control software
Support for SmartPSS AC and DSS Pro platforms. The dedicated SmartPSS AC software is a professional application for comprehensive access control management. It enables remote configuration of controller parameters, creation of advanced permission structures, management of a database of thousands of users and their credentials such as RFID cards or PIN codes. The system allows for real-time log viewing, generation of access reports, and full support for alarm events. In turn, the DSS Pro platform is a server solution for large facilities, offering centralization, integration with CCTV, and attendance analytics.
Remote management
Mobile phone access, Remote programming from a computer, Software update via network or USB 2.0 port
Factory configuration
Default administrator login: none, Default administrator password: 88888888
Power supply and power consumption
Power supply: 12 V DC (direct current), Maximum power consumption: 1 A
Environmental parameters
Operating temperature: -30 °C ... 65 °C, Permissible humidity: 10 % ... 95 % (non-condensing)
Housing and finish
Material: Plastic (PC + ABS) + Acrylic glass (plexiglass), Color: Black + Silver, Ingress protection: IP65 (additional silicone sealing required during installation)
Interface languages
English
Contents
1x ASI2201H-W access controller
1x Mounting accessories kit
1x Wiring harness
Dimensions, Weight
Product dimensions: 25 x 80 x 183 mm (D x W x H)
Package dimensions: 65 x 145 x 250 mm (D x W x H)
Product weight: 260 g
Weight with packaging: 514 g
