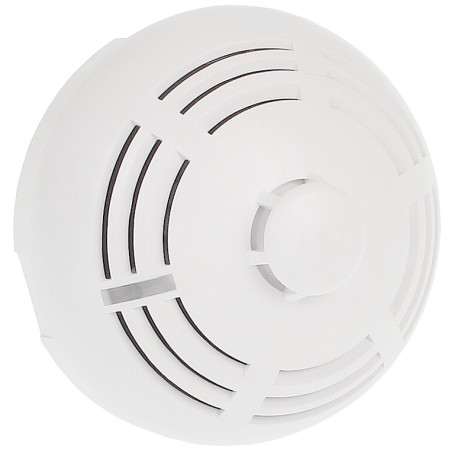

Wireless smoke and heat detector fire alarm system dual fire sensor SATEL ASD-200
zł383.45
Tax included
The wireless ASD-200 detector is an advanced device designed to provide the maximum level of fire safety in residential, office, and industrial facilities. This device is a unique combination of two detection technologies: a photoelectric visible smoke sensor and a thermal sensor. Thanks to this synergy, the sensor is capable of detecting a fire at a very early stage, regardless of whether it is characterized by slow smoldering and a large amount of smoke, or by a rapid temperature rise without visible fumes.
A key advantage of the ASD-200 model is its full compatibility with professional wireless ABAX and ABAX2 systems. The use of modern radio protocols allows for stable operation in difficult conditions and achieving impressive communication ranges, reaching up to 2000 meters in open terrain. The device is equipped with an integrated 85 dB acoustic indicator and an LED, which enables it to operate in autonomous mode – the detector will warn occupants of a threat even in the absence of a connection to the alarm control panel.
The product is characterized by exceptional energy efficiency. The special "ECO" function, dedicated to the ABAX2 system, allows for up to a fourfold extension of operating time on a single CR123A lithium battery, which significantly reduces operating costs and the frequency of service visits. Additionally, the built-in self-diagnostic system constantly monitors the cleanliness of the optical chamber and the technical condition of the sensor, informing about the need for maintenance. A solid housing with tamper protection protects against unauthorized opening, making the ASD-200 a reliable element of any modern Smart Home and Security system.
Wireless smoke and heat detector fire alarm system dual fire sensor
Model: SATEL ASD-200
EAN: 6931240078884 SKU: 931078889
- Two-way radio communication in the 868 MHz band
- Dual detection: photoelectric smoke sensor and thermal sensor
- Full compatibility with ABAX and ABAX2 systems
- Autonomous operation capability as an independent detector
- Communication range up to 2000 m in open terrain (with ACU-220)
- ECO function extending battery life up to 4 times
- Built-in acoustic (buzzer) and optical (LED) indicator
- Advanced self-diagnostics monitoring the optical chamber status
- Tamper protection against housing opening
- Remote configuration and firmware update
Description
The wireless ASD-200 detector is an advanced device designed to provide the maximum level of fire safety in residential, office, and industrial facilities. This device is a unique combination of two detection technologies: a photoelectric visible smoke sensor and a thermal sensor. Thanks to this synergy, the sensor is capable of detecting a fire at a very early stage, regardless of whether it is characterized by slow smoldering and a large amount of smoke, or by a rapid temperature rise without visible fumes.
A key advantage of the ASD-200 model is its full compatibility with professional wireless ABAX and ABAX2 systems. The use of modern radio protocols allows for stable operation in difficult conditions and achieving impressive communication ranges, reaching up to 2000 meters in open terrain. The device is equipped with an integrated 85 dB acoustic indicator and an LED, which enables it to operate in autonomous mode – the detector will warn occupants of a threat even in the absence of a connection to the alarm control panel.
The product is characterized by exceptional energy efficiency. The special "ECO" function, dedicated to the ABAX2 system, allows for up to a fourfold extension of operating time on a single CR123A lithium battery, which significantly reduces operating costs and the frequency of service visits. Additionally, the built-in self-diagnostic system constantly monitors the cleanliness of the optical chamber and the technical condition of the sensor, informing about the need for maintenance. A solid housing with tamper protection protects against unauthorized opening, making the ASD-200 a reliable element of any modern Smart Home and Security system.
Specification
Operating system and Compatibility
The device works with two-way wireless systems ABAX and ABAX2. Supported controllers include ACU-220, ACU-280, ACU-120, and ACU-270, as well as integrated control panels of the INTEGRA and VERSA series.
Detection methods
Photoelectric visible smoke detector (compliant with EN 54-7) and heat detector (compliant with EN 54-5, class A1R - responding to temperature threshold exceedance or sudden temperature rise).
Local signaling
Built-in piezoelectric transducer (buzzer) generating a signal of over 85 dB at a distance of 3m. Optical signaling provided by a red LED.
Frequency band
868.0 MHz ... 868.6 MHz; two-way, encrypted radio transmission ensuring a high level of security.
Radio communication range
Up to 2000 m in open terrain when working with ACU-220 (ABAX2), up to 1600 m with ACU-280 (ABAX2), up to 500 m in the ABAX system.
Power supply and efficiency
CR123A 3 V lithium battery. Battery life is approximately 2 years. Standby power consumption is only 30 µA.
ECO technology
Available only in the ABAX2 system. Allows for dynamic energy management and less frequent polling of the detector by the controller, resulting in up to 400% longer battery life compared to standard modes.
Self-diagnostics and Service
Monitoring system for optical chamber contamination. The detector automatically reports the need to clean the sensor, which prevents false alarms.
Tamper protection
Tamper contact responding to housing opening and tearing off the mounting surface, sending immediate information to the alarm control panel.
Integrated temperature sensor
Additional ambient temperature sensor allowing for monitoring room conditions (measuring range compliant with ABAX2 system specification).
Autonomous mode
The detector has certified capability for smoke and heat detection and audible alerting even without a connection to an alarm control panel.
Environmental parameters
Operating temperature in the range from 0 °C to 55 °C. Device intended for indoor installation.
Software and system capabilities
ABAX2/ABAX system software supporting the ASD-200 detector offers advanced management and diagnostic capabilities. The user and installer have access to full, remote configuration of smoke and temperature sensor sensitivity from the DLOADX software or mobile application. The software allows for monitoring battery level in real-time and precise checking of the optical chamber contamination level (percentage value). Thanks to two-way communication, the detector's firmware can be updated wirelessly without the need for physical access to the device. The system ensures intelligent radio channel management, automatically bypassing interference, which guarantees the highest response speed to alarm events.
Standards and Certificates
Compliance with EN 54-7 (smoke) and EN 54-5 (heat) standards. Manufacturer's CE declaration.
Mechanical construction
Housing made of high-quality white ABS plastic. Device diameter 108 mm, height 54 mm.
Contents
1x ASD-200 detector
1x CR123A battery
1x Mounting base
1x Set of mounting plugs and screws
1x User manual
Dimensions, Weight
Product dimensions: 108 x 108 x 54 mm (Depth x Width x Height)
Package dimensions: 120 x 120 x 70 mm (Depth x Width x Height)
Product weight: 160 g
Weight with packaging: 226 g
