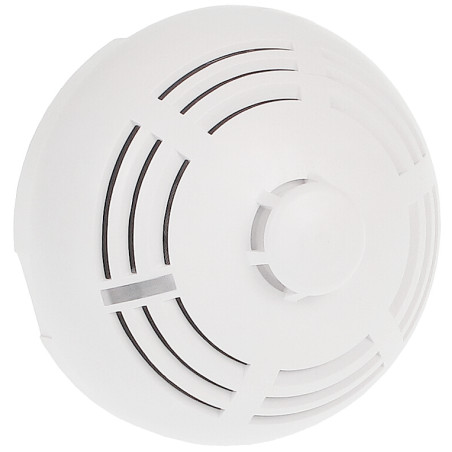

Wireless smoke and heat detector fire alarm system radio fire dual fire sensor SATEL ASD-200
zł383.45
Tax included
The ASD-200 wireless detector is an advanced device designed to provide the maximum level of fire safety in residential, office, and industrial facilities. This device is a unique combination of two detection technologies: a photoelectric visible smoke sensor and a thermal sensor. Thanks to this synergy, the detector is able to detect a fire at a very early stage, regardless of whether it is characterized by slow smoldering and a large amount of smoke, or by a rapid temperature increase without visible fumes.
A key advantage of the ASD-200 model is its full compatibility with professional wireless systems ABAX and ABAX2. The use of modern radio protocols allows for stable operation in difficult conditions and reaching impressive communication ranges, reaching up to 2000 meters in an open area. The device has been equipped with an integrated acoustic siren with a sound level of 85 dB and an LED indicator, which allows it to work in an autonomous mode – the detector will warn household members about a threat even in the absence of connection with the alarm control panel.
The product is characterized by exceptional energy efficiency. A special "ECO" function, dedicated to the ABAX2 system, allows for up to four times longer battery life on a single CR123A lithium battery, which significantly reduces operating costs and the frequency of service visits. Additionally, the built-in self-diagnostic system constantly monitors the cleanliness of the optical chamber and the technical condition of the sensor, informing about the need for maintenance. A robust housing with tamper protection protects against unauthorized opening, which makes the ASD-200 a reliable element of every modern Smart Home and Security system.
Wireless smoke and heat detector fire alarm system radio fire dual fire sensor
Model: SATEL ASD-200
EAN: 6931240078884 SKU: 931078889
- Two-way radio communication in the 868 MHz band
- Dual detection: photoelectric smoke sensor and thermal sensor
- Full compatibility with ABAX and ABAX2 systems
- Autonomous operation mode as an independent detector
- Communication range up to 2000 m in open area (with ACU-220)
- ECO function extending battery life up to 4 times
- Built-in acoustic (buzzer) and optical (LED) indicator
- Advanced self-diagnostics monitoring the optical chamber status
- Tamper protection against opening the housing
- Remote configuration and firmware updates
Description
The ASD-200 wireless detector is an advanced device designed to provide the maximum level of fire safety in residential, office, and industrial facilities. This device is a unique combination of two detection technologies: a photoelectric visible smoke sensor and a thermal sensor. Thanks to this synergy, the detector is able to detect a fire at a very early stage, regardless of whether it is characterized by slow smoldering and a large amount of smoke, or by a rapid temperature increase without visible fumes.
A key advantage of the ASD-200 model is its full compatibility with professional wireless systems ABAX and ABAX2. The use of modern radio protocols allows for stable operation in difficult conditions and reaching impressive communication ranges, reaching up to 2000 meters in an open area. The device has been equipped with an integrated acoustic siren with a sound level of 85 dB and an LED indicator, which allows it to work in an autonomous mode – the detector will warn household members about a threat even in the absence of connection with the alarm control panel.
The product is characterized by exceptional energy efficiency. A special "ECO" function, dedicated to the ABAX2 system, allows for up to four times longer battery life on a single CR123A lithium battery, which significantly reduces operating costs and the frequency of service visits. Additionally, the built-in self-diagnostic system constantly monitors the cleanliness of the optical chamber and the technical condition of the sensor, informing about the need for maintenance. A robust housing with tamper protection protects against unauthorized opening, which makes the ASD-200 a reliable element of every modern Smart Home and Security system.
Specification
Operating system and Compatibility
The device works with two-way wireless systems ABAX and ABAX2. Supported controllers include ACU-220, ACU-280, ACU-120 and ACU-270, as well as integrated control panels of the INTEGRA and VERSA series.
Detection methods
Photoelectric visible smoke detector (compliant with EN 54-7) and heat detector (compliant with EN 54-5, class A1R - reacting to exceeding the temperature threshold or its sudden increase).
Local signaling
Built-in piezoelectric transducer (buzzer) generating a signal with an intensity of over 85 dB at a distance of 3m. Optical signaling implemented by a red LED.
Frequency band
868.0 MHz ... 868.6 MHz; two-way, encrypted radio transmission ensuring a high level of security.
Radio communication range
Up to 2000 m in an open area when working with ACU-220 (ABAX2), up to 1600 m with ACU-280 (ABAX2), up to 500 m in the ABAX system.
Power supply and efficiency
CR123A 3 V lithium battery. Battery life is approximately 2 years. Power consumption in standby mode is only 30 µA.
ECO technology
Available only in the ABAX2 system. It allows for dynamic energy management and less frequent polling of the detector by the controller, which results in up to 400% longer battery life compared to standard modes.
Self-diagnostics and Service
System for monitoring the contamination of the optical chamber. The detector automatically reports the need for sensor cleaning, which prevents false alarms.
Tamper protection
Tamper contact reacting to opening the housing and tearing off from the substrate, sending immediate information to the alarm control panel.
Integrated temperature sensor
Additional ambient temperature sensor allowing for monitoring of room conditions (measurement range compliant with the ABAX2 system specification).
Autonomous mode
The detector has a certified capability to detect smoke and heat and to provide sound alarms even without a connection to an alarm control panel.
Environmental parameters
Operating temperature in the range from 0 °C to 55 °C. Device intended for indoor installation.
Software and system capabilities
The ABAX2/ABAX system software supporting the ASD-200 detector offers advanced management and diagnostic capabilities. The user and installer have access to full, remote configuration of smoke and temperature sensor sensitivity from the DLOADX software or mobile application level. The software allows for monitoring the battery level in real time and precise checking of the optical chamber contamination level (percentage value). Thanks to two-way communication, the detector firmware can be updated wirelessly without the need for physical access to the device. The system provides intelligent radio channel management, automatically avoiding interference, which guarantees the highest reaction speed to alarm events.
Standards and Certificates
Compliance with EN 54-7 (smoke) and EN 54-5 (heat) standards. Manufacturer's CE declaration.
Mechanical construction
Housing made of high-quality white ABS plastic. Device diameter 108 mm, height 54 mm.
Content
1x ASD-200 detector
1x CR123A battery
1x Mounting base
1x Set of mounting plugs and screws
1x User manual
Dimensions, Weight
Product dimensions: 108 x 108 x 54 mm (Depth x Width x Height)
Package dimensions: 120 x 120 x 70 mm (Depth x Width x Height)
Product weight: 160 g
Weight with package: 226 g
