- New

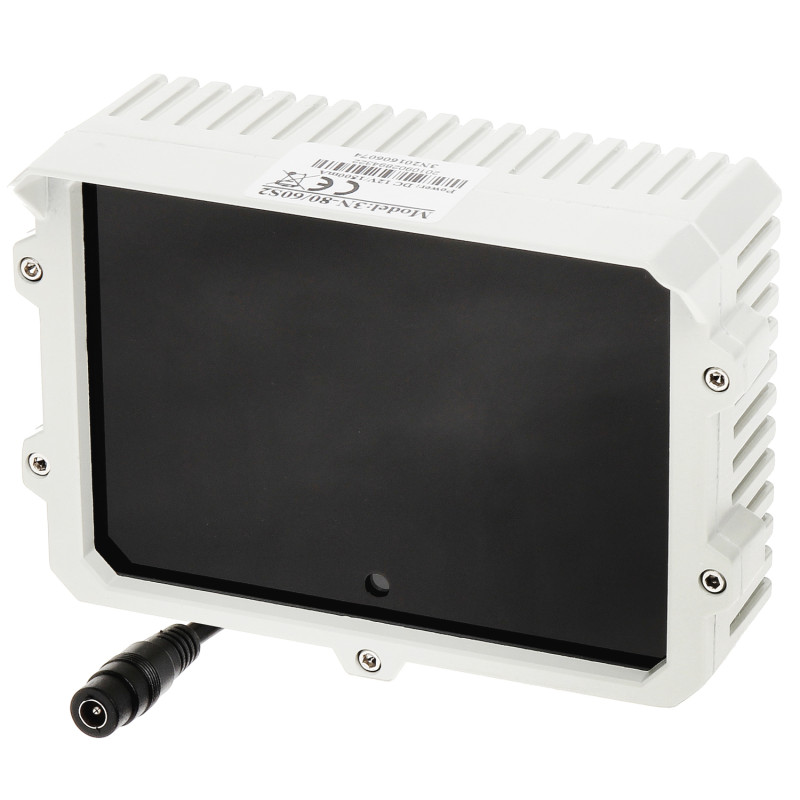

Outdoor IR Infrared Illuminator 80m 60 Degrees 850nm IP66 Metal Housing Twilight Sensor CCTV Delta 3N-80/60S2
zł253.87
Tax included
The 3N-80/60S2 outdoor infrared illuminator is a high-quality device designed to radically improve the visibility of video surveillance systems in complete darkness or very low light conditions. This model features an impressive range of up to 80 meters, making it an ideal solution for monitoring large outdoor areas such as parking lots, construction sites, gardens, or industrial zones. The 60-degree beam angle ensures wide and uniform coverage of the camera's field of view, eliminating the 'flashlight' effect and allowing for detailed identification of objects in the monitored area.
One of the key advantages of the device is its built-in, automatic twilight switch. Thanks to this feature, the illuminator is completely maintenance-free – it turns on automatically when the ambient light level falls below the camera's efficiency threshold and turns off at dawn. This operation not only saves electrical energy but also extends the life of the IR LEDs. The solid metal housing guarantees high resistance to mechanical damage and acts of vandalism. The IP66 ingress protection rating confirms full resistance to dust and strong water jets, allowing the device to work flawlessly in the toughest weather conditions, including heavy rain or snowstorms.
The illuminator emits an 850nm wavelength, which is the standard in professional industrial television. This light is practically invisible to the human eye (only a faint red glow from the diodes themselves is visible), while it is perfectly recorded by day/night camera sensors. The use of an additional IR illuminator allows cameras to work in black-and-white mode while maintaining high sharpness and low noise levels, which is crucial for motion detection systems and license plate or face recognition. The device is powered by 12V DC, which facilitates integration with existing CCTV power systems. Thanks to the universal bracket, the installation of the illuminator is quick and allows for precise adjustment of the lighting direction.
Outdoor IR Infrared Illuminator 80m 60 Degrees 850nm IP66 Metal Housing Twilight Sensor CCTV
Model: Delta 3N-80/60S2
EAN: 6931240071656 SKU: 931071650
- Long-range infrared illumination up to 80 meters
- Wide 60-degree beam angle for optimal area coverage
- Built-in automatic twilight sensor (photocell)
- Solid, vandal-resistant metal housing
- High IP66 ingress protection rating, weather-resistant
- Standard 850nm wavelength compatible with most cameras
- Low-voltage 12V DC power supply, safe for installation
- Easy wall or ceiling mounting via adjustable bracket
Description
The 3N-80/60S2 outdoor infrared illuminator is a high-quality device designed to radically improve the visibility of video surveillance systems in complete darkness or very low light conditions. This model features an impressive range of up to 80 meters, making it an ideal solution for monitoring large outdoor areas such as parking lots, construction sites, gardens, or industrial zones. The 60-degree beam angle ensures wide and uniform coverage of the camera's field of view, eliminating the 'flashlight' effect and allowing for detailed identification of objects in the monitored area.
One of the key advantages of the device is its built-in, automatic twilight switch. Thanks to this feature, the illuminator is completely maintenance-free – it turns on automatically when the ambient light level falls below the camera's efficiency threshold and turns off at dawn. This operation not only saves electrical energy but also extends the life of the IR LEDs. The solid metal housing guarantees high resistance to mechanical damage and acts of vandalism. The IP66 ingress protection rating confirms full resistance to dust and strong water jets, allowing the device to work flawlessly in the toughest weather conditions, including heavy rain or snowstorms.
The illuminator emits an 850nm wavelength, which is the standard in professional industrial television. This light is practically invisible to the human eye (only a faint red glow from the diodes themselves is visible), while it is perfectly recorded by day/night camera sensors. The use of an additional IR illuminator allows cameras to work in black-and-white mode while maintaining high sharpness and low noise levels, which is crucial for motion detection systems and license plate or face recognition. The device is powered by 12V DC, which facilitates integration with existing CCTV power systems. Thanks to the universal bracket, the installation of the illuminator is quick and allows for precise adjustment of the lighting direction.
Specification
Device type
Outdoor Infrared Illuminator (IR Illuminator)
IR range
80 meters (maximum range depends on the sensitivity of the camera used and atmospheric conditions)
Beam angle
60° - provides wide scene illumination without overexposing the central point
Optical wavelength
850 nm - radiation invisible to humans, visible as red LED dots
Twilight switch
Yes - built-in photoresistor automatically controls device operation based on light intensity
Housing
Metal - made of high-quality aluminum alloy, resistant to corrosion and damage
Ingress protection rating
IP66 - dust-tight and protected against strong water jets (rain, snow, pressure washing)
Power supply
12V DC - direct current, recommended power supply with a minimum output of 1.5A
Power consumption
1.1 A in full power mode
Operating temperature
-20 °C ... 50 °C - adapted for year-round operation
Bracket adjustment
Full vertical and horizontal adjustment allowing for precise light beam direction
Application
CCTV surveillance systems, enhancement of IP and AHD/CVI/TVI camera night mode
Technical support
Product covered by full technical support from Delta CCTV
Certificates
CE - product meets all EU safety and electromagnetic standards
Contents
1x Infrared illuminator 3N-80/60S2
1x Integrated mounting bracket
1x User manual
Dimensions, Weight
Product dimensions: 197 x 150 x 105 mm (D x W x H)
Package dimensions: 165 x 180 x 165 mm (D x W x H)
Product weight: 690 g
Weight with packaging: 905 g
