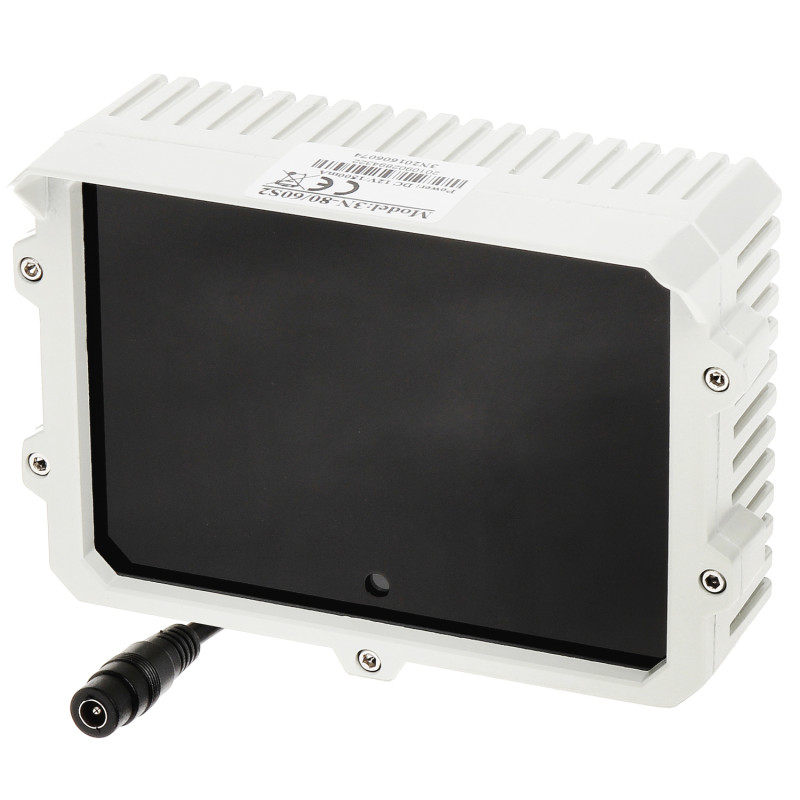

External Infrared Illuminator 80m 60 Degrees 850nm IP66 Metal Housing Twilight Sensor CCTV Delta 3N-80/60S2
zł253.87
Tax included
The 3N-80/60S2 external infrared illuminator is a high-quality device designed to dramatically improve the visibility of video surveillance systems in conditions of complete darkness or very low light. This model features an impressive range of up to 80 meters, making it an ideal solution for monitoring large outdoor areas, such as parking lots, construction sites, gardens, or industrial areas. The 60-degree beam angle provides wide and uniform coverage of the camera's field of view, eliminating the 'flashlight' effect and allowing for detailed identification of objects in the monitored area.
One of the key advantages of the device is the built-in automatic twilight switch. Thanks to this solution, the illuminator is completely maintenance-free – it switches on automatically when the ambient light level drops below the camera's sensitivity threshold and switches off at dawn. This operation not only saves electrical energy but also extends the life of the IR LEDs. The sturdy metal housing guarantees high resistance to mechanical damage and vandalism. The IP66 protection rating confirms full resistance to dust and strong water jets, allowing the device to operate without failure in the toughest weather conditions, including heavy rain or snowstorms.
The illuminator emits an 850 nm wavelength, which is standard in professional CCTV systems. This light is practically invisible to the human eye (only a faint red glow from the LEDs themselves is visible), yet it is perfectly registered by day/night camera sensors. The use of an additional IR illuminator allows cameras to operate in black-and-white mode while maintaining high sharpness and low noise levels, which is crucial for motion detection systems and license plate or face recognition. The device is powered by 12V DC, which facilitates integration with existing CCTV power systems. Thanks to the universal bracket, mounting the illuminator is quick and allows for precise adjustment of the illumination direction.
External Infrared Illuminator 80m 60 Degrees 850nm IP66 Metal Housing Twilight Sensor CCTV
Model: Delta 3N-80/60S2
EAN: 6931240071656 SKU: 931071650
- Long-range infrared illumination up to 80 meters
- Wide 60-degree beam angle for optimal area coverage
- Built-in automatic twilight sensor (photocell)
- Robust, vandal-resistant metal housing
- High IP66 ingress protection rating, weather-resistant
- Standard 850 nm wavelength compatible with most cameras
- Low-voltage 12V DC power supply, safe for installations
- Easy wall or ceiling mounting with an adjustable bracket
Description
The 3N-80/60S2 external infrared illuminator is a high-quality device designed to dramatically improve the visibility of video surveillance systems in conditions of complete darkness or very low light. This model features an impressive range of up to 80 meters, making it an ideal solution for monitoring large outdoor areas, such as parking lots, construction sites, gardens, or industrial areas. The 60-degree beam angle provides wide and uniform coverage of the camera's field of view, eliminating the 'flashlight' effect and allowing for detailed identification of objects in the monitored area.
One of the key advantages of the device is the built-in automatic twilight switch. Thanks to this solution, the illuminator is completely maintenance-free – it switches on automatically when the ambient light level drops below the camera's sensitivity threshold and switches off at dawn. This operation not only saves electrical energy but also extends the life of the IR LEDs. The sturdy metal housing guarantees high resistance to mechanical damage and vandalism. The IP66 protection rating confirms full resistance to dust and strong water jets, allowing the device to operate without failure in the toughest weather conditions, including heavy rain or snowstorms.
The illuminator emits an 850 nm wavelength, which is standard in professional CCTV systems. This light is practically invisible to the human eye (only a faint red glow from the LEDs themselves is visible), yet it is perfectly registered by day/night camera sensors. The use of an additional IR illuminator allows cameras to operate in black-and-white mode while maintaining high sharpness and low noise levels, which is crucial for motion detection systems and license plate or face recognition. The device is powered by 12V DC, which facilitates integration with existing CCTV power systems. Thanks to the universal bracket, mounting the illuminator is quick and allows for precise adjustment of the illumination direction.
Specification
Device type
External infrared illuminator (IR Illuminator)
IR range
80 meters (maximum range depends on the sensitivity of the camera used and weather conditions)
Beam angle
60 ° - provides wide scene illumination without overexposing the central point
Optical wavelength
850 nm - radiation invisible to humans, visible as red LED dots
Twilight switch
Yes - built-in photoresistor automatically controls the device operation based on light intensity
Housing
Metal - made of high-quality aluminum alloy, resistant to corrosion and damage
Ingress protection class
IP66 - dust-tight and protection against strong water jets (rain, snow, pressure washing)
Power supply
12 V DC - direct current, recommended power supply with a capacity of at least 1.5A
Power consumption
1.1 A in full power mode
Operating temperature
-20 °C ... 50 °C - suitable for year-round operation in most climates
Bracket adjustment
Full vertical and horizontal adjustment allowing for precise aiming of the light beam
Application
CCTV surveillance systems, strengthening the night mode of IP and AHD/CVI/TVI cameras
Technical support
Product covered by full technical support from the manufacturer Delta CCTV
Certificates
CE - product meets all EU safety and electromagnetic standards
Contents
1x Infrared illuminator 3N-80/60S2
1x Integrated mounting bracket
1x User manual
Dimensions, Weight
Product dimensions: 197 x 150 x 105 mm (D x W x H)
Package dimensions: 165 x 180 x 165 mm (D x W x H)
Product weight: 690 g
Weight with package: 905 g
