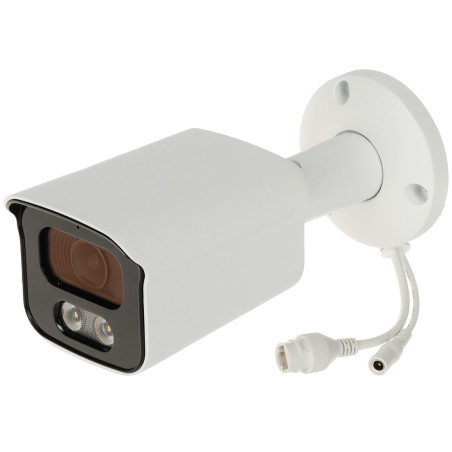

Full-Color 4MPx 2.8mm IP Camera WDR 140dB IVS SONY Starvis Audio

Model: APTI APTI-AI402C3ISP-28W

EAN: 6931240061244 SKU: 931061247

• 4 Mpx Resolution (2688 x 1512) - crystal clear image
• Full-Color Technology - full-color image 24/7, even at night
• SONY Starvis Back-illuminated CMOS sensor - highest sensitivity
• Wide-angle 2.8 mm lens with a 106-degree field of view
• Efficient white light LED illuminator with a range of up to 25 meters
• Built-in microphone for environmental sound recording
• Micro SD card support up to 1TB and built-in 4GB EMMC memory
• Intelligent Video Surveillance (IVS): intrusion, line crossing, face detection
• WDR 140dB - excellent visibility in high-contrast scenes
• Sturdy metal housing with IP67 protection class
• Powered via PoE (802.3af) or 12V DC
• Remote access via free BitVision mobile app (Android/iOS)

Description

The APTI-AI402C3ISP-28W IP camera is an advanced video monitoring device distinguished by its Full-Color technology. Thanks to this, the camera does not have a traditional black-and-white mode but allows for clear, full-color images even in extremely difficult lighting conditions or near-total darkness. Equipped with a high-class 1/2.8-inch SONY Starvis Back-illuminated CMOS sensor, it generates images in 4 Mpx resolution (2688 x 1512), which guarantees exceptional detail of recorded scenes.

Specification

An additional advantage is the built-in microphone enabling sound recording and support for Micro SD cards with an impressive capacity of up to 1TB, allowing for long-term local recording. The camera also offers a wide range of image enhancement functions, including advanced WDR 140dB, which handles high-contrast lighting perfectly, eliminating overexposure and bringing out details from shadows. Thanks to support for PoE (Power over Ethernet) technology, installation is simplified to a single network cable that transmits both data and power.

The biggest advantage of the device is the integrated white light LED illuminator with a range of up to 25 meters, which, combined with the bright F1.0 lens, ensures excellent night visibility. The camera supports modern H.265+ and H.264+ compression algorithms, which significantly reduces disk space and network bandwidth requirements without losing image quality. The sturdy metal housing with IP67 protection class makes the device completely resistant to harsh atmospheric conditions such as heavy rain, dust, or frost, making it an ideal solution for professional outdoor monitoring of properties, offices, and warehouses.

Standard and Resolution

Standard: IP; Resolution: 2688 x 1512 (4 Mpx), 2560 x 1440 (3.7 Mpx), 1920 x 1080 (1080p), 1280 x 720 (720p)

Sensor and Lens

Sensor: 1/2.8 " SONY Starvis Back-illuminated CMOS; Lens: 2.8 mm @ F1.0; Field of view: 106 °

Night Illumination

White light (LED) illuminator range: 25 m; Full-Color technology (no black-and-white mode)

Recording and Memory

Memory card slot: Micro SD card support up to 1TB; Built-in memory: 4 GB EMMC (local storage for photos and recordings)

Compression and Transmission

Compression methods: H.265+ / H.265 / H.264+ / H.264 / MJPEG / AVI / JPEG; Transmission speed: 25 fps @ 4 Mpx

Audio

Built-in microphone; Audio transmission over network; AAC standard compliance

Network Interface

Interface: 10/100 Base-T (RJ-45); ONVIF: 19.12; WEB Server: Built-in; Max. 10 online users

Intelligent Video Surveillance (IVS)

Intrusion (human and vehicle classification), Line crossing (human and vehicle classification), Loitering detection, Crowd detection, Motion detection (human), Face detection

Image Correction Functions

WDR - 140 dB (Wide Dynamic Range); 3D-DNR (Digital Noise Reduction); F-DNR (Defog - precipitation impact reduction); ROI (Region of Interest); Anti-Flicker; BLC; HLC; Sharpness; Mirror; AGC; Automatic White Balance (WB)

Privacy and Security

Privacy zones: max. 3; Video tampering detection; ICR filter (Mechanical infrared filter)

Software and Access

The BitVision mobile app allows for full live view, playback of SD card recordings, and device configuration via the P2P cloud. The iVMS320 program for PC is a professional surveillance system management center, allowing for the support of multiple cameras simultaneously, advanced intelligent event searching, and material archiving. The SearchTool facilitates quick finding and initial configuration of the camera's network parameters in the local LAN network. The software is characterized by stability and an intuitive interface.

Power Supply and Consumption

Power supply: PoE (802.3af), 12 V DC / 310 mA; Power consumption: ≤ 3.7 W

Mechanical Construction

Housing: Compact - Metal; Color: White; Protection class: IP67; Operating temperature: -20 °C ... 60 °C

Physical Parameters

Weight: 0.53 kg; Dimensions: 175 x 73 x 73 mm

Dimensions, Weight

Product dimensions: 73 x 175 x 73 mm (D x W x H)

Package dimensions: 100 x 200 x 100 mm (D x W x H)

Product weight: 530 g

Weight with package: 652 g
