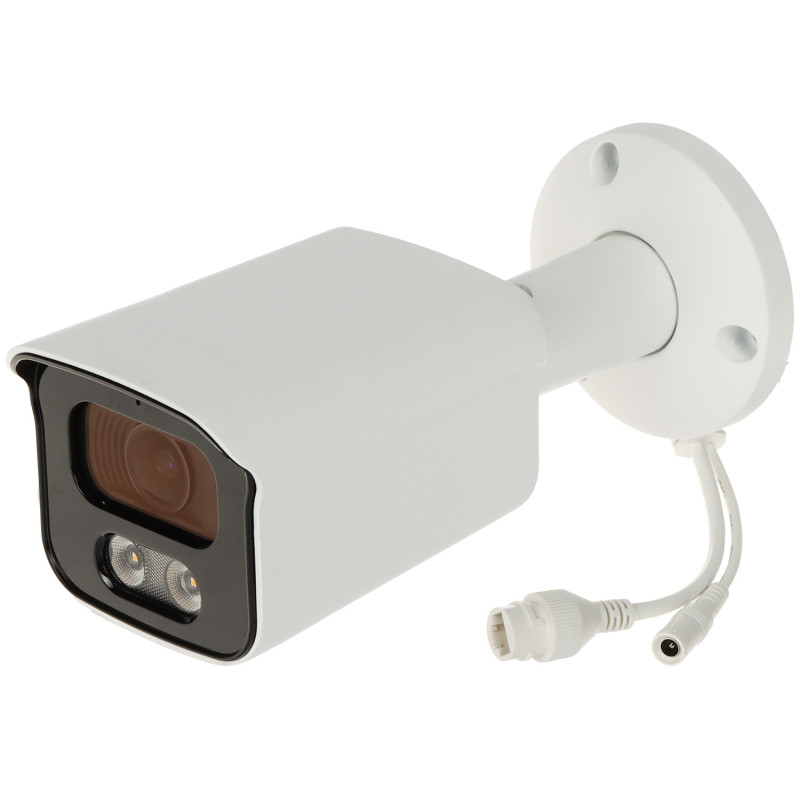

Full-Color 4MPx 2.8mm WDR 140dB IVS SONY Starvis Audio IP Camera

Model: APTI APTI-AI402C3ISP-28W

EAN: 6931240061244 SKU: 931061247

• Resolution 4 Mpx (2688 x 1512) - crystal clear image
• Full-Color technology - color image around the clock, even at night
• SONY Starvis Back-illuminated CMOS sensor - highest sensitivity
• Wide-angle 2.8 mm lens with 106-degree field of view
• Efficient white light illuminator (LED) with a range of up to 25 meters
• Built-in microphone for ambient sound recording
• Support for Micro SD cards up to 1TB and built-in 4GB EMMC memory
• Intelligent Video Surveillance (IVS): intrusion, line crossing, face detection
• WDR 140dB - excellent visibility in high-contrast scenes
• Solid metal housing with IP67 protection class
• Power supply via PoE (802.3af) or 12V DC
• Remote access via free BitVision mobile application (Android/iOS)

Description

The APTI-AI402C3ISP-28W IP camera is an advanced video surveillance device distinguished by Full-Color technology. Thanks to this, the camera does not have a traditional black-and-white mode, but allows for obtaining a sharp, full-color image even in extremely difficult lighting conditions or near-total darkness. Equipped with a high-class 1/2.8-inch SONY Starvis Back-illuminated CMOS sensor, it generates an image with a resolution of 4 Mpx (2688 x 1512), which guarantees exceptional detail of recorded scenes.

Specification

An additional advantage is the built-in microphone enabling sound recording and support for Micro SD cards with an impressive capacity of up to 1TB, which allows for long-term local recording. The camera also offers a wide range of image improvement functions, including advanced 140dB WDR, which copes perfectly with contrasting lighting, eliminating overexposures and bringing out details from shadows. Thanks to support for PoE (Power over Ethernet) technology, installation is simplified to a single network cable that transmits both data and power.

The greatest advantage of the device is the integrated white light illuminator (LED) with a range of up to 25 meters, which, combined with the bright F1.0 lens, ensures excellent visibility at night. The camera supports modern H.265+ and H.264+ compression algorithms, which significantly reduces disk space requirements and network bandwidth without losing image quality. A solid metal housing with IP67 protection class makes the device completely resistant to difficult weather conditions such as heavy rain, dust, or frost, which makes it an ideal solution for professional outdoor monitoring of properties, offices, and warehouses.

Standard and Resolution

Standard: IP; Resolution: 2688 x 1512 (4 Mpx), 2560 x 1440 (3.7 Mpx), 1920 x 1080 (1080p), 1280 x 720 (720p)

Sensor and Lens

Sensor: 1/2.8 " SONY Starvis Back-illuminated CMOS; Lens: 2.8 mm @ F1.0; Viewing angle: 106 °

Night Illumination

White light (LED) illuminator range: 25 m; Full-Color technology (no black-and-white mode)

Recording and Memory

Memory card slot: Micro SD card support up to 1TB; Built-in memory: 4 GB EMMC (local recording of images and footage)

Compression and Transmission

Compression methods: H.265+ / H.265 / H.264+ / H.264 / MJPEG / AVI / JPEG; Transmission speed: 25 fps @ 4 Mpx

Audio

Built-in microphone; Audio transmission over network; AAC standard compatibility

Network Interface

Interface: 10/100 Base-T (RJ-45); ONVIF: 19.12; WEB Server: Built-in; Max. 10 users online

Intelligent Video Analytics (IVS)

Intrusion (human and vehicle classification), Line crossing (human and vehicle classification), Loitering detection, People gathering detection, Motion detection (people), Face detection

Image Correction Functions

WDR - 140 dB (Wide Dynamic Range); 3D-DNR (Digital Noise Reduction); F-DNR (Defog - reduction of precipitation influence); ROI (Quality improvement of selected areas); Anti-Flicker; BLC; HLC; Sharpness; Mirror; AGC; Automatic White Balance (WB)

Privacy and Security

Privacy zones: max. 3; Video tampering detection; ICR filter (Mechanical infrared filter)

Software and Access

The BitVision mobile application allows for full live view, playback of recordings from the SD card, and device configuration via the P2P cloud. The iVMS320 program for PCs is a professional monitoring system management center, allowing for the support of multiple cameras simultaneously, advanced smart event searching, and archiving of materials. The SearchTool utility facilitates quick finding and initial configuration of the camera's network parameters in the local LAN network. The software is characterized by stability and an intuitive interface.

Power Supply and Consumption

Power supply: PoE (802.3af), 12 V DC / 310 mA; Power consumption: ≤ 3.7 W

Mechanical Design

Housing: Compact - Metal; Color: White; Protection class: IP67; Operating temperature: -20 °C ... 60 °C

Physical Parameters

Weight: 0.53 kg; Dimensions: 175 x 73 x 73 mm

Dimensions, Weight

Product dimensions: 73 x 175 x 73 mm (D x W x H)

Packaging dimensions: 100 x 200 x 100 mm (D x W x H)

Product weight: 530 g

Weight with packaging: 652 g
