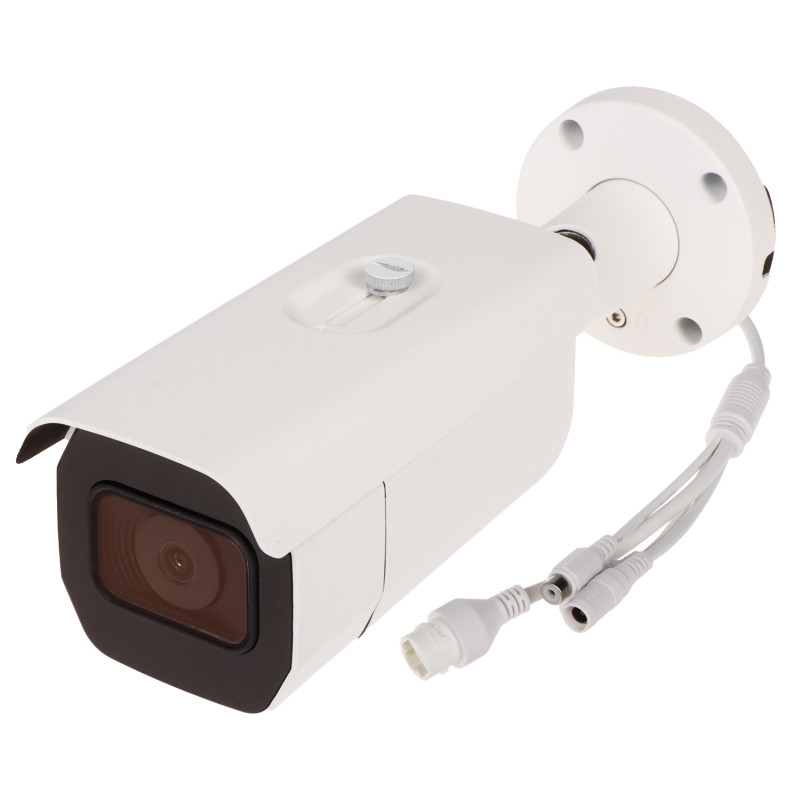

4K UHD 8.3 Mpx IP Camera 6mm IR 60m Metal IP67 P2P BitVision

Model: APTI APTI-AI802C6-60W

EAN: 6931240053041 SKU: 931053047

• Ultra high resolution 4K UHD (3840 x 2160) - 8.3 Mpx
• Sensor 1/2.8" SONY Starvis™ Back-illuminated CMOS
• Fixed lens 6 mm providing a 53° viewing angle
• IR illuminator range up to 60 m for night monitoring
• Intelligent video analytics (IVS): intrusion, line crossing, human and vehicle detection
• Power supply via PoE (802.3af) or standard 12V DC
• Durable metal Compact housing with IP67 ingress protection rating
• Support for H.265+ / H.265 / H.264+ / H.264 codecs
• Mobile access via BitVision app and ONVIF protocol support
• Built-in ICR mechanical infrared filter

Description

The APTI-AI802C6-60W IP camera is an advanced video surveillance solution that combines ultra-high 4K UHD resolution with reliable construction. Equipped with a modern SONY Starvis Back-illuminated CMOS sensor, the device produces crystal-clear 8.3-megapixel images, allowing for the identification of the smallest details even from a distance. With its 6 mm lens, the camera offers a more focused viewing angle, ideal for monitoring specific entrances, gates, or parking lots.

Specification

Users will appreciate the easy remote access via the cloud (P2P) using the free BitVision app for Android and iOS systems. The camera supports the latest H.265+ compression, which allows for significant hard drive space savings while maintaining the highest recording quality. It is an ideal choice for those seeking professional surveillance for their home, business, or industrial facilities.

One of the key advantages of the device is the powerful infrared illuminator with a range of up to 60 meters, which, combined with the mechanical ICR filter, ensures excellent visibility in total darkness. A sturdy metal housing with an IP67 rating guarantees full resistance to harsh weather conditions, such as heavy rain or frost. Intelligent video analytics (IVS), including human and vehicle classification and intrusion detection, significantly reduces the number of false alarms, increasing security levels. Support for PoE (Power over Ethernet) technology simplifies installation, allowing for power and signal transmission via a single network cable.

Standard and Resolution

Standard: IP; Resolution: 3840 x 2160 (8.3 Mpx 4K UHD), 2560 x 1440 (3.7 Mpx), 1920 x 1080 (1080p), 1280 x 720 (720p). Main stream transmission rate: 20 fps @ 8.3 Mpx.

Image Sensor

1/2.8 " SONY Starvis™ Back-illuminated CMOS; ensures high sensitivity and low noise in difficult lighting conditions.

Optics

Lens: 6 mm; Viewing angle: 53 °. Allows for precise observation of selected areas.

Night Illuminator

IR illuminator range: 60 m; Mechanical infrared filter (ICR) ensuring correct color rendering during the day and high sensitivity at night.

Compression and Streams

Compression methods: H.265+ / H.265 / H.264+ / H.264 / MJPEG. RTSP URL: rtsp://user:password@ip_address:80/0 (main stream), /1 (sub stream).

Network Interface

10/100 Base-T (RJ-45). Built-in WEB Server, support for up to 10 online users simultaneously.

Audio

External microphone input (Cinch socket), Audio transmission over the network, AAC standard compatibility.

Intelligent Video Analytics (IVS)

Intrusion (human and vehicle classification), Line crossing (human and vehicle classification), Loitering detection (human silhouette), Crowd detection, Motion detection based on human detection, Entrance/exit area detection.

Selected Image Functions

WDR (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), ROI (Region of Interest enhancement), Anti-Flicker, Mirror, BLC/HLC (Back Light/High Light Compensation), Privacy zones (max. 3), Sharpness.

Power Supply and Consumption

PoE (802.3af), 12 V DC / 530 mA; Power consumption: ≤ 6.4 W.

Housing and Durability

Type: Compact; Material: Metal; Color: White; Ingress protection: IP67 (full protection against dust and water).

Operating Conditions

Operating temperature: -20 °C ... 60 °C. NDAA certificate: Yes.

Access and Configuration

Default IP address: 192.168.1.168; Default login/password: admin / 123456. Access ports: 80 (WWW, PC app, mobile app, ONVIF).

Software

The camera works with the free BitVision app (available on Android/iOS), which enables instant remote viewing via P2P cloud, playback of recordings, and configuration of detection parameters without the need for a public IP address. For PC users, the advanced iVMS320 software is available, allowing for centralized management of the surveillance system, multi-screen live viewing, and video archiving. Additionally, the SearchTool utility is available for quick searching and changing network settings of cameras in a local area network (LAN).

Dimensions, Weight

Product dimensions: 173 x 73 x 73 mm (Depth x Width x Height)

Package dimensions: 285 x 185 x 125 mm (Depth x Width x Height)

Product weight: 450 g

Weight with packaging: 1200 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
