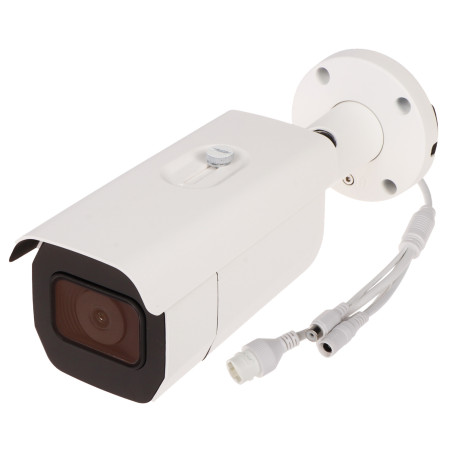

4K UHD 8.3 Mpx 6mm IP Camera IR 60m Metal IP67 P2P Phone Preview Onvif BitVision

Model: APTI APTI-AI802C6-60W

EAN: 6931240053041 SKU: 931053047

• Ultra-high resolution 4K UHD (3840 x 2160) - 8.3 Mpx
• Sensor: 1/2.8" SONY Starvis™ Back-illuminated CMOS
• Fixed lens 6 mm, providing 53° viewing angle
• IR illuminator range up to 60 m for night monitoring
• Intelligent Video Analysis (IVS): intrusion, line crossing, human and vehicle detection
• Power supply: PoE (802.3af) or standard 12V DC
• Durable metal Compact housing with IP67 ingress protection class
• Support for H.265+ / H.265 / H.264+ / H.264 codecs
• Mobile access via BitVision app and ONVIF protocol support
• Built-in mechanical infrared ICR filter

Description

The APTI-AI802C6-60W IP camera is an advanced video surveillance solution that combines ultra-high 4K UHD resolution with a reliable design. Equipped with a modern SONY Starvis Back-illuminated CMOS sensor, the device generates a crystal-clear image with a resolution of 8.3 megapixels, allowing for the identification of even the finest details from a long distance. Thanks to the use of a 6 mm lens, the camera offers a more focused viewing angle, ideal for monitoring specific passages, gates, or parking lots.

Specification

Standard: IP; Resolution: 3840 x 2160 (8.3 Mpx 4K UHD), 2560 x 1440 (3.7 Mpx), 1920 x 1080 (1080p), 1280 x 720 (720p). Main stream transmission speed: 20 fps @ 8.3 Mpx.

One of the key advantages of the device is the powerful infrared illuminator with a range of up to 60 meters, which, combined with the mechanical ICR filter, ensures excellent visibility in total darkness. The solid, metal housing with an IP67 rating guarantees full resistance to harsh weather conditions, such as heavy rain or frost. Intelligent IVS image analysis, including human and vehicle classification and intrusion detection, significantly reduces the number of false alarms, increasing the level of security. Support for PoE (Power over Ethernet) technology simplifies installation, allowing signal and power transmission via a single network cable.

Users will appreciate the easy remote access via the cloud (P2P) using the free BitVision application for Android and iOS systems. The camera supports the latest H.265+ compression, which allows for significant hard drive space savings while maintaining the highest recording quality. It is an ideal choice for those seeking professional surveillance for their home, business, or industrial facilities.

1/2.8" SONY Starvis™ Back-illuminated CMOS; provides high sensitivity and low noise in difficult lighting conditions.

Standard and Resolution

Lens: 6 mm; Viewing angle: 53°. Allows for precise observation of selected areas.

Image Sensor

IR illuminator range: 60 m; Mechanical IR cut filter ensuring correct color reproduction during the day and high sensitivity at night.

Optics

Compression methods: H.265+ / H.265 / H.264+ / H.264 / MJPEG. RTSP URL: rtsp://user:password@ip_address:80/0 (main stream), /1 (sub stream).

Night Illuminator

10/100 Base-T (RJ-45). Built-in WEB Server, supports up to 10 online users simultaneously.

Compression and Streams

External microphone input (Cinch socket), Audio transmission over the network, AAC standard compliance.

Network Interface

Intrusion (human and vehicle classification), Line crossing (human and vehicle classification), Loitering detection (human silhouette), Crowd detection, Motion detection based on human detection, Area entry/exit detection.

Audio

WDR (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), ROI (Quality improvement of selected segments), Anti-Flicker, Mirror, BLC/HLC (Backlight/Highlight Compensation), Privacy zones (max. 3), Sharpness.

Intelligent Video Analysis (IVS)

PoE (802.3af), 12 V DC / 530 mA; Power consumption: ≤ 6.4 W.

Selected Image Features

Type: Compact; Material: Metal; Color: White; Ingress protection class: IP67 (full protection against dust and water).

Power Supply and Consumption

Operating temperature: -20°C ... 60°C. NDAA certificate: Yes.

Housing and Durability

Default IP address: 192.168.1.168; Default login/password: admin / 123456. Access ports: 80 (WWW, PC application, mobile application, ONVIF).

Operating Conditions

The camera works with the free BitVision application (available for Android/iOS), which enables instant remote preview via P2P cloud, playback of recordings, and configuration of detection parameters without the need for a public IP address. For PC users, the advanced iVMS320 software is dedicated, which allows for central management of the surveillance system, multi-screen live view, and archiving of video materials. Additionally, the SearchTool utility is available for quick searching and changing network settings of cameras in the local LAN network.

Access and Configuration

1x IP Camera

1x Mounting kit

1x User manual

Software

Dimensions, Weight

Product dimensions: 173 x 73 x 73 mm (Depth x Width x Height)

Package dimensions: 285 x 185 x 125 mm (Depth x Width x Height)

Product weight: 450 g

Weight including packaging: 1200 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
