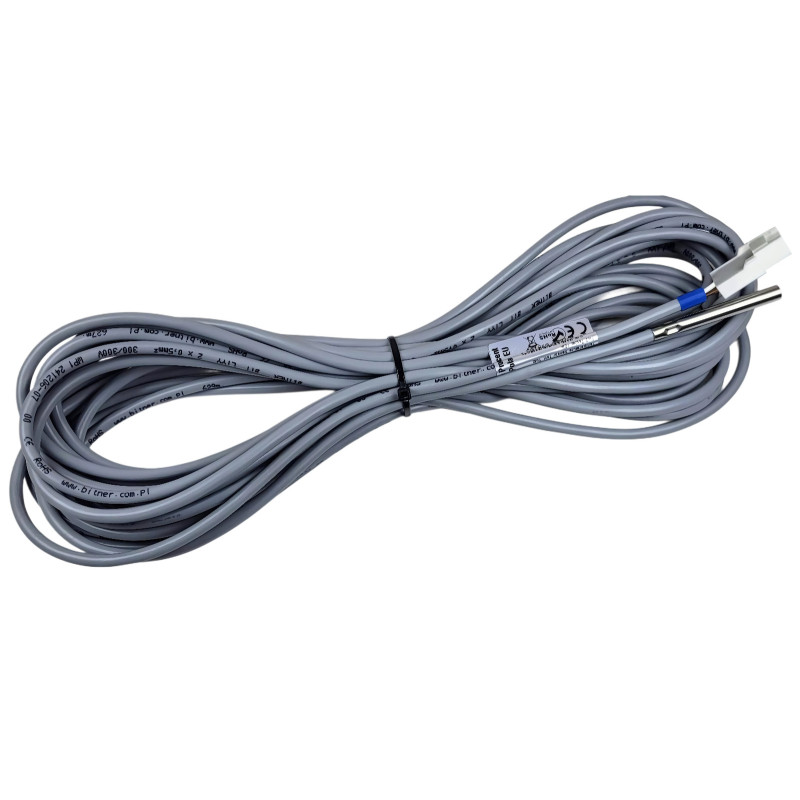

Domestic Hot Water Tank Temperature Sensor VAILLANT 306257 306787 253583 VR10 EcoTec PLUS 12m

Model: ACTii AC7512

EAN: 6931240075128 SKU: 751294243

• High-quality precision temperature sensor
• Uses a specialized copper flexible control cable BiT LiYY 2x0.5mm, voltage: 300/300V, operating temperature: -40℃ to 80℃, compliant with EU standard: LVD 2014/35/EU
• Sensor housed in a sleeve with a diameter of: 6mm and length: 50mm, made of stainless steel
• Each sensor is tested at 3 different temperatures to ensure measurement compliance with a reference sensor.
• Water protection - Sensor coated with high-temperature flexible silicone. Lack of airtightness is a common problem with temperature sensors, resulting in damage due to moisture.
• Our temperature sensors are characterized by higher quality. Unlike the competition, we only use 100% copper thick certified control cable manufactured in the EU with thick and flexible insulation. We use branded sensors. Each sensor is checked by us for measurement compliance with a reference sensor.
• Sensor terminated with a connector matching the socket located on the mainboard of the heat pump. Connecting the sensor only requires plugging it into the appropriate place on the mainboard.

Description

Domestic Hot Water Tank Temperature Sensor - 306257 306787 253583 VR10, designed for VAILLANT boilers

Example boiler models with which the sensor works:

Vaillant EcoTec PLUS, Vaillant EcoTec PRO

VU PL xxx, VC PL xxx

Vaillant AcmoTec PLUS

and many others.

Sensor cable length: 12m

Sensor terminated with a connector matching the socket located in the boiler. Connecting the sensor only requires plugging it into the appropriate place.

Lack of airtightness is a common problem with temperature sensors, resulting in damage due to moisture. Our sensors provide water protection - the sensor is coated with high-temperature flexible silicone.

Specification

Sensor Parameters

Sensor compatible with Vaillant boilers

Compatibility with sensors: 306257, 306787, 253583, VR10

Application: Domestic Hot Water Tank Temperature Sensor

Measurement range of the sensor: from -40 to +400 °C

Ingress protection: IP68

Sensor housed in a sleeve with a diameter of: 6mm and length: 50mm, made of stainless steel

Cable termination: Plastic connector matching the socket in the boiler

Cable length: 12m (472 inches)

Cable Parameters

Cable parameters:

Cable type: Control / signal cable

Operating voltage: 300/300V

Voltage test: ≤ 0.34mm2 1200 V, ≥ 0.5 mm2 1500 V

Insulation resistance: 20 MΩ x km

Capacitance: (at 800Hz): 0.14mm2 120pF/m, ≥0.25 mm2 150pF/m

Inductance: 0.65 mH/km

Min. bending radius for mobile connection: 7.5 x Ø

Min. bending radius for fixed connection: 4 x Ø

Operating temperature: Fixed installation: -40℃ to 80℃, Mobile installations: -5℃ to 80℃

Installation conditions: Indoor cable, Min. installation temperature: -5℃

Environmental resistance: Flame retardancy on a single cable

Certificates / Approvals: CPR - Certificates / DoP

Cable construction:

Conductor material: Copper conductors

Conductor structure: Class 5 (acc. to EN 60228, IEC 60228)

Core structure: multi-core cable

Application: Cables intended for control and signaling circuits in industrial applications, in measurement technology, and for data transmission via analog and digital signals in industrial electronics and automation installations. For fixed installation and mobile devices. Suitable for indoor installations, in dry and damp rooms.

Other Information

Temperature sensors with other cable lengths are available in our offer

Set contents

Temperature sensor with 12m long cable

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 50 x 200 x 200 mm (D x W x H)

Packaging dimensions: 100 x 200 x 50 mm (D x W x H)

Product weight: 360 g

Weight with packaging: 370 g
