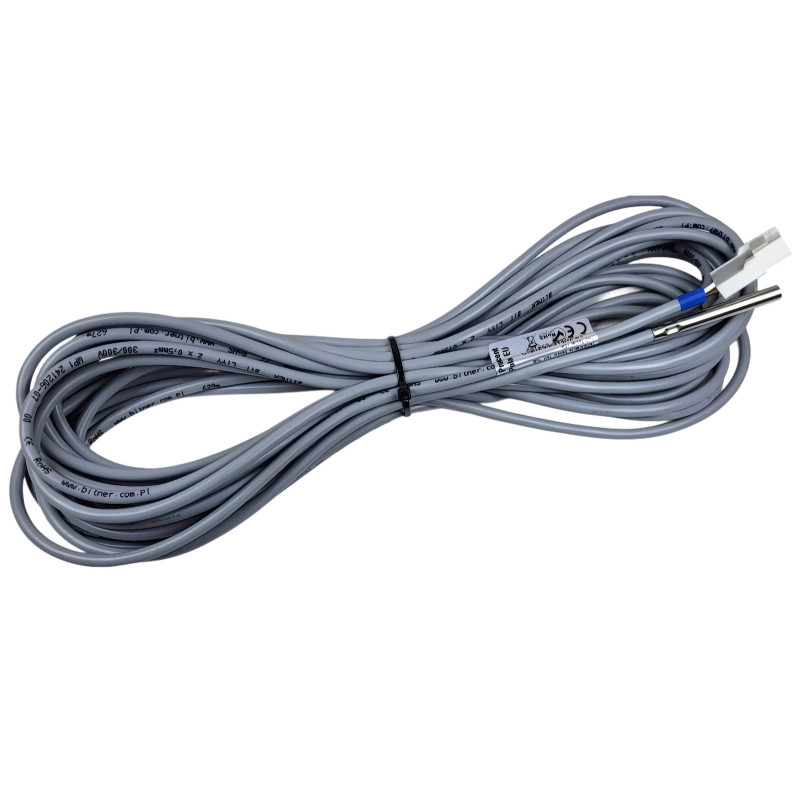

DHW Tank Temperature Sensor for VAILLANT 306257 306787 253583 VR10 EcoTec PLUS 12m

Model: ACTii AC7512

EAN: 6931240075128 SKU: 751294243

• High-quality precision temperature sensor
• Uses a specialized copper flexible control cable BiT LiYY 2x0.5mm, voltage: 300/300V, operating temperature: -40℃ to 80℃, compliant with EU standard: LVD 2014/35/EU
• Sensor housed in a sleeve with a diameter of 6mm and length of 50mm, made of stainless steel
• Each sensor is tested at 3 different temperatures to ensure measurement compliance with a reference sensor.
• Water protection - Sensor coated with high-temperature flexible silicone. Lack of airtightness is a common problem with temperature sensors, leading to damage by moisture.
• Our temperature sensors are characterized by higher quality. Unlike the competition, we use only 100% copper thick certified control cable manufactured in the EU with thick and flexible insulation. We use branded sensors. Each sensor is checked by us for measurement compliance with a reference sensor.
• The sensor is terminated with a connector matching the socket on the mainboard in the heat pump. Connecting the sensor only requires plugging it into the appropriate place on the mainboard.

Description

DHW Tank Temperature Sensor - 306257 306787 253583 VR10, designed for VAILLANT boilers

Example boiler models with which the sensor is compatible:

Vaillant EcoTec PLUS, Vaillant EcoTec PRO

VU PL xxx, VC PL xxx

Vaillant AcmoTec PLUS

and many others.

Sensor cable length: 12m

The sensor is terminated with a connector matching the socket in the boiler. Connecting the sensor only requires plugging it into the appropriate place.

Lack of airtightness is a common problem with temperature sensors, leading to damage by moisture. Our sensors provide protection against water - the sensor is coated with high-temperature flexible silicone.

Specification

Sensor Parameters

Sensor compatible with Vaillant boilers

Compatibility with sensors: 306257, 306787, 253583, VR10

Purpose: DHW Tank Temperature Sensor

Sensor measurement range: from -40 to +400 °C

Ingress protection: IP68

Sensor housed in a sleeve with a diameter of 6mm and length of 50mm, made of stainless steel

Cable termination: Plastic connector matching the socket in the boiler

Cable length: 12m (472 inches)

Cable Parameters

Cable parameters:

Cable type: Control/signaling cable

Operating voltage: 300/300V

Voltage test: ≤ 0.34mm2 1200 V, ≥ 0.5 mm2 1500 V

Insulation resistance: 20 MΩ x km

Capacitance: (at 800Hz): 0.14mm2 120pF/m, ≥0.25 mm2 150pF/m

Inductance: 0.65 mH/km

Min. bending radius, flexible connection: 7.5 x Ø

Min. bending radius, fixed connection: 4 x Ø

Operating temperature: Fixed installation: -40℃ to 80℃, Flexible installations: -5℃ to 80℃

Laying conditions: Indoor cable, Min. laying temperature: -5℃

Environmental resistance: Flame retardant on a single cable

Certificates / Approvals / Authorizations: CPR - Certificates / DoP

Cable construction:

Conductor material: copper conductors

Conductor construction: Cl.5 (according to EN 60228, IEC 60228)

Core construction: multi-core cable

Application: Cables designed for control and signaling circuits in industrial applications, in measurement technology, and for data transmission via analog and digital signals in industrial electronics and automation installations. For fixed installations and mobile equipment. Suitable for work in indoor installations, in dry and damp rooms.

Other Information

We offer temperature sensors with other cable lengths available

Set contents

Temperature sensor with 12m long cable

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 50 x 200 x 200 mm (D x W x H)

Packaging dimensions: 100 x 200 x 50 mm (D x W x H)

Product weight: 360 g

Weight with packaging: 370 g
