- Brak

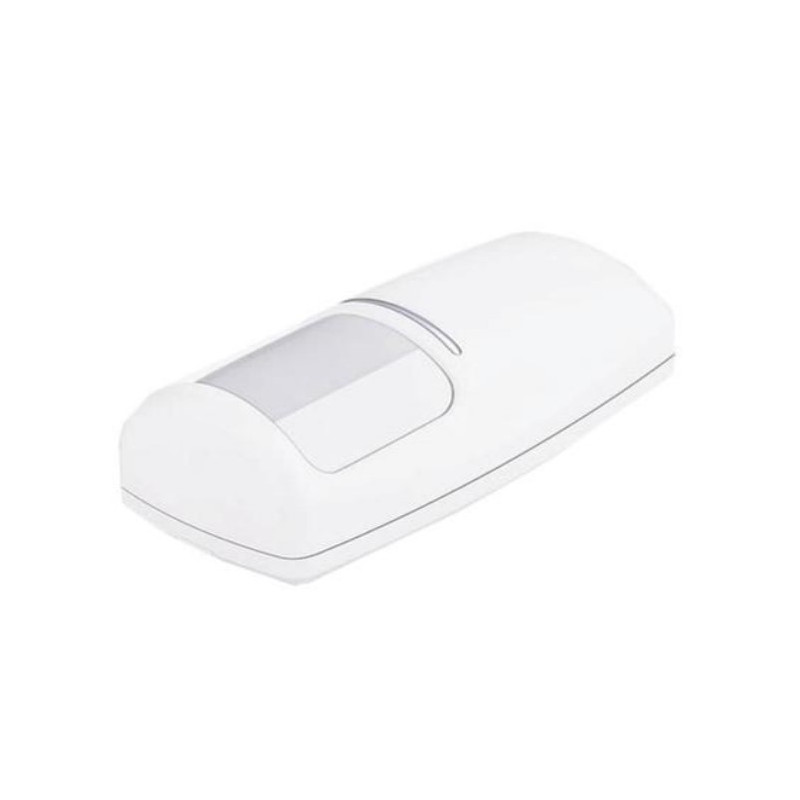

Digital wireless motion detector pet immune PIR 433MHz ACTii AC3054
zł50.13
Tax included
The detector analyzes human movement in the protected space and generates an alarm transmission upon detection. It is characterized by excellent infrared detection parameters and very low power consumption.
Digital wireless motion detector pet immune PIR 433MHz
Model: ACTii AC3054
EAN: 6931240030547 SKU: 305452572
- Pet immunity function.
- Advanced non-linear filtering technology with fuzzy logic
- Operating frequency: 433MHz
- The sensor is compatible with most wireless alarm control panels available on the market
- Anti-white light and anti-electromagnetic interference function
- Long battery life and long transmission distance
- Sensor: dual passive infrared, low noise.
Description
The detector analyzes human movement in the protected space and generates an alarm transmission upon detection. It is characterized by excellent infrared detection parameters and very low power consumption.
Specification
Detector parameters
Sensor: Infrared sensor
RF interference immunity: 10MHz - 1GHz 20V/m,
Mounting height: 1.7 to 2.5m,
Operating temp. / relative humidity: From -20° to +50°C <=95%
Transmission frequency: 433MHz
Detector features
Intelligent logic protection with false alarm detection function.
Pet immunity function.
Digital temperature compensation.
Anti-white light and anti-electromagnetic interference function
Pulse signal processing technology.
Sensor: dual passive infrared, low noise.
Filter for ultraviolet and visible light bands.
Replaceable Fresnel lens.
Installation: wall or corner of the room.
LED indicates PIR detector status. The LED is red
Color: white.
Adjustable mounting bracket.
High immunity to RF and RM interference.
Detector motion detection
Detection area: Up to 12 meters
Detection angle: 110°
Signal range: 200m in open space
Coverage range
Distance: 11m
Middle: 8m
Close: 5m
Dimensions, weight
dimensions: dim11mm
weight: weight11g
Power supply
Battery power: YES; 9V
Power consumption: 15uA in standby mode,
Power consumption: 10mA in alarm mode.
Very low power consumption.
Additional accessories
Devices from our offer compatible with the sensor: Actii AC7127
Set contents
PIR sensor
Bracket
Box
Certificates and standards
CE, RoHS
Warranty
12 months
Dimensions, Weight
Product dimensions: 0 x 0 x 0 mm (Depth x Width x Height)
Packaging dimensions: 100 x 100 x 50 mm (Depth x Width x Height)
Product weight: 0 g
Weight including packaging: 96 g
