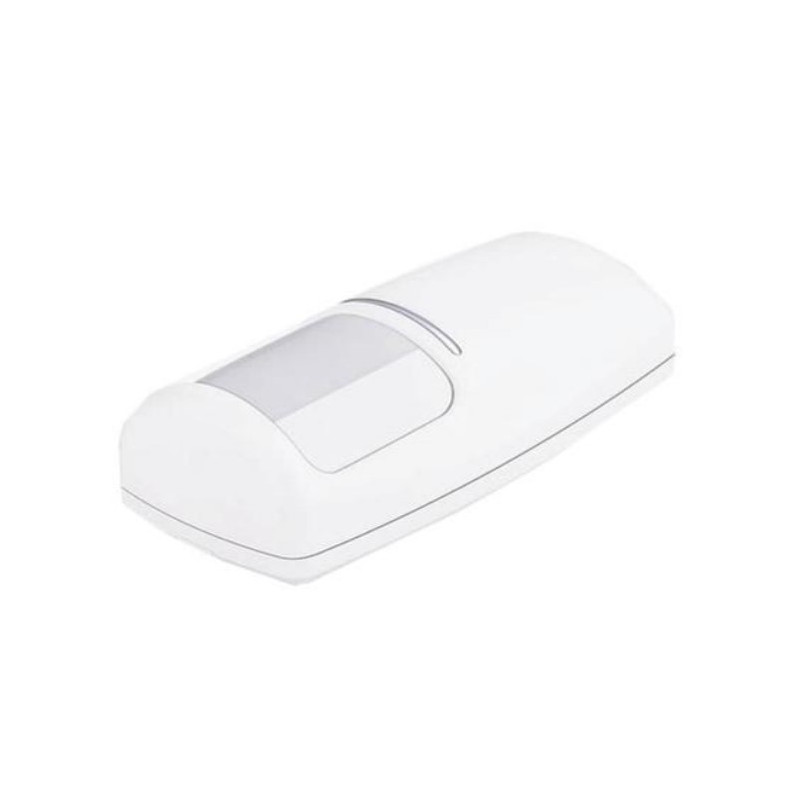

Digital Wireless Motion Sensor Pet Immune PIR 433MHz

Model: ACTii AC3054

EAN: 6931240030547 SKU: 305452572

• Pet immunity function.
• Advanced non-linear filtering technology with fuzzy logic
• Operating frequency: 433MHz
• Sensor works with most wireless alarm control panels available on the market
• Anti-white light and electromagnetic interference protection
• Long battery life and long transmission distance
• Sensor: dual passive infrared, low noise.

Description

The detector analyzes human movement in a protected area and generates an alarm transmission upon detection. It is characterized by excellent infrared detection parameters and very low power consumption.

Specification

Detector parameters

Sensor: Infrared sensor

RF interference resistance: 10MHz - 1GHz 20V/m,

Installation height: 1.7 to 2.5m,

Operating temp. / relative humidity: From -20° to +50°C <=95%

Transmission frequency: 433MHz

Detector features

Intelligent logic protection with false alarm detection function.

Pet immunity function.

Digital temperature compensation.

Anti-white light and electromagnetic interference protection

Pulse signal processing technology.

Sensor: dual passive infrared, low noise.

Ultraviolet and visible light band cutoff filter.

Replaceable Fresnel lens.

Installation: wall or room corner.

LED signals PIR detector status. The LED is red

Color: white.

Adjustable mounting bracket.

High RF and RM interference resistance.

Motion detection

Detection area: Up to 12 meters

Detection angle: 110°

Signal range: 200m in open space

Coverage range

Distance: 11m

Middle: 8m

Close: 5m

Dimensions, weight

dimensions: h11mm

weight: weight11g

Power supply

Battery power: YES; 9V

Power consumption: 15uA standby mode,

Power consumption: 10mA alarm mode.

Very low power consumption.

Additional accessories

Devices from our offer compatible with the sensor: Actii AC7127

Kit contents

PIR sensor

Bracket

Box

Certificates and standards

CE, RoHS

Warranty

12 months

Dimensions, Weight

Product dimensions: 0 x 0 x 0 mm (D x W x H)

Packaging dimensions: 100 x 100 x 50 mm (D x W x H)

Product weight: 0 g

Weight with packaging: 96 g
