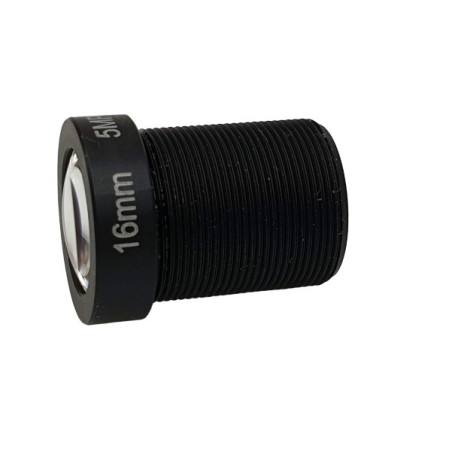

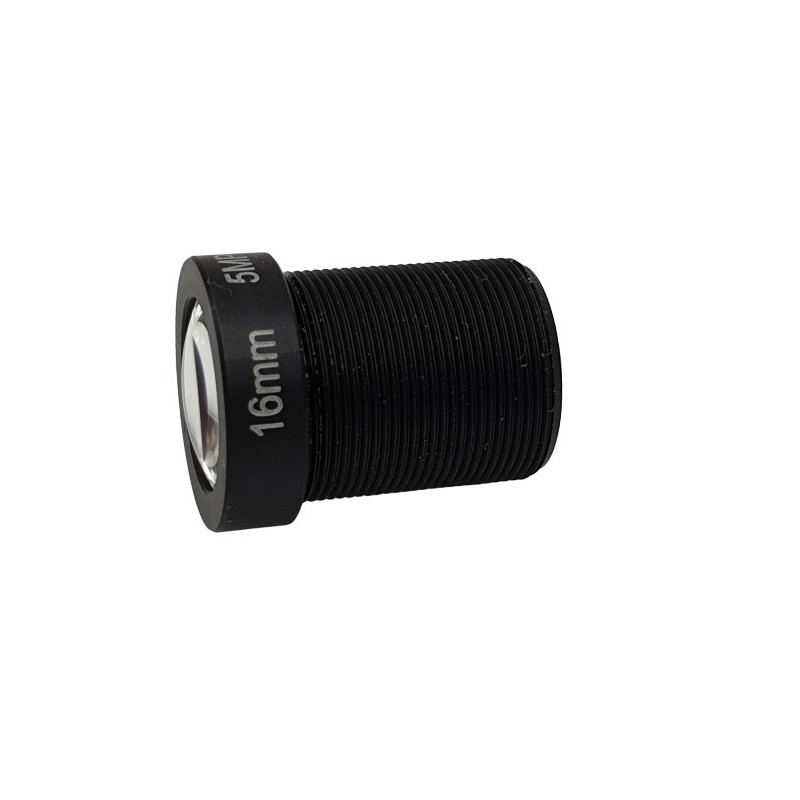

M12 S-MOUNT 16mm 5MP IR Lens for HD IP AHD Board Industrial Cameras Long Distance Zoom

Model: ACTii AC3490

EAN: 6931240034903 SKU: 349031141

• Lens made of high-quality glass and metal components.
• Lens for megapixel cameras: HD 5MP 4MP 3MP 2MP 1MP. The lens can also be used in low-resolution analog cameras.
• Fixed focal length lens with infrared correction adapted for day/night cameras.
• The lens provides correct sharpness in the corners of the image (when using a lens not designed for MP cameras, sharpness is only correct in the center of the image).
• Infrared filter for optimal color reproduction.

Description

High-quality 16mm glass lens designed for Megapixel CCTV cameras. The lens supports cameras with a resolution of up to 5MP

Lens mount: M12x0.5 (11.9mm thread, board cameras)

Specification

Lens parameters

Focal length: fixed, 16mm, 1/2.5"

Viewing angle for 1/3 sensor: 20°

Aperture: F2.0

Lens type

Lens for megapixel cameras: 5MP 4MP 3MP 2MP 1MP (lens can also be used in low-resolution analog cameras)

Lens for industrial board CCTV cameras

Material

Housing: Metal

Optics: Glass

Infrared Filter

YES, infrared correction adapted for day/night cameras. The lens uses a system of lenses compensating for chromatic aberration for infrared radiation.

Mount

M12x0.5

S-MOUNT

Thread: 11.9mm

Board cameras

Additional accessories

In brighter sunlight, to ensure correct color reproduction, consider installing an additional IR 650 filter. The filter is glued to the back of the lens. The filter is available in our offer model: ACTii AC6508

Set contents

Lens

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 14 x 14 x 18 mm (Depth x Width x Height)

Package dimensions: 50 x 50 x 20 mm (Depth x Width x Height)

Product weight: 6 g

Weight with packaging: 6 g

Zum Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
