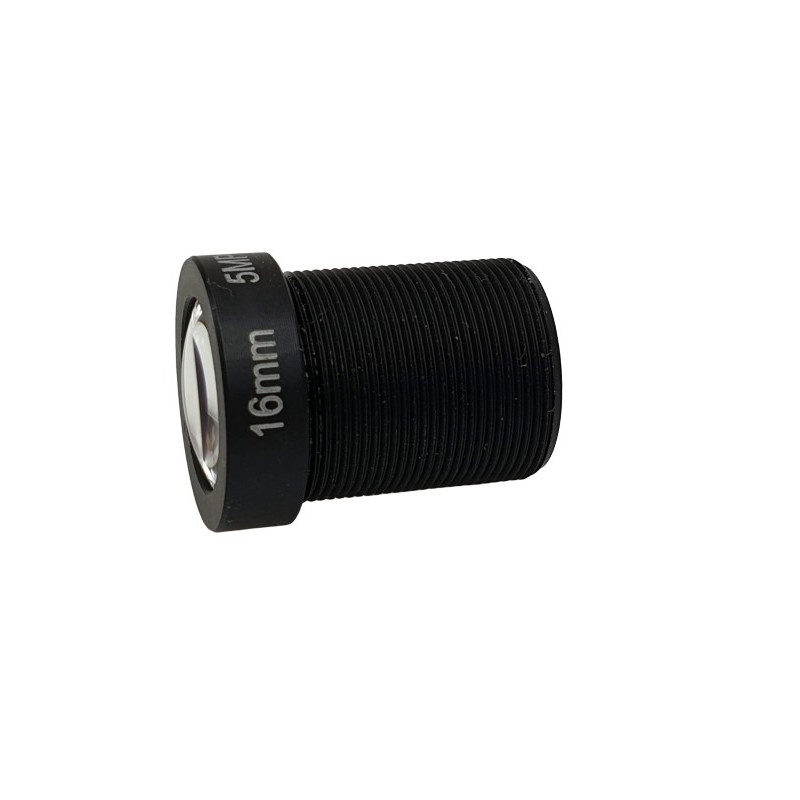

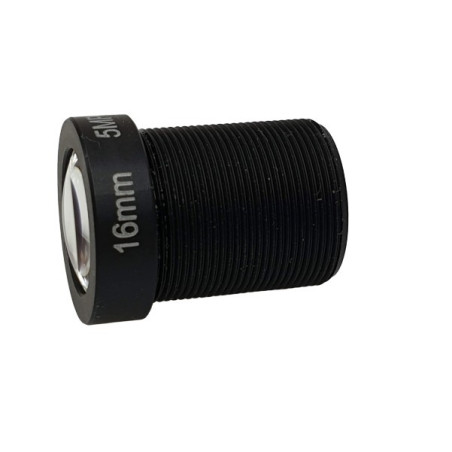

M12 S-MOUNT 16mm 5MP Lens with IR filter for industrial board cameras HD IP AHD long distance Zoom

Model: ACTii AC3490

EAN: 6931240034903 SKU: 349031141

• Lens made of high-quality glass and metal components.
• Lens for megapixel cameras: HD 5MP 4MP 3MP 2MP 1MP. The lens can also be used in low-resolution analog cameras.
• Fixed focal length lens with infrared correction, adapted for day/night cameras.
• The lens provides correct sharpness in the corners of the image (using a lens not intended for MP cameras results in sharpness only in the center of the image).
• Infrared filter for optimal color reproduction.

Description

High-quality 16mm glass lens designed for megapixel CCTV cameras. The lens supports cameras with a resolution of up to 5MP

Lens mount: M12x0.5 (11.9mm thread, board cameras)

Specification

Lens parameters

Lens focal length: fixed, 16mm, 1/2.5"

Viewing angle for 1/3 sensor: 20°

Aperture: F2.0

Lens type

Lens for megapixel cameras: 5MP 4MP 3MP 2MP 1MP (the lens can also be used in low-resolution analog cameras)

Lens for industrial CCTV board cameras

Material

Housing: Metal

Optics: Glass

Infrared Filter

YES, infrared correction adapted for day/night cameras. The lens uses a system of lenses compensating for chromatic aberration for infrared radiation.

Mounting

M12x0.5

S-MOUNT

Thread: 11.9mm

Board cameras

Additional accessories

In brighter sunlight, to ensure correct color reproduction, consider installing an additional IR 650 filter. The filter is glued to the back of the lens. The filter is available in our offer model: ACTii AC6508

Contents of the set

Lens

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 14 x 14 x 18 mm (D x W x H)

Package dimensions: 50 x 50 x 20 mm (D x W x H)

Product weight: 6 g

Weight with packaging: 6 g
