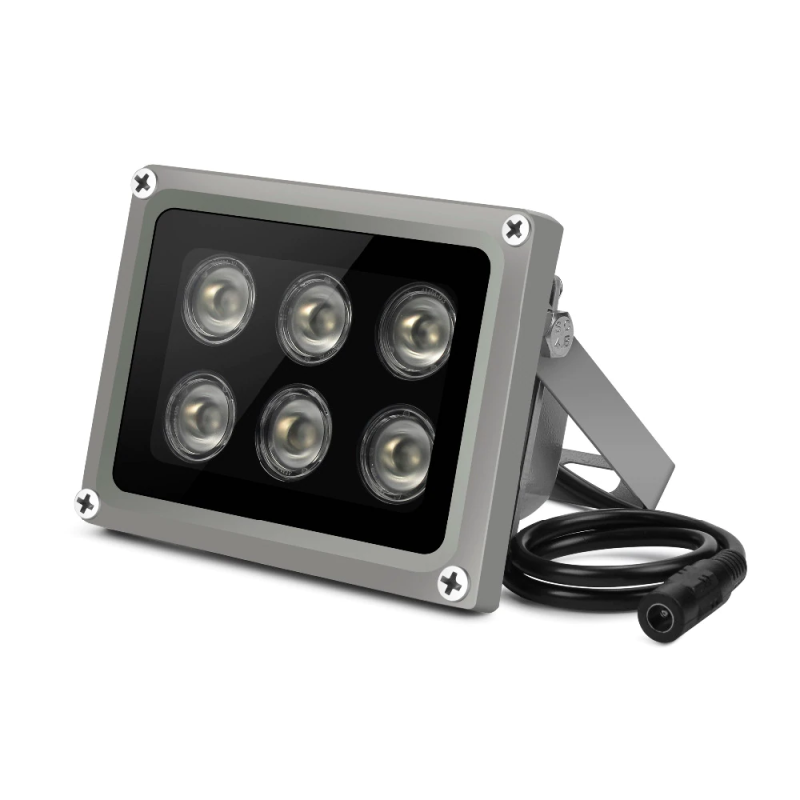

Infrared illuminator 6x ARRAY IR LEDs 40m 90 degrees External for CCTV cameras

Model: ACTii AC9137

EAN: 6931240091371 SKU: 913774970

• High quality powerful IR Array LEDs
• Solid aluminum housing
• Bracket allowing cable concealment
• Large illumination range: 40m
• The illuminator has a built-in twilight switch. LEDs light up only at night.

Description

High-end infrared illuminator with powerful ARRAY IR LEDs with a range of up to 40m at a very wide beam angle of 90 degrees

The reflector is in a hermetic housing - External,

Vandal-proof housing

The illuminator has a built-in twilight switch. LEDs light up only at night.

Specification

Parameters

Number of LEDs: 6 x IR: ARRAY

Additional features: Twilight switch

Power supply: 12V 1A power supply

Power socket: 2.1mm/5.5mm

Cable length: 37cm

Lighting

Illumination range: up to 40m

Illumination angle: 90 degrees

Light wavelength: 850nm

Housing

Shell material: Enameled metal

Panel material: tempered glass

Screw material: Stainless steel

Color: Silver

Protection class: IP66 (protection against strong jets of water or flooding with waves from any direction, complete protection against dust ingress)

Operating temperature: -30 to +60 degrees

Contents of the set

Infrared illuminator.

Packaging.

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 75 x 114 x 85 mm (D x W x H)

Packaging dimensions: 115 x 100 x 90 mm (D x W x H)

Product weight: 305 g

Weight with packaging: 348 g

Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
