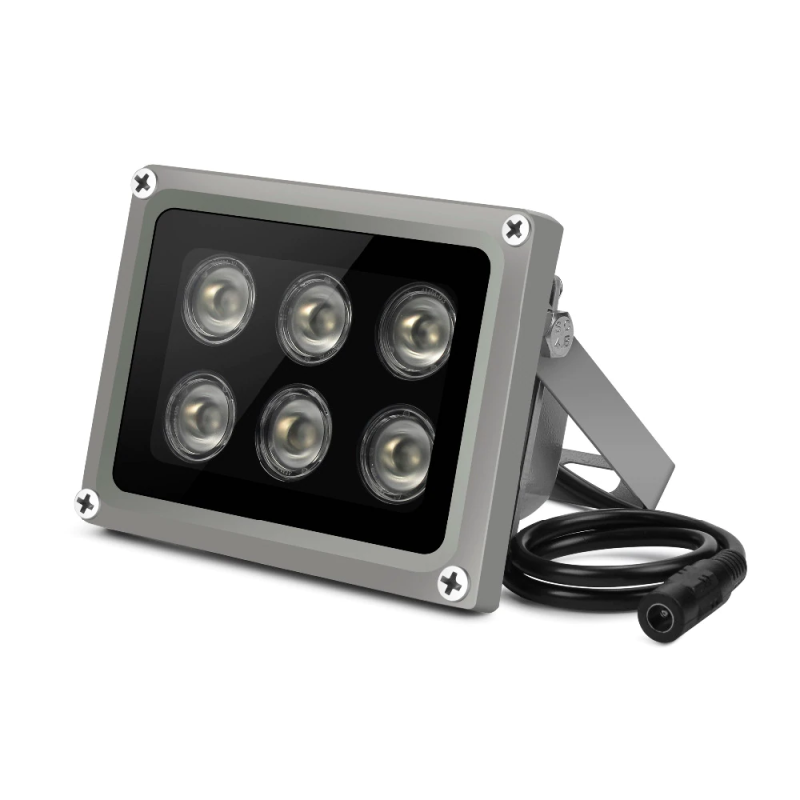

Infrared Spotlight 6x IR ARRAY LEDs 40m 90 degrees External for CCTV cameras

Model: ACTii AC9137

EAN: 6931240091371 SKU: 913774970

• High-quality powerful IR Array LEDs
• Solid aluminum housing
• Cable concealment bracket
• Long illumination range: 40m
• The illuminator has a built-in twilight sensor. LEDs light up only at night.

Description

High-end infrared illuminator with powerful IR ARRAY LEDs with a range of up to 40m at a very wide beam angle of 90

The spotlight is in a hermetic housing - External,

Vandal-proof housing

The illuminator has a built-in twilight sensor. LEDs light up only at night.

Specification

Parameters

Number of LEDs: 6 x IR: ARRAY

Additional functions: Twilight sensor

Power supply: 12V 1A power adapter

Power socket: 2.1mm/5.5mm

Cable length: 37cm

Lighting

Illumination range: up to 40m

Illumination angle: 90

Wavelength: 850nm

Housing

Housing material: Enameled metal

Panel material: Tempered glass

Screw material: Stainless steel

Color: Silver

Ingress protection rating: IP66 (protection against strong water jets or waves from any direction, total protection against dust ingress)

Operating temperature: -30 to +60 degrees

Set contents

Infrared spotlight.

Packaging.

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 75 x 114 x 85 mm (D x W x H)

Packaging dimensions: 115 x 100 x 90 mm (D x W x H)

Product weight: 305 g

Weight including packaging: 348 g

Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
