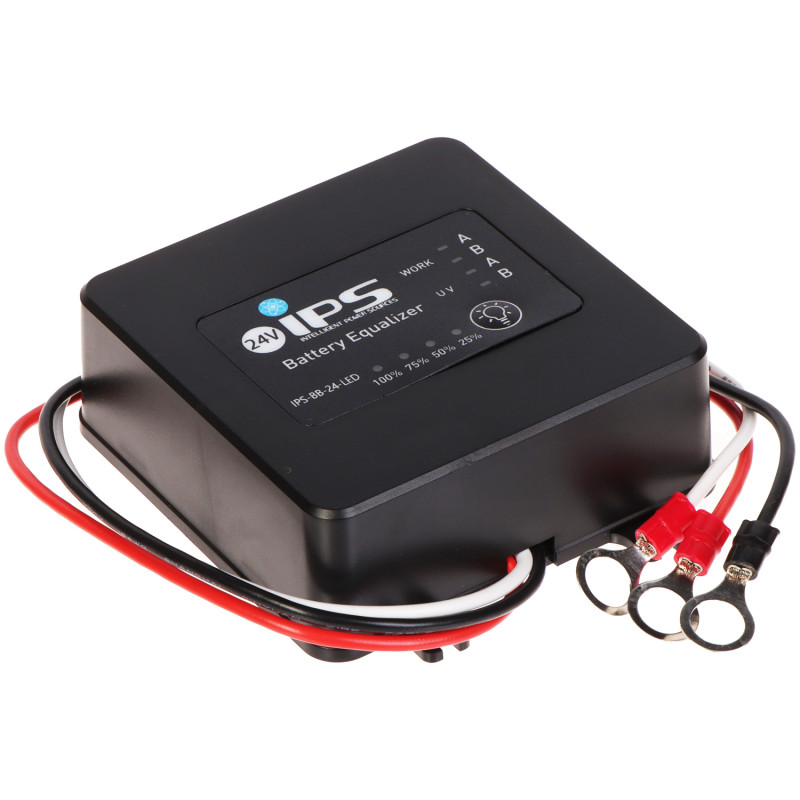

AGM GEL VRLA Battery Voltage Balancer 24V 36V 48V LED Battery Equalizer IPS IPS-BB-24-LED
zł183.16
Tax included
The IPS-BB-24-LED battery voltage balancer is an advanced electronic device specifically designed to optimize the performance of series-connected battery banks. It is a key component in 24V, 36V, and 48V power systems that utilize AGM, GEL, and VRLA batteries. The primary function of this device is to continuously monitor and equalize voltage differences between individual cells, preventing the phenomenon of overcharging one battery while undercharging another.
The advantages of using the IPS-BB-24-LED balancer are invaluable for any user of photovoltaic systems, campers, or yachts. Above all, this device significantly extends the lifespan of expensive battery sets by protecting them from premature wear resulting from voltage asymmetry. The equalization process begins at a minimal difference of just 20mV, which demonstrates the remarkable precision of the circuit. Additionally, built-in LED indicators show the current charge level (25%, 50%, 75%, 100%), allowing for real-time energy status monitoring without the need for external meters.
Operational safety is guaranteed by integrated protection systems, including reverse polarity protection and deep discharge protection below a safe 10V threshold. Thanks to its compact dimensions and simple installation using 30 cm cables with M10 terminals, the device can be mounted quickly and easily in any conditions. By choosing an IPS balancer, you are investing in the stability and longevity of your emergency or renewable power system. The device operates fully automatically and requires no user intervention once correctly connected to the battery terminals.
AGM GEL VRLA Battery Voltage Balancer 24V 36V 48V LED Battery Equalizer
Model: IPS IPS-BB-24-LED
EAN: 6931240084250 SKU: 931084252
- Voltage equalization for series-connected batteries
- Support for AGM, GEL, and VRLA batteries
- Operation in 24V, 36V, and 48V systems
- Very low power consumption below 3mA
- Built-in LED charge level indicators
- Reverse polarity protection
- Deep discharge protection (10V threshold)
- Extends battery cell lifespan
- Quick installation with M10 terminal cables
Description
The IPS-BB-24-LED battery voltage balancer is an advanced electronic device specifically designed to optimize the performance of series-connected battery banks. It is a key component in 24V, 36V, and 48V power systems that utilize AGM, GEL, and VRLA batteries. The primary function of this device is to continuously monitor and equalize voltage differences between individual cells, preventing the phenomenon of overcharging one battery while undercharging another.
The advantages of using the IPS-BB-24-LED balancer are invaluable for any user of photovoltaic systems, campers, or yachts. Above all, this device significantly extends the lifespan of expensive battery sets by protecting them from premature wear resulting from voltage asymmetry. The equalization process begins at a minimal difference of just 20mV, which demonstrates the remarkable precision of the circuit. Additionally, built-in LED indicators show the current charge level (25%, 50%, 75%, 100%), allowing for real-time energy status monitoring without the need for external meters.
Operational safety is guaranteed by integrated protection systems, including reverse polarity protection and deep discharge protection below a safe 10V threshold. Thanks to its compact dimensions and simple installation using 30 cm cables with M10 terminals, the device can be mounted quickly and easily in any conditions. By choosing an IPS balancer, you are investing in the stability and longevity of your emergency or renewable power system. The device operates fully automatically and requires no user intervention once correctly connected to the battery terminals.
Specification
Operating voltage
24V DC (system of two 12V batteries connected in series)
Trigger threshold
Precise initiation of the balancing process at a voltage difference of just 20mV
Rated current
Wide operating range from 0 to 5A, dynamically adjusting to system needs
Current consumption
Very low self-consumption below 3mA, minimizing energy losses in standby mode
Battery types
Full compatibility with AGM (Absorbent Glass Mat), GEL, and VRLA technologies
24V operating system
Standard configuration requiring 1 unit for a two-battery set
36V operating system
System expandability using 2 units for three batteries in series
48V operating system
Advanced configuration requiring 3 units for four batteries in series
Operation signaling
Clear visual communication via LED diodes indicating active device status
Charge indicators
Four-stage LED scale showing 25%, 50%, 75%, and 100% available energy levels
Polarity protection
Electronic lock protecting the circuit from the effects of incorrect plus/minus connection
Discharge protection
Automatic protection against deep battery discharge below 10V
Design features
Device dedicated to continuous operation in photovoltaic, yacht, and UPS emergency power systems
Cabling and installation
300mm cables: Red (+24V), White (midpoint), Black (-24V); M10 ring terminals
Software and logic
The device features a built-in microprocessor voltage monitoring algorithm that analyzes potential differences between batteries in real-time. The logic system automatically activates energy transfer from the battery with higher voltage to the battery with lower voltage when the difference exceeds 20mV. The LED-based user interface performs a diagnostic function, informing about the charge status of each cell on a percentage scale, which allows for quick identification of damaged or sulfated batteries in the energy bank.
Contents
1x IPS-BB-24-LED voltage balancer
1x User manual in Polish
Dimensions, Weight
Product dimensions: 28 x 78 x 78 mm (D x W x H)
Packaging dimensions: 50 x 105 x 95 mm (D x W x H)
Product weight: 180 g
Weight with packaging: 210 g
