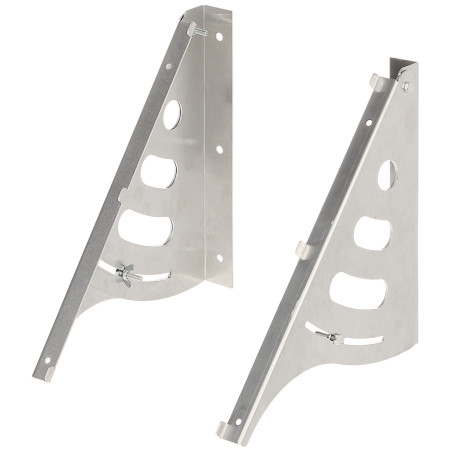

Wall mounting kit for photovoltaic panels adjustable solar PV bracket 15-50 degrees USP-U30
zł159.86
Tax included
The USP-U30 mounting kit is a professional solution designed for stable and secure mounting of small photovoltaic panels directly on building facades or other vertical surfaces. This product has been designed for users looking for a reliable way to install solar modules with a power not exceeding 80 W. A key advantage of the kit is the integrated adjustment system, which allows for precise setting of the panel tilt angle in a wide range from 15° to 50° relative to the horizontal. Such functionality is essential for optimizing energy yields depending on the season and geographical location, which directly translates into higher efficiency of the entire photovoltaic system.
The bracket structure is based on high-quality aluminium, which guarantees not only the low weight of the entire set but, above all, exceptional resistance to adverse weather conditions such as rain, snow, or UV radiation. Thanks to the use of aluminium, the user can be sure that the mounting elements will not corrode over many years of operation, which is crucial for renewable energy systems. The set is characterized by simplicity of assembly, although it requires drilling holes in the panel frame, which ensures the most stable mechanical connection.
Product advantages:
- Exceptional durability: Made of aluminium, it guarantees full resistance to rust and external factors.
- Flexibility of settings: A wide range of tilt angle adjustment (15° - 50°) allows for perfect adaptation to the angle of incidence of sunlight in various conditions.
- Versatility: The system fits most small photovoltaic panels available on the market with a power of up to 80W.
- Safety: The solid construction of the arms ensures the stability of the panel even in stronger winds.
- Aesthetics: The natural aluminium finish blends well with modern solar systems.
- Completeness: The set contains two arms forming a complete support system for one PV module.
Wall mounting kit for photovoltaic panels adjustable solar PV bracket 15-50 degrees
Model: USP-U30
EAN: 6931240054581 SKU: 931054583
- Designed for wall mounting of small PV panels
- Supports photovoltaic panels with a maximum power of up to 80 W
- Smooth tilt angle adjustment in the range from 15° to 50°
- Structure made entirely of lightweight and durable aluminium
- High resistance to corrosion and weather conditions
- The set consists of two mounting arms
- Requires drilling holes in the frame of the mounted panel
Description
The USP-U30 mounting kit is a professional solution designed for stable and secure mounting of small photovoltaic panels directly on building facades or other vertical surfaces. This product has been designed for users looking for a reliable way to install solar modules with a power not exceeding 80 W. A key advantage of the kit is the integrated adjustment system, which allows for precise setting of the panel tilt angle in a wide range from 15° to 50° relative to the horizontal. Such functionality is essential for optimizing energy yields depending on the season and geographical location, which directly translates into higher efficiency of the entire photovoltaic system.
The bracket structure is based on high-quality aluminium, which guarantees not only the low weight of the entire set but, above all, exceptional resistance to adverse weather conditions such as rain, snow, or UV radiation. Thanks to the use of aluminium, the user can be sure that the mounting elements will not corrode over many years of operation, which is crucial for renewable energy systems. The set is characterized by simplicity of assembly, although it requires drilling holes in the panel frame, which ensures the most stable mechanical connection.
Product advantages:
- Exceptional durability: Made of aluminium, it guarantees full resistance to rust and external factors.
- Flexibility of settings: A wide range of tilt angle adjustment (15° - 50°) allows for perfect adaptation to the angle of incidence of sunlight in various conditions.
- Versatility: The system fits most small photovoltaic panels available on the market with a power of up to 80W.
- Safety: The solid construction of the arms ensures the stability of the panel even in stronger winds.
- Aesthetics: The natural aluminium finish blends well with modern solar systems.
- Completeness: The set contains two arms forming a complete support system for one PV module.
Specification
Product type
Wall mounting kit for photovoltaic (PV) panels
Model
USP-U30
Material
High-quality aluminium with increased resistance to oxidation and atmospheric corrosion
Tilt angle adjustment
Range from 15° to 50° relative to the horizontal plane, allowing for sunlight optimization
Maximum panel power
Dedicated to modules with a power not exceeding 80 W
Application
External mounting on building walls, masonry, facades, and vertical structures
Dimensions of a single element
310 x 300 x 43 mm - dimensions apply to each of the two arms included in the set
Set weight
0.94 kg (total weight of all mechanical elements)
Panel mounting method
Requires drilling mounting holes in the aluminium frame of the photovoltaic panel
Environmental resistance
Full resistance to rain, snow, and long-term exposure to UV solar radiation
Mechanical stability
Rigid construction ensuring safe holding of the panel under standard wind loads
Colour
Natural aluminium colour (silver), aesthetic surface finish
Warranty
2 years (24 months) provided by an authorized service centre
Required additional accessories
Screws for attaching to the wall and screws connecting the panel to the bracket are not included (must be selected according to the type of substrate)
Contents
1x Complete set of brackets (2 arms)
1x User and assembly manualDimensions, Weight
Product dimensions: 43 x 310 x 300 mm (D x W x H)
Packaging dimensions: 60 x 422 x 235 mm (D x W x H)
Product weight: 940 g
Weight with packaging: 952 g
