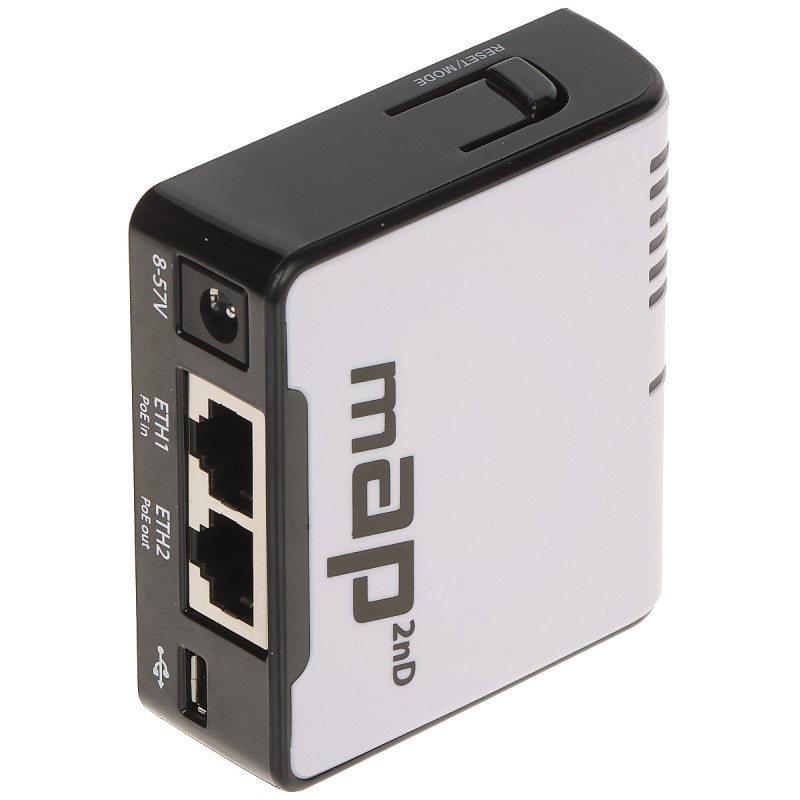

Wi-Fi Access Point 2.4GHz 300Mbps PoE USB RouterOS mAP MikroTik MAP-2ND
zł254.36
Tax included
The MAP-2ND (mAP) access point is an extremely compact and versatile network device that broadcasts a fourth-generation Wi-Fi wireless network in the 2.4 GHz band at speeds up to 300 Mbps. Despite its small size, the device offers immense configuration and functional capabilities typical of professional network solutions. The main application areas for this model are small and medium-sized offices, as well as single-family homes and apartments where discretion and performance are valued.
One of the key advantages of the MAP-2ND is its flexibility in terms of power supply. The device can be powered in three ways: via a DC jack, passive PoE or standard PoE 802.3af/at, as well as through a Micro USB port. Furthermore, the mAP can act as a PoE power source for other devices – the second Ethernet port allows for powering an external receiver with a maximum load of up to 500 mA, which eliminates the need for additional power adapters in the installation. Additionally, the built-in USB 2.0 port allows for the connection of a 3G/4G modem, making this device an ideal mobile solution or backup internet source. A robust construction and a wide operating temperature range guarantee reliability in all home and office conditions.
Wi-Fi Access Point 2.4GHz 300Mbps PoE USB RouterOS mAP
Model: MikroTik MAP-2ND
EAN: 6931240033777 SKU: 931033777
- Operation in the 2.4 GHz band with speeds up to 300 Mbps (802.11 b/g/n standard)
- Two 10/100 Mbps Ethernet ports with PoE IN and PoE OUT support
- Built-in USB 2.0 port for connecting 3G/4G modems or power supply
- Multi-source power supply: DC, PoE (802.3af/at), and Micro USB
- Advanced MikroTik RouterOS operating system
- Compact housing measuring only 68 x 68 x 19 mm
- MU-MIMO technology to increase connection throughput
- Built-in 2x2 MIMO omnidirectional antenna with 1.2 dBi gain
- Capability to operate in Access Point and Station modes
- Wide operating temperature range from -20°C to 70°C
Description
The MAP-2ND (mAP) access point is an extremely compact and versatile network device that broadcasts a fourth-generation Wi-Fi wireless network in the 2.4 GHz band at speeds up to 300 Mbps. Despite its small size, the device offers immense configuration and functional capabilities typical of professional network solutions. The main application areas for this model are small and medium-sized offices, as well as single-family homes and apartments where discretion and performance are valued.
One of the key advantages of the MAP-2ND is its flexibility in terms of power supply. The device can be powered in three ways: via a DC jack, passive PoE or standard PoE 802.3af/at, as well as through a Micro USB port. Furthermore, the mAP can act as a PoE power source for other devices – the second Ethernet port allows for powering an external receiver with a maximum load of up to 500 mA, which eliminates the need for additional power adapters in the installation. Additionally, the built-in USB 2.0 port allows for the connection of a 3G/4G modem, making this device an ideal mobile solution or backup internet source. A robust construction and a wide operating temperature range guarantee reliability in all home and office conditions.
Specification
Frequency range
2.4 GHz
Processor
Qualcomm Atheros AR9531 650 MHz
Antenna type
2 x 2 MIMO Omnidirectional antenna, Dual-chain - built-in 1.2 dBi
Wireless standards
IEEE 802.11 b/g/n
Transmission speed
300 Mbps
LAN ports
2 x 10 / 100 Mbps LAN (RJ-45)
LED indicators
Power, Operating mode, WiFi, User, PoE OUT, 2 x Ethernet
2.4 GHz receiver sensitivity
1M: -96dBm, 11M: -89dBm, 6M: -93dBm, 54M: -74dBm, MCS0: -93dBm, MCS7: -71dBm
Transmitter power
Maximum 22 dBm
Network functions
DHCP server, Firmware update, MU-MIMO, Auto MDI/MDI-X detection
Interfaces and buttons
USB 2.0 port (modem/power), Mode button, RESET button, Voltage monitoring
Power supply and consumption
8 ... 57 V DC (24V/0.8A power adapter included), Passive PoE, PoE (802.3af/at), 5V DC Micro USB-B; Power consumption: max. 5 W
Management and system
Operating system: MikroTik RouterOS; Interface: Web browser, MikroTik mobile app; Default IP address: 192.168.88.1
RouterOS software
The device operates under the MikroTik RouterOS system, which is a professional solution for network management. This system offers unlimited configuration possibilities, including advanced static and dynamic routing (OSPF, BGP, RIP), an extensive firewall with packet inspection, bandwidth management (QoS) for traffic prioritization, as well as support for VPN tunnels (IPsec, OpenVPN, L2TP, PPTP). RouterOS allows for the creation of advanced NAT rules, Hotspot servers for guest users, and precise real-time network monitoring. Thanks to support for scripts and API, administrators can automate complex network tasks, making the mAP a full-fledged router in a miniature form factor.
Contents
1x MAP-2ND Access Point
1x 24V / 0.8A Power adapter
1x USB A / micro USB B cable
Dimensions, Weight
Product dimensions: 19 x 68 x 68 mm (D x W x H)
Package dimensions: 75 x 180 x 60 mm (D x W x H)
Product weight: 68 g
Weight with packaging: 242 g
