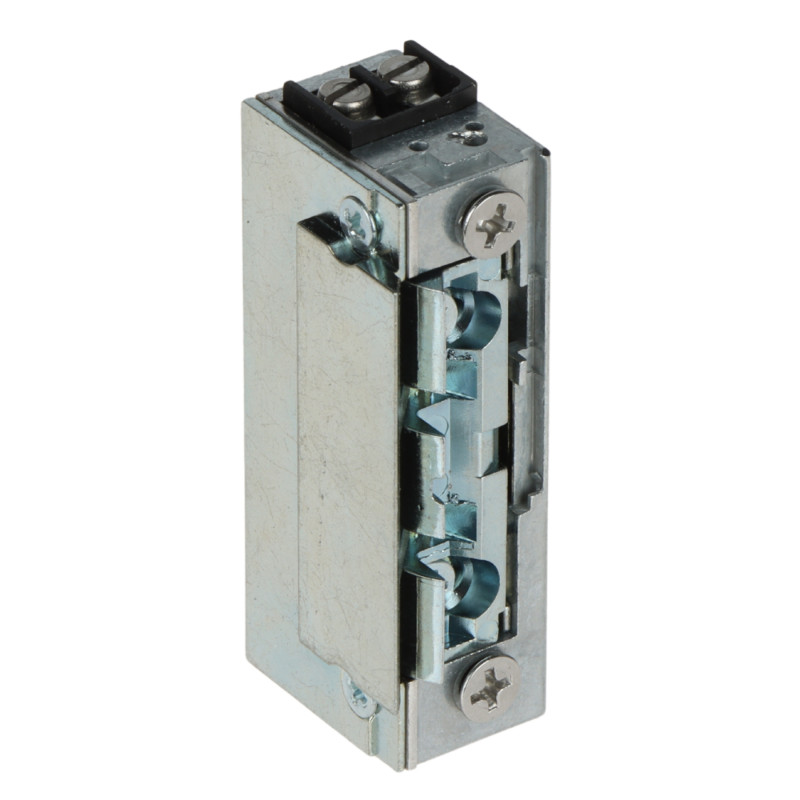

Narrow fail-safe electric strike with guide for left and right doors 24V DC radial BIRA F24R-C
zł494.68
Tax included
The Hartte F-C series fail-safe electric strike is an advanced solution in the field of access control systems, combining reliability, innovation, and exceptional ease of installation. The main advantage of this model is the integrated guide, which acts as a latch cover. Thanks to this solution, installers do not need to widen the opening in the door frame for the swinging strike, which significantly reduces working time and improves the aesthetics of the door finish. The product features a symmetrical design, making it fully universal – it works perfectly with both left and right doors, regardless of their type.
Another key advantage is the radial shape of the strike. Unlike traditional models, the latch in this device moves along a small radius and does not extend beyond the housing contour of the electric strike during opening. This allows for smaller door frame cutouts, which is particularly important in the case of narrow aluminum or PVC profiles. The device operates in fail-safe mode (NO - normally open), which means that in a de-energized state, the door remains open, and applying power causes it to lock. This is a solution dedicated to security systems and escape routes, where the priority is free exit from the building in the event of a power failure.
The solid construction guarantees resistance to pressure of up to 3000 Newtons (approx. 300 kg) and a service life of 200,000 opening cycles. Additionally, the 3 mm strike adjustment allows for precise elimination of play between the lock latch and the electric strike, ensuring quiet and smooth operation of the entire mechanism. Choosing the Hartte Bira brand is a guarantee of the highest quality of workmanship and compliance with rigorous safety standards.
Narrow fail-safe electric strike with guide for left and right doors 24V DC radial
Model: BIRA F24R-C
EAN: 6931240049013 SKU: 931049016
- Fail-safe operation (open without power - NO)
- Integrated guide covering the latch
- Symmetrical design (universal for left and right doors)
- Radial strike shape (does not extend beyond the housing contour)
- High mechanical strength up to 3000 N (300 kg)
- Strike adjustment in the range of 3 mm
- Very long service life - up to 200,000 operating cycles
- Narrow housing for easy installation in profiles
Description
The Hartte F-C series fail-safe electric strike is an advanced solution in the field of access control systems, combining reliability, innovation, and exceptional ease of installation. The main advantage of this model is the integrated guide, which acts as a latch cover. Thanks to this solution, installers do not need to widen the opening in the door frame for the swinging strike, which significantly reduces working time and improves the aesthetics of the door finish. The product features a symmetrical design, making it fully universal – it works perfectly with both left and right doors, regardless of their type.
Another key advantage is the radial shape of the strike. Unlike traditional models, the latch in this device moves along a small radius and does not extend beyond the housing contour of the electric strike during opening. This allows for smaller door frame cutouts, which is particularly important in the case of narrow aluminum or PVC profiles. The device operates in fail-safe mode (NO - normally open), which means that in a de-energized state, the door remains open, and applying power causes it to lock. This is a solution dedicated to security systems and escape routes, where the priority is free exit from the building in the event of a power failure.
The solid construction guarantees resistance to pressure of up to 3000 Newtons (approx. 300 kg) and a service life of 200,000 opening cycles. Additionally, the 3 mm strike adjustment allows for precise elimination of play between the lock latch and the electric strike, ensuring quiet and smooth operation of the entire mechanism. Choosing the Hartte Bira brand is a guarantee of the highest quality of workmanship and compliance with rigorous safety standards.
Specification
Device type
Fail-safe electromagnetic strike (NO - Normally Open)
Product series
Hartte F-C series (integrated guide)
Supply voltage
Nominal 24V DC, permissible operating range from 20V to 26V DC
Power consumption
Low power consumption of 100 mA at 24V DC
Resistance
Coil resistance is 230 Ω, ensuring stable operation in 24V systems
Mechanical strength
Static pressure resistance acting on the strike is 3000 N, which corresponds to a mass of approximately 300 kg
Mechanical durability
Tested for 200,000 cycles of correct opening and closing
Latch design
Radial - the latch rotates inside the housing, requiring no additional external frame cutout
Guide function
Built-in guide integrated with the housing, protecting the door frame and facilitating installation without widening the opening
Adjustment
Possibility to adjust the strike play within a range of up to 3 mm, allowing for perfect fit with the lock tongue
Application
Universal - dedicated to left and right doors (symmetrical housing)
Continuous duty mode
No information on continuous duty approval under voltage (standard fail-safe mode)
Lock and memory
The device does not have a mechanical latch lock or internal memory function
Compliance and standards
The product has a declaration of performance and CE certificate, meeting European safety standards
Contents
1x F24R-C electric strike
1x Installation manual
Dimensions, Weight
Product dimensions: 21 x 34 x 66 mm (D x W x H)
Packaging dimensions: 30 x 35 x 100 mm (D x W x H)
Product weight: 134 g
Weight with packaging: 142 g
