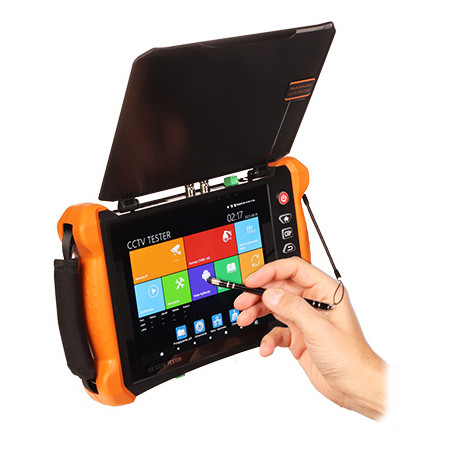

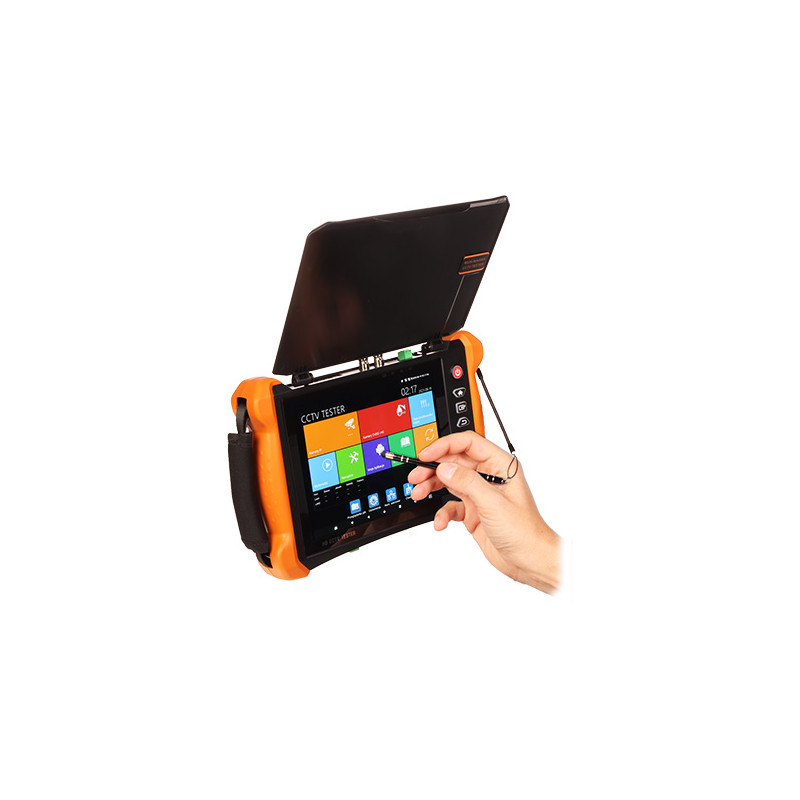

Multifunctional CCTV camera tester AHD HD-CVI HD-TVI IP 8 inches DELTA CS-H9F-80C
zł3,442.03
Tax included
The multifunctional CCTV tester CS-H9F-80C is an advanced service tool designed for professionals involved in the installation and maintenance of video surveillance systems. The device is equipped with a large, 8-inch Retina touchscreen with a high resolution of 2048 x 1536 px, which ensures excellent image clarity even in difficult lighting conditions. The tester supports a wide range of video standards, including AHD, HD-CVI, HD-TVI and classic analog CVBS signals, as well as advanced IP cameras with resolutions up to 8K. Thanks to the built-in Wi-Fi module and two LAN ports, the device enables quick configuration and network diagnostics. The tester has built-in software based on the Android 11 system, which allows the use of many mobile applications from camera manufacturers, a web browser and office tools. An advantage of the device is the ability to power cameras directly from the tester (5V, 12V, 24V and PoE 48V), which eliminates the need for external power supplies during installation work. A solid construction, a tilting screen cover and an included carrying bag make it an indispensable piece of equipment in the daily work of an installer, allowing for quick verification of connections, testing of twisted-pair cables and control of PTZ cameras.
Multifunctional CCTV camera tester AHD HD-CVI HD-TVI IP 8 inches
Model: DELTA CS-H9F-80C
EAN: 6931240088616 SKU: 931088618
- Support for AHD, HD-CVI, HD-TVI, CVBS and IP standards (up to 8K)
- 8-inch Retina touchscreen 2048 x 1536 px
- Built-in Android 11 system with access to mobile applications
- Camera power supply: 5V/2A, 12V/3A, 24V/2A and PoE 48V (up to 90W)
- Built-in Wi-Fi module and two LAN ports
- Twisted-pair cable testing and wire identification
- PTZ camera control (over 30 RS485 protocols)
- Video recording to micro SD card (8GB included)
- Built-in LED flashlight
- Efficient Li-Ion 3350 mAh battery (up to 10h of operation)
Description
The multifunctional CCTV tester CS-H9F-80C is an advanced service tool designed for professionals involved in the installation and maintenance of video surveillance systems. The device is equipped with a large, 8-inch Retina touchscreen with a high resolution of 2048 x 1536 px, which ensures excellent image clarity even in difficult lighting conditions. The tester supports a wide range of video standards, including AHD, HD-CVI, HD-TVI and classic analog CVBS signals, as well as advanced IP cameras with resolutions up to 8K. Thanks to the built-in Wi-Fi module and two LAN ports, the device enables quick configuration and network diagnostics. The tester has built-in software based on the Android 11 system, which allows the use of many mobile applications from camera manufacturers, a web browser and office tools. An advantage of the device is the ability to power cameras directly from the tester (5V, 12V, 24V and PoE 48V), which eliminates the need for external power supplies during installation work. A solid construction, a tilting screen cover and an included carrying bag make it an indispensable piece of equipment in the daily work of an installer, allowing for quick verification of connections, testing of twisted-pair cables and control of PTZ cameras.
Specification
Video standard
AHD 8 Mpx, HD-CVI 8 Mpx, HD-TVI 8 Mpx, TCP/IP 8K, CVBS PAL/NTSC
Display
8 inches Retina, capacitive touchscreen, 2048 x 1536 px
Video Inputs/Outputs
Input: 1x BNC (AHD/CVI/TVI/CVBS), 1x HDMI. Output: 1x BNC (CVBS), 1x HDMI
LAN ports
2 units, cooperation with cameras and PoE switches
Audio
1x Mini Jack input, 1x Mini Jack output, audio test support
Serial ports
RS-485, support for over 30 protocols (Pelco-D/P, Samsung, Hikvision, Bosch, etc.)
Software
The device operates under the Android 11 system. Built-in applications: gDMSS HD Lite, gDMSS Lite, Safire Connect, Network State, XMEye, CloudSEE, Tiandy tool, Fseye, EZView, FreeIP PRO, iVMS-4500 HD, Safire EasyView, MEye. The installed VLC Media Player allows for playing multimedia files (.mp3, .mp4, .avi, .mpeg). The Quickoffice package allows for editing .docx, .xlsx and .pptx documents. The built-in Google Chrome browser provides full access to IP camera web interfaces.
Network functions
PING (ICMP), IP address scanner, LAN connection monitoring, switch port detection, Wi-Fi hotspot
Output power
5V DC/2A (USB), 12V DC/3A, 24V DC/2A, 48V PoE (max 90W)
Battery power
Li-Ion battery 11.1V, 3350mAh, 37.19Wh. Operating time up to 10h
Operating temperature
-10°C to 50°C
Humidity
30% to 90% relative humidity
Supported languages
Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian
Warranty
2 years
Contents
1x CCTV Tester CS-H9F-80C
1x Battery
1x Power adapter
1x Carrying bag
1x Micro SD card 8GB
Connection cabling
Dimensions, Weight
Product dimensions: 42 x 263 x 182 mm (D x W x H)
Package dimensions: 105 x 350 x 300 mm (D x W x H)
Product weight: 1160 g
Weight with packaging: 2542 g
