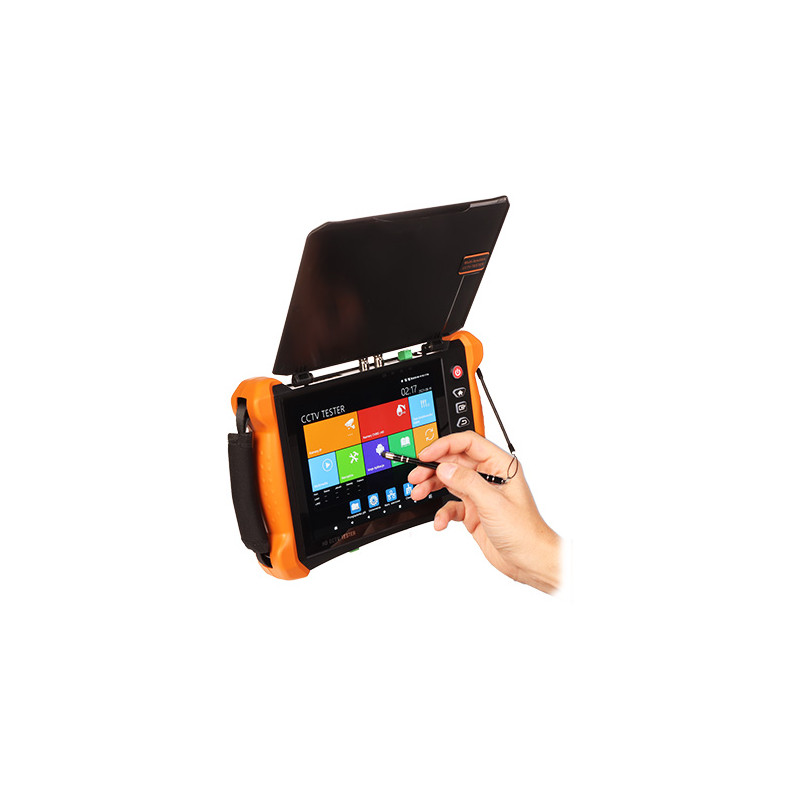

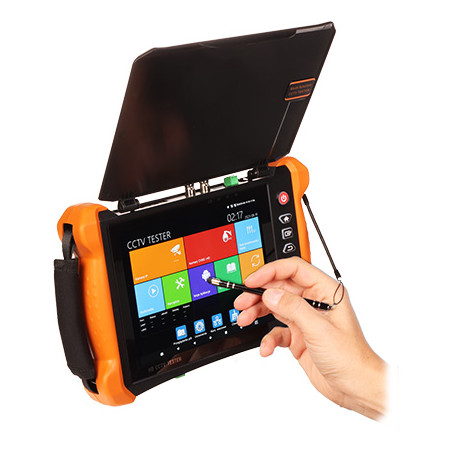

Multifunctional CCTV Camera Tester AHD HD-CVI HD-TVI IP 8 inch

Model: DELTA CS-H9F-80C

EAN: 6931240088616 SKU: 931088618

• Support for AHD, HD-CVI, HD-TVI, CVBS and IP standards (up to 8K)
• 8-inch Retina touchscreen 2048 x 1536 px
• Built-in Android 11 system with access to mobile applications
• Camera power supply: 5V/2A, 12V/3A, 24V/2A and PoE 48V (up to 90W)
• Built-in Wi-Fi module and two LAN ports
• Twisted pair cable testing and wire identification
• PTZ camera control (over 30 RS485 protocols)
• Video recording to micro SD card (8GB included)
• Built-in LED flashlight
• Efficient Li-Ion 3350 mAh battery (up to 10h of operation)

Description

The multifunctional CCTV tester CS-H9F-80C is an advanced service tool designed for professionals involved in the installation and maintenance of video surveillance systems. The device is equipped with a large, 8-inch Retina touchscreen with a high resolution of 2048 x 1536 px, which ensures excellent image clarity even in difficult lighting conditions. The tester supports a wide range of video standards, including AHD, HD-CVI, HD-TVI, and the classic analog CVBS signal, as well as advanced IP cameras with resolutions up to 8K. Thanks to the built-in Wi-Fi module and two LAN ports, the device enables quick configuration and network diagnostics. The tester has built-in software based on the Android 11 system, which allows the use of many mobile applications from camera manufacturers, a web browser, and office tools. An advantage of the device is the ability to power cameras directly from the tester (5V, 12V, 24V, and PoE 48V), which eliminates the need for external power supplies during installation work. A solid construction, a tilting screen cover, and an included carrying bag make it an indispensable piece of equipment in the daily work of an installer, allowing for quick verification of connections, testing of twisted pair cables, and control of PTZ cameras.

Specification

Video standard

AHD 8 Mpx, HD-CVI 8 Mpx, HD-TVI 8 Mpx, TCP/IP 8K, CVBS PAL/NTSC

Display

8 inch Retina, capacitive touchscreen, 2048 x 1536 px

Video Inputs/Outputs

Input: 1x BNC (AHD/CVI/TVI/CVBS), 1x HDMI. Output: 1x BNC (CVBS), 1x HDMI

LAN ports

2 units, compatible with cameras and PoE switches

Audio

1x Mini Jack input, 1x Mini Jack output, audio test support

Serial ports

RS-485, support for over 30 protocols (Pelco-D/P, Samsung, Hikvision, Bosch, etc.)

Software

The device runs on the Android 11 system. Built-in applications: gDMSS HD Lite, gDMSS Lite, Safire Connect, Network State, XMEye, CloudSEE, Tiandy tool, Fseye, EZView, FreeIP PRO, iVMS-4500 HD, Safire EasyView, MEye. The installed VLC Media Player allows for playback of multimedia files (.mp3, .mp4, .avi, .mpeg). The Quickoffice suite allows for editing of .docx, .xlsx, and .pptx documents. The built-in Google Chrome browser provides full access to IP camera web interfaces.

Network functions

PING (ICMP), IP address scanner, LAN connection monitoring, switch port detection, Wi-Fi hotspot

Output power

5V DC/2A (USB), 12V DC/3A, 24V DC/2A, 48V PoE (max 90W)

Battery power

Li-Ion battery 11.1V, 3350mAh, 37.19Wh. Operating time up to 10h

Operating temperature

-10°C to 50°C

Humidity

30% to 90% relative humidity

Supported languages

Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian

Warranty

2 years

Contents

1x CCTV Tester CS-H9F-80C

1x Battery

1x Power adapter

1x Carrying bag

1x Micro SD card 8GB

Connection cabling

Dimensions, Weight

Product dimensions: 42 x 263 x 182 mm (D x W x H)

Package dimensions: 105 x 350 x 300 mm (D x W x H)

Product weight: 1160 g

Weight with packaging: 2542 g
