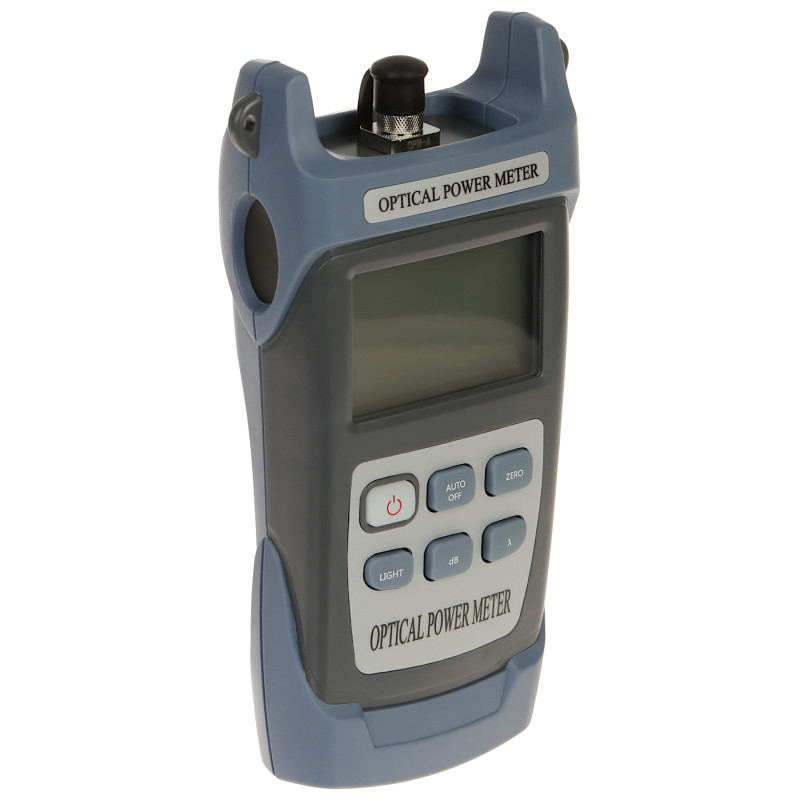

OPM-XK30A Optical Power Meter Fiber Optic Tester InGaAs 850-1650nm LCD ST Precision Delta Fiber OPM-XK30A
zł140.22
Tax included
The professional OPM-XK30A optical power meter is an indispensable tool for every technician and installer working with modern fiber optic networks. The device has been designed for maximum precision and reliability in the field. The heart of the meter is an advanced InGaAs sensor, which provides excellent sensitivity and measurement stability across a wide spectrum of wavelengths.
The product's advantages are numerous: from support for eight standard wavelengths (850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm) to an exceptionally clear, backlit LCD display that allows for work even in total darkness. The meter offers an absolute power measurement function in dBm and a relative measurement function, which is crucial for precise calibration and diagnostics of losses in the optical path.
The device's construction focuses on durability – the housing made of high-quality materials protects the electronics from the rigors of installation work. The ergonomic shape allows for comfortable one-handed operation, and the intuitive menu means that training takes only a few minutes. An additional advantage is the intelligent energy management system with an automatic power-off function, which allows for over 120 hours of continuous operation on a single set of AA batteries. By choosing the OPM-XK30A, you are investing in equipment that significantly speeds up the certification and troubleshooting process in FTTH networks and teletransmission systems. It is a professional solution combining advanced technology with ease of use, guaranteeing repeatability of results in all conditions.
OPM-XK30A Optical Power Meter Fiber Optic Tester InGaAs 850-1650nm LCD ST Precision
Model: Delta Fiber OPM-XK30A
EAN: 6931240088586 SKU: 931088584
- High-class InGaAs sensor ensuring precise readings
- Support for 8 wavelengths: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
- Wide measurement range from +10 dBm to -70 dBm
- Universal 2.5mm connector with included ST adapters
- Large, clear LCD display with backlight function
- Absolute power (dBm) and relative power (dB) measurement
- Automatic power-off function to save battery
- Low battery indicator
- Very long battery life exceeding 120 hours
- Robust housing resistant to mechanical damage
Description
The professional OPM-XK30A optical power meter is an indispensable tool for every technician and installer working with modern fiber optic networks. The device has been designed for maximum precision and reliability in the field. The heart of the meter is an advanced InGaAs sensor, which provides excellent sensitivity and measurement stability across a wide spectrum of wavelengths.
The product's advantages are numerous: from support for eight standard wavelengths (850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm) to an exceptionally clear, backlit LCD display that allows for work even in total darkness. The meter offers an absolute power measurement function in dBm and a relative measurement function, which is crucial for precise calibration and diagnostics of losses in the optical path.
The device's construction focuses on durability – the housing made of high-quality materials protects the electronics from the rigors of installation work. The ergonomic shape allows for comfortable one-handed operation, and the intuitive menu means that training takes only a few minutes. An additional advantage is the intelligent energy management system with an automatic power-off function, which allows for over 120 hours of continuous operation on a single set of AA batteries. By choosing the OPM-XK30A, you are investing in equipment that significantly speeds up the certification and troubleshooting process in FTTH networks and teletransmission systems. It is a professional solution combining advanced technology with ease of use, guaranteeing repeatability of results in all conditions.
Specification
Sensor type
InGaAs - advanced semiconductor detector ensuring high sensitivity in the infrared range, ideal for precise fiber optic measurements.
Optical wavelengths
850 nm / 980 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm / 1650 nm - full spectrum supporting multimode and single-mode networks.
Power measurement range
10 ... -70 dBm - wide range allowing for the measurement of both strong transmission signals and very weak signals at the ends of long lines.
Measurement error
± 5 % - guaranteed high repeatability of results necessary for professional network certification.
Measurement accuracy
0.01 dBm - high resolution allowing for the detection of even minimal losses at splices or connectors.
Connector type
Universal 2.5mm with ST adapter - compatibility with the most popular fiber optic connector standards.
Display
LCD with backlight - high contrast and clear digits facilitate reading in sunlight as well as in dark basements or manholes.
Power supply
3 x 1.5 V - Battery type LR6 (AA) - popular and easily accessible power source (batteries are included in the set).
Battery life
> 120 h - exceptional energy efficiency allowing for many weeks of work without the need to replace cells.
Additional functions
Automatic power-off after inactivity, battery status indicator, real-time power change tracking.
Software and interface
The device has built-in firmware optimized for lightning-fast analog-to-digital signal processing. The meter's operating system allows for immediate switching between eight programmed wavelengths using a dedicated button. The user interface enables easy reference point (REF) calibration for relative measurements, which is crucial when testing path attenuation. The device logic also manages intelligent screen backlighting and an energy-saving system that monitors user activity and automatically turns off the meter to prevent unexpected battery discharge in the field.
Selected technical features
Absolute optical power measurement (mW, nW, uW, dBm), relative power measurement (dB), auto-calibration function upon startup, high resistance to electromagnetic interference.
Material
Reinforced ABS plastic with increased resistance to drops and vibrations, adapted for work in difficult industrial conditions.
Warranty
2 years - full technical and manufacturer support.
Contents
1x OPM-XK30A Optical Power Meter
3x 1.5V AA (LR6) Battery
1x ST Adapter
1x User Manual
Dimensions, Weight
Product dimensions: 46 x 100 x 185 mm (D x W x H)
Package dimensions: 70 x 110 x 210 mm (D x W x H)
Product weight: 250 g
Weight with packaging: 354 g
