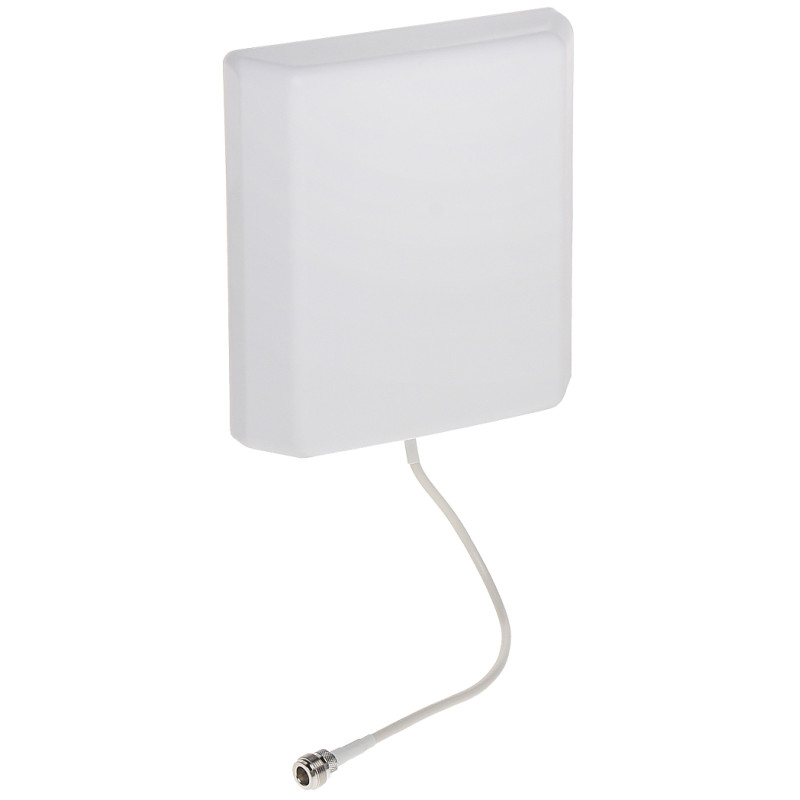

Directional Panel Antenna LTE GSM 3G 4G WLAN WiFi Outdoor Indoor N-Type Connector 10dBi Signal Gain Internet Trans Data ATK-KPV/
zł157.59
Tax included
The ATK-KPV/LTE-7/10 panel antenna is a high-class directional transceiver device designed for users struggling with poor mobile network and wireless internet coverage. Thanks to its wide operating range, covering bands from 698 MHz to 2700 MHz, this product is fully compatible with LTE, GSM, DCS, UMTS, and WLAN technologies. It is an ideal solution for both outdoor installation on building facades and indoor use in offices or residential premises.
The main advantage of the antenna is its ability to significantly improve internet connection stability. Many modern modems have only small, built-in antennas that struggle in difficult terrain or buildings with thick walls. Using an external antenna allows for effective signal reception from the outside and delivers it directly to the device, resulting in higher data transfer speeds and lower latency (ping).
The antenna's construction is characterized by high resistance to weather conditions, which guarantees longevity and reliable operation for many years. An energy gain of 9-10 dBi provides solid signal amplification even at a significant distance from the base station (BTS). The device is equipped with a standard N-type connector, which facilitates the selection of appropriate cabling. Installation is extremely simple and fast thanks to the included mounting elements, allowing for self-installation without the need to call specialized teams. By choosing this model, you are investing in the comfort of remote work, smooth video streaming, and the stability of monitoring systems based on GSM/LTE connectivity.
Directional Panel Antenna LTE GSM 3G 4G WLAN WiFi Outdoor Indoor N-Type Connector 10dBi Signal Gain Internet
Model: Trans Data ATK-KPV/LTE-7/10
EAN: 6931240068267 SKU: 931068260
- Broadband operation in the 698 MHz - 2700 MHz range
- High energy gain up to 10 dBi
- Support for LTE, GSM, 3G, DCS and WLAN standards
- Robust housing resistant to weather conditions (UV, rain)
- Suitable for indoor and outdoor installation
- Standard N-type connector ensuring low loss
- Complete mounting bracket included
- Compact dimensions and aesthetic white design
Description
The ATK-KPV/LTE-7/10 panel antenna is a high-class directional transceiver device designed for users struggling with poor mobile network and wireless internet coverage. Thanks to its wide operating range, covering bands from 698 MHz to 2700 MHz, this product is fully compatible with LTE, GSM, DCS, UMTS, and WLAN technologies. It is an ideal solution for both outdoor installation on building facades and indoor use in offices or residential premises.
The main advantage of the antenna is its ability to significantly improve internet connection stability. Many modern modems have only small, built-in antennas that struggle in difficult terrain or buildings with thick walls. Using an external antenna allows for effective signal reception from the outside and delivers it directly to the device, resulting in higher data transfer speeds and lower latency (ping).
The antenna's construction is characterized by high resistance to weather conditions, which guarantees longevity and reliable operation for many years. An energy gain of 9-10 dBi provides solid signal amplification even at a significant distance from the base station (BTS). The device is equipped with a standard N-type connector, which facilitates the selection of appropriate cabling. Installation is extremely simple and fast thanks to the included mounting elements, allowing for self-installation without the need to call specialized teams. By choosing this model, you are investing in the comfort of remote work, smooth video streaming, and the stability of monitoring systems based on GSM/LTE connectivity.
Specification
Device type
Directional panel antenna
Application
LTE, GSM, DCS, UMTS, WLAN (2.4 GHz) systems
Operating frequency range
698 MHz ... 960 MHz and 1700 MHz ... 2700 MHz
Energy gain (Low Band)
9 dBi @ 698 MHz ... 960 MHz
Energy gain (High Band)
10 dBi @ 1700 MHz ... 2700 MHz
Wave impedance
50 Ω - standard impedance for radio and telecommunication systems
Communication connector
N-type connector (N-female) - robust connector with high mechanical resistance
Horizontal beamwidth (H)
60 ° ... 70 ° - allows for precise alignment with the BTS transmitter
Vertical beamwidth (V)
45 ° ... 55 °
Wave polarization
Vertical
VSWR ratio
< 1.5 - guarantees minimal signal reflections and high system efficiency
Construction and mounting
Housing made of UV-resistant ABS plastic; mast or wall mounting; 0.3 m cable
Operating conditions
Operating temperature from -40°C to +65°C; full resistance to precipitation
Physical parameters
Weight: 0.3 kg; Dimensions: 210 x 180 x 44 mm
Software and interface
As a passive antenna, the device does not have its own operating system or digital interface. However, its technical parameters are crucial for the correct operation of software embedded in LTE routers and modems (e.g., WebUI interfaces from brands like Huawei, TP-Link, Teltonika). Thanks to signal amplification, this software can more accurately report parameters such as RSSI (signal strength), RSRP (reference signal received power), RSRQ (reference signal received quality), and SINR (signal-to-interference-plus-noise ratio). The stable signal provided by the antenna prevents frequent modem switching between different technologies (e.g., from LTE to 3G), which is crucial for applications requiring constant network access, such as IP video monitoring systems or remote home automation control.
Contents
1x ATK-KPV/LTE-7/10 Antenna
1x Mounting bracket
1x Set of installation accessories
Dimensions, Weight
Product dimensions: 44 x 180 x 210 mm (D x W x H)
Packaging dimensions: 55 x 185 x 290 mm (D x W x H)
Product weight: 300 g
Weight with packaging: 398 g
