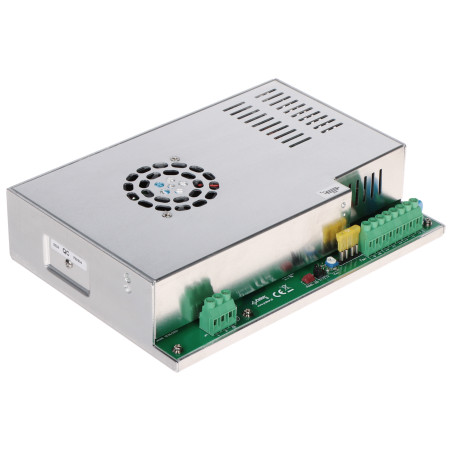

Professional 13.8V 20A buffer power supply for CCTV alarm systems UPS switching power module high efficiency PULSAR PSB-12V20A
zł467.40
Tax included
The Pulsar PSB-12V20A buffer power supply is an advanced switching device designed for uninterrupted power supply to security systems, such as alarm control panels, CCTV cameras, access control systems, or intercoms. Thanks to its high current efficiency of 20A, this product is ideal for extensive installations requiring a stable 13.8V DC voltage. The device is characterized by high efficiency at the 86% level, which minimizes energy losses and limits component heating.
One of the most important advantages of the power supply is the integrated battery management system. The user has the option to manually select the charging current (2A, 4A, or 8A) using jumpers, which allows for optimal adjustment to the capacity of the connected lead-acid battery. The power supply takes care of the cell's condition, offering charging and maintenance functions as well as protection against excessive discharge (UVP), which significantly extends battery life.
System safety is guaranteed by a series of built-in electronic protections: short-circuit (SCP), overload (OLP), overvoltage (OVP), and surge protection. The set includes a complete set of battery cables, which facilitates installation. Please note that for 24h continuous operation, the load should not exceed 80% of the maximum current. The robust, metal modular design facilitates mounting in cabinets or enclosures, ensuring a professional look and durability of the UPS emergency power installation.
Professional 13.8V 20A buffer power supply for CCTV alarm systems UPS switching power module high efficiency
Model: PULSAR PSB-12V20A
EAN: 6931240085530 SKU: 931085535
- High 20A current efficiency allowing for powering multiple devices simultaneously
- Output voltage adjustment range 13.5V - 14.4V DC
- Selectable battery charging current (2A / 4A / 8A) for better cell matching
- High energy efficiency of 86% reducing operating costs
- Comprehensive set of protections: SCP, OLP, OVP and UVP battery protection
- Optical status signaling via LED diodes
- Included battery cable for quick installation
- Robust, modular design ideal for installation in control cabinets
Description
The Pulsar PSB-12V20A buffer power supply is an advanced switching device designed for uninterrupted power supply to security systems, such as alarm control panels, CCTV cameras, access control systems, or intercoms. Thanks to its high current efficiency of 20A, this product is ideal for extensive installations requiring a stable 13.8V DC voltage. The device is characterized by high efficiency at the 86% level, which minimizes energy losses and limits component heating.
One of the most important advantages of the power supply is the integrated battery management system. The user has the option to manually select the charging current (2A, 4A, or 8A) using jumpers, which allows for optimal adjustment to the capacity of the connected lead-acid battery. The power supply takes care of the cell's condition, offering charging and maintenance functions as well as protection against excessive discharge (UVP), which significantly extends battery life.
System safety is guaranteed by a series of built-in electronic protections: short-circuit (SCP), overload (OLP), overvoltage (OVP), and surge protection. The set includes a complete set of battery cables, which facilitates installation. Please note that for 24h continuous operation, the load should not exceed 80% of the maximum current. The robust, metal modular design facilitates mounting in cabinets or enclosures, ensuring a professional look and durability of the UPS emergency power installation.
Specification
Power supply type
Switching with high efficiency
Supply voltage
200 V ... 240 V AC, 50/60 Hz
Output voltage (buffer operation)
11 V ... 13.8 V DC
Output voltage (battery operation)
9.5 V ... 13.8 V DC
Output voltage adjustment
13.5 V ... 14.4 V DC (via V-ADJ potentiometer)
Power supply current efficiency
20 A (total current of receivers and charging)
Battery charging current
2 A / 4 A / 8 A (set by CHARGE jumper on the board)
Power supply power
276 W (maximum continuous power)
Efficiency
86 %
Number of outputs
3 pcs on screw terminals
Protections
Short-circuit (SCP), Overload (OLP), Surge, Overvoltage (OVP), Excessive discharge (UVP - cut-off at ~9.5V)
Operating conditions
Temperature: -10 °C ... 40 °C, Relative humidity: 20 % ... 90 % (non-condensing)
Signaling and control
Optical AC/DC status signaling. Firmware: No digital interface; control is performed by analog logic circuits managing the battery charging cycle (CC/CV), monitoring voltage thresholds for UVP protection, and controlling output voltage stabilization in real-time. Parameter configuration is done mechanically via jumpers and a potentiometer.
Construction
Modular design for installation, free air convection cooling (mounting distance must be ensured)
Contents
1x PSB-12V20A buffer power supply
1x Set of cables for battery connection
1x Installation and operation manual
Dimensions, Weight
Product dimensions: 237 x 168 x 54 mm (D x W x H)
Package dimensions: 245 x 175 x 70 mm (D x W x H)
Product weight: 1190 g
Weight with packaging: 1282 g
