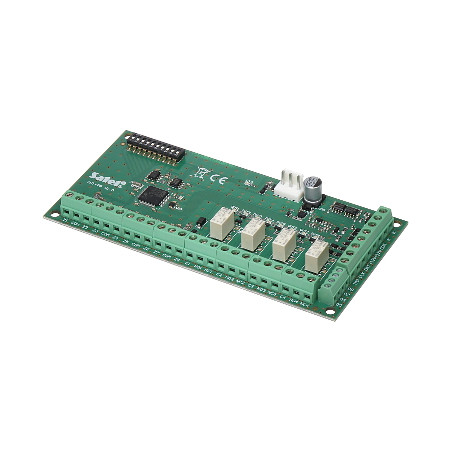

8 Input and 8 Output Expander for Alarm System Expansion Board for INTEGRA Control Panels Relay Outputs SATEL INT-PP
zł484.79
Tax included
A high-end input and output expansion module designed for professional intrusion and robbery signaling systems. This advanced device enables significant expansion of the capabilities of INTEGRA series alarm control panels, making it an ideal solution for facilities with high security requirements.
Thanks to the use of modern electronic architecture, the module offers 8 additional, fully programmable inputs that support a wide range of resistance configurations, from standard NO and NC to advanced EOL, 2EOL, and even 3EOL, allowing for precise detection of alarm states, tampering, and wiring failures.
Additionally, the device is equipped with 8 programmable outputs, including relay and open collector (OC) type outputs, which allow for direct control of actuators such as sirens, door locks, or building automation elements. The device meets the rigorous requirements of the EN 50131 standard for Grade 3, which guarantees the highest level of protection and reliability in banking, jewelry, or military installations.
The use of a dedicated RS-485 interface allows not only for stable communication with the central unit but also for remote firmware updates without the need to dismantle the module, which significantly reduces system maintenance costs. The advantages of the device are primarily its versatility, ease of mounting on a rail or in a dedicated enclosure, and full integration with the manufacturer's ecosystem. The module is characterized by low power consumption and a wide operating temperature range, which ensures operational stability in diverse environmental conditions.
8 Input and 8 Output Expander for Alarm System Expansion Board for INTEGRA Control Panels Relay Outputs
Model: SATEL INT-PP
EAN: 6931240084298 SKU: 931084294
- System expansion by 8 additional programmable inputs
- 8 programmable control outputs (4 relay, 4 OC)
- Full support for NO, NC, EOL, 2EOL and 3EOL configurations
- High security level compliant with Grade 3 standard
- Remote firmware update capability via RS-485 bus
- Built-in dedicated tamper output
- High power output capacity up to 2.5 A
- Compatibility with advanced INTEGRA series control panels
Description
A high-end input and output expansion module designed for professional intrusion and robbery signaling systems. This advanced device enables significant expansion of the capabilities of INTEGRA series alarm control panels, making it an ideal solution for facilities with high security requirements.
Thanks to the use of modern electronic architecture, the module offers 8 additional, fully programmable inputs that support a wide range of resistance configurations, from standard NO and NC to advanced EOL, 2EOL, and even 3EOL, allowing for precise detection of alarm states, tampering, and wiring failures.
Additionally, the device is equipped with 8 programmable outputs, including relay and open collector (OC) type outputs, which allow for direct control of actuators such as sirens, door locks, or building automation elements. The device meets the rigorous requirements of the EN 50131 standard for Grade 3, which guarantees the highest level of protection and reliability in banking, jewelry, or military installations.
The use of a dedicated RS-485 interface allows not only for stable communication with the central unit but also for remote firmware updates without the need to dismantle the module, which significantly reduces system maintenance costs. The advantages of the device are primarily its versatility, ease of mounting on a rail or in a dedicated enclosure, and full integration with the manufacturer's ecosystem. The module is characterized by low power consumption and a wide operating temperature range, which ensures operational stability in diverse environmental conditions.
Specification
Number of inputs
8 pcs - programmable, support for multiple detector types
Number of outputs
8 pcs - programmable (4x OC type output, 4x relay output)
Input configuration support
NO, NC, EOL, 2EOL/NO, 2EOL/NC, 3EOL (for INTEGRA Plus control panels)
OC output load capacity
50 mA / 12 V DC - ideal for controlling auxiliary relays
Relay contact load capacity
2 A / 24 V DC (resistive load) - direct control
+12V output load capacity
2.5 A / 12 V DC - efficient power supply for detectors and accessories
Device power supply
12 V DC (+/- 15%) - standard system power supply
Current consumption
35 mA (standby mode), 150 mA (maximum consumption with all relays active)
Communication interface
RS-485 - communication bus for INTEGRA system expanders
Security grade
Grade 3 according to EN 50131 - highest security standard
Environmental class
II according to EN 50130-5 - indoor operation
Operating temperature
-10 °C ... 55 °C - high thermal stability
Tamper output
Yes - detection of enclosure opening and detachment from the surface
SOFTWARE
The manufacturer's dedicated software allows for full real-time module diagnostics. Thanks to the RS-485 interface, the system allows for remote firmware (flash) updates, which eliminates the need for physical replacement of integrated circuits. The user has the ability to precisely set input sensitivity and relay output logic, which allows for the creation of advanced automation and alarm scenarios. Programming is performed via the INTEGRA control panel using a computer with appropriate service software.
Contents
1x Input/output expander
1x Set of mounting accessories
1x Quick start guide
Dimensions, Weight
Product dimensions: 20 x 140 x 69 mm (D x W x H)
Packaging dimensions: 40 x 160 x 85 mm (D x W x H)
Product weight: 80 g
Weight with packaging: 120 g
