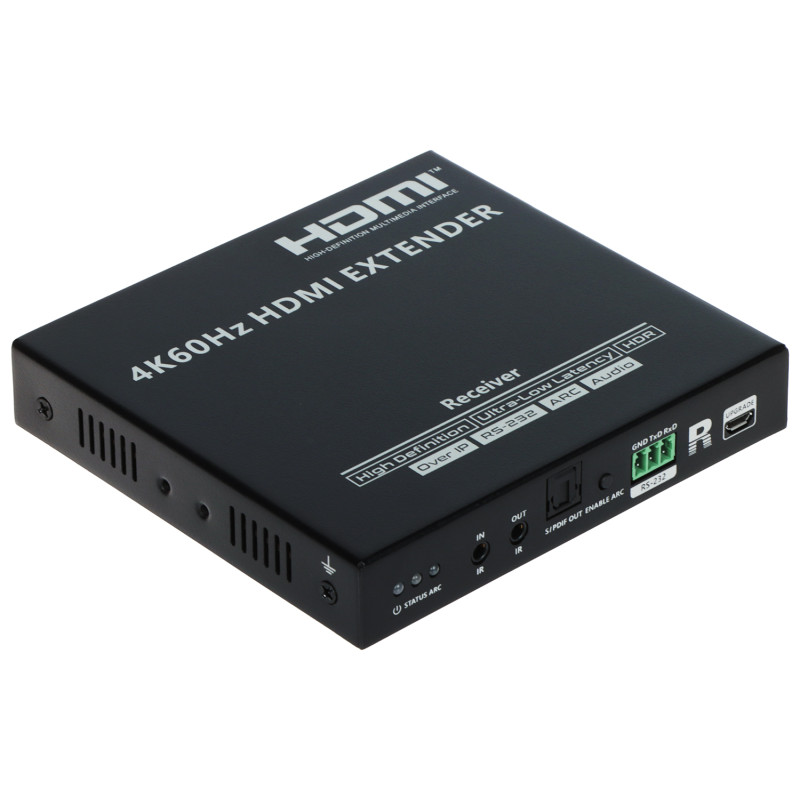

HDMI over IP Extender Receiver 4K 60Hz HDR RS-232 S/PDIF ARC 120m Range via RJ45 Cable CEC Delta Multimedia HDMI-EX-IP-4K-X1/RX
zł1,434.67
Tax included
The HDMI-EX-IP-4K-X1/RX extender receiver is an advanced technological solution that redefines how video and audio signals are transmitted over long distances. By utilizing modern twisted pair cabling (Category 5, 5e, 6, 6A, or 7), the device allows for the transmission of crystal-clear 4K UHD images at 60Hz. It is an ideal choice for demanding home installations and professional Digital Signage systems. The main advantage of the device is its immense flexibility – it can operate in a direct point-to-point connection as well as in complex network structures using switches, which enables the creation of cascaded connections. This makes the transmission range virtually unlimited within the network infrastructure.
The use of the ipcolor STREAM™ protocol guarantees minimal latency (only 16ms) and excellent color reproduction thanks to support for HDR10 and YUV444. An additional benefit is the support for the Audio Return Channel (ARC), which allows for simplified cabling in home theater systems. A robust design adapted for continuous 24/7 operation and built-in surge protection and ESD protection make this product a reliable component of any multimedia installation. The set also includes an infrared receiver, which enables remote control of the signal source from the location where the TV is placed. Installation aesthetics are significantly improved, as only one thin network cable needs to be routed to the receiver instead of a thick and rigid HDMI cable over a long distance.
HDMI over IP Extender Receiver 4K 60Hz HDR RS-232 S/PDIF ARC 120m Range via RJ45 Cable CEC
Model: Delta Multimedia HDMI-EX-IP-4K-X1/RX
EAN: 6931240029978 SKU: 931029978
- HDMI 4K UHD @ 60Hz signal transmission via a single twisted pair cable
- Support for modern HDMI 2.0 standard as well as HDR10 and YUV444
- Very low transmission latency - only 16 ms
- Transmission range up to 120 meters (Cat. 6) or 80 meters (Cat. 5e)
- Support for ARC audio return channel and CEC control
- Built-in additional ports: RS-232 for control and optical S/PDIF
- Capability to work in one-to-one and cascaded connections via a switch
- Surge protection and ESD electrostatic discharge protection
- Designed for continuous 24/7 trouble-free operation
- Set includes an IR receiver for controlling the signal source
Description
The HDMI-EX-IP-4K-X1/RX extender receiver is an advanced technological solution that redefines how video and audio signals are transmitted over long distances. By utilizing modern twisted pair cabling (Category 5, 5e, 6, 6A, or 7), the device allows for the transmission of crystal-clear 4K UHD images at 60Hz. It is an ideal choice for demanding home installations and professional Digital Signage systems. The main advantage of the device is its immense flexibility – it can operate in a direct point-to-point connection as well as in complex network structures using switches, which enables the creation of cascaded connections. This makes the transmission range virtually unlimited within the network infrastructure.
The use of the ipcolor STREAM™ protocol guarantees minimal latency (only 16ms) and excellent color reproduction thanks to support for HDR10 and YUV444. An additional benefit is the support for the Audio Return Channel (ARC), which allows for simplified cabling in home theater systems. A robust design adapted for continuous 24/7 operation and built-in surge protection and ESD protection make this product a reliable component of any multimedia installation. The set also includes an infrared receiver, which enables remote control of the signal source from the location where the TV is placed. Installation aesthetics are significantly improved, as only one thin network cable needs to be routed to the receiver instead of a thick and rigid HDMI cable over a long distance.
Specification
Device type
HDMI over IP Extender Receiver
Supported resolutions
4K UHD @ 24/25/30/50/60 Hz (3840x2160, 4096x2160), 1080p @ 24/25/50/60 Hz, 1920x1200, 720p @ 50/60 Hz, 1024x768
Transmission range
120 m - UTP Cat. 6, 6A, 7; 80 m - UTP Cat. 5, 5e
HDMI and HDCP standards
HDMI 2.0 (Deep Color, HDR10, YUV444); HDCP 1.4 / 2.2
Transmission protocols
ipcolor STREAM™
Data transmission parameters
Maximum bandwidth: 18 Gbps; Transmission latency: 16 ms
Audio support
LPCM 2.1CH, DTS, Dolby Digital 5.1CH, Dolby Atmos DD+; Optical S/PDIF output
Multimedia functions
HDMI ARC (Audio Return Channel) with dedicated button; CEC support
Interfaces and ports
1x HDMI output, 1x RJ45 (Ethernet), 1x S/PDIF output (optical), 1x IR receiver jack, 1x RS-232 port, 1x mini USB (firmware update)
Protections
Surge protection; ESD protection (IEC 61000-4-2): ±4kV contact, ±8kV air; Lightning protection
Power parameters
5V DC / 2A (power adapter included); Power consumption: ≤ 7.5 W
Environmental conditions
Operating temperature: -20 °C ... 50 °C; Humidity: 0 % ... 90 % (non-condensing)
Construction
Metal housing, dedicated for continuous 24/7 operation, RESET button
ipcolor STREAM™ software
The ipcolor STREAM™ technology is the heart of the device, representing an advanced software-hardware solution for transmitting high-resolution signals via IP protocols. This software implements intelligent video compression that allows for the preservation of near-lossless image quality while maintaining extremely low latency at the 16 ms level, which is crucial in interactive systems. The system manages packet transmission in such a way as to avoid frame loss even in congested local networks. Additionally, the software supports full HDR10 metadata handling, which allows for the display of images with a wide dynamic range. The device interface allows for easy firmware updates via the mini-USB port, ensuring compatibility with new formats and improving operational stability in the future. This technology also enables the transmission of CEC and RS-232 control signals in parallel with the video stream, allowing for full control over the display and signal source in a way that is completely transparent to the user.
Contents
1x HDMI-EX-IP-4K-X1/RX Receiver
1x 5V/2A power adapter
1x IR receiver
1x User manual
Dimensions, Weight
Product dimensions: 21 x 125 x 115 mm (D x W x H)
Packaging dimensions: 80 x 200 x 150 mm (D x W x H)
Product weight: 376 g
Weight with packaging: 682 g
