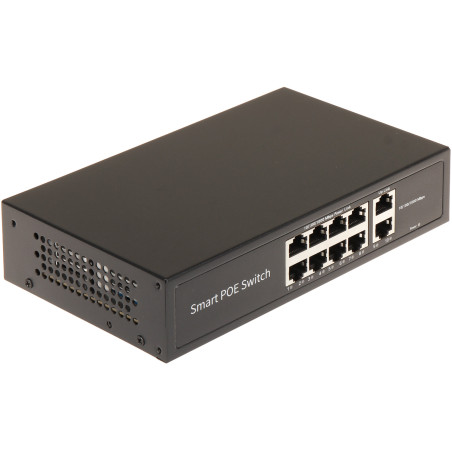

8-Port PoE Switch 10/100/1000 Mbps Uplink Gigabit Switch for IP CCTV LAN Desktop

Model: GTX - Grid Telecommunication eXpert GTX-C1-10-8G2G/X

EAN: 6931240072523 SKU: 931072522

• 8 LAN ports supporting PoE power supply (802.3af/at)
• 2 dedicated RJ45 Uplink ports for a stable connection to a recorder or router
• Full Gigabit speed 10/100/1000 Mbps on all ports
• High total PoE power budget of 120W
• Maximum power up to 30W per individual PoE port
• Durable, metal Desktop-type housing for longevity
• Auto MDI/MDI-X function - automatic data transmission mode detection
• Power priority mechanism support protecting critical devices
• Auto-learning and Auto-aging MAC address technology
• Wide operating temperature range from -25°C to 40°C
• Built-in LED indicators for power status and port activity
• Plug & Play standard - no configuration required

Description

The GTX-C1-10-8G2G/X PoE switch is a professional and highly reliable network device that serves as the perfect foundation for modern IP video surveillance systems. Thanks to the support for 8 LAN ports with Power over Ethernet (PoE) technology and 2 dedicated Uplink ports, the device allows for the creation of an efficient and stable infrastructure without the need to run additional power cabling to each camera. The switch fully supports 802.3af and 802.3at standards, which guarantees compatibility with a wide range of network devices.

Specification

Using this switch in an IP CCTV installation significantly increases the security and stability of the entire system. Built-in overload protection mechanisms and PoE port prioritization ensure the continuous operation of the most important cameras, even at the maximum power budget load of 120W. This is a solution that combines high-quality craftsmanship with the functionality required by security industry professionals.

A key advantage of the GTX-C1-10-8G2G/X model is its gigabit transmission speed on all ports, which eliminates any delays in transmitting high-resolution 4K and UHD video streams. The solid, metal Desktop-type housing provides excellent heat dissipation and high resistance to mechanical damage. The device operates in a wide temperature range, making it resistant to variable environmental conditions inside buildings. The Plug & Play function makes the switch ready for operation immediately after taking it out of the box, without requiring the installer to perform complex software configuration.

LAN Ports

8 x RJ45 (8 x PoE 802.3af/at), 2 x RJ45 - Uplink

Management

None (Unmanaged Switch)

LED indicators

Power, PoE, Uplink (status signaling)

Transmission speed

10 / 100 / 1000 Mbps : 8 x LAN & PoE Port + 2 x RJ-45 Port - Uplink

PoE standards

IEEE 802.3af, IEEE 802.3at

Maximum output power

30 W / PoE 802.3af/at port - Ports 1 ... 8

Maximum total power

120 W

MAC address table

2k (automatic refresh)

Software architecture and features

The built-in firmware provides fully automatic network traffic management and PoE power distribution. The port prioritization algorithm monitors power consumption in real-time, protecting the system from the effects of overloads – if there is a lack of power, the system cuts off power to lower-priority ports. The control logic supports Auto-learning and Auto-aging of MAC addresses, allowing for error-free packet routing on the local network. Implementation of Full Duplex (IEEE802.3x) and Half Duplex (Back Pressure) data flow control minimizes the risk of data frame loss. The Auto MDI/MDI-X detection function automatically adjusts the operating mode to the type of cable used, eliminating the need for crossover cables.

PoE power supply

Pins: +: 1, 2; -: 3, 6

Device power supply

230 V AC (Alternating current)

Housing

Desktop, made of metal, black

Operating temperature

-25 °C ... 40 °C

Certificates

CE, RoHS

Dimensions, Weight

Product dimensions: 118 x 200 x 44 mm (D x W x H)

Package dimensions: 185 x 235 x 70 mm (D x W x H)

Product weight: 700 g

Weight with packaging: 978 g
